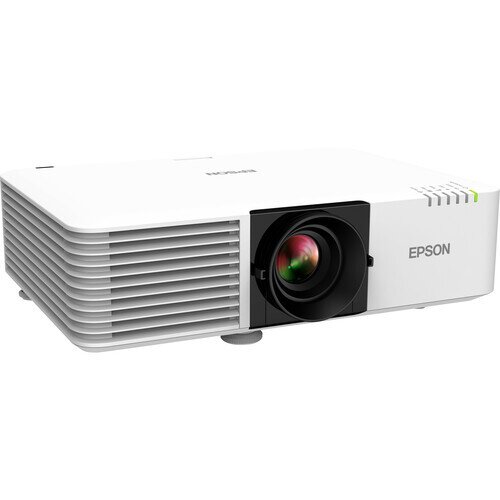

Epson PowerLite L630U Full HD WUXGA 3LCD Laser Projector
Epson PowerLite L630U Full HD WUXGA 3LCD Laser Projector Display Gallery Item 1
Epson PowerLite L630U Full HD WUXGA 3LCD Laser Projector - 2 Display Gallery Item 2
Epson PowerLite L630U Full HD WUXGA 3LCD Laser Projector - 3 Display Gallery Item 3
Epson PowerLite L630U Full HD WUXGA 3LCD Laser Projector - 4 Display Gallery Item 4
Epson PowerLite L630U Full HD WUXGA 3LCD Laser Projector - 5 Display Gallery Item 5

Epson PowerLite L630U Full HD WUXGA 3LCD Laser Projector - Shop Now!

By: Epson

Model: V11HA26020

Sku: L09774NT5F

Be the first to review this product

Sign up for price alert

Availability: Out of stock New

Availability: Out of stock

  • Up to 6,200 lumens of equal Color and White Brightness
  • Full HD WUXGA support; accepts 4K signal
  • Virtually maintenance-free 20,000-hour laser light source
  • Display from 50" to 500" diagonal (16:10) or ultra wide (16:6)
  • Built-in tools for simplified installation
  • Projection System RGB liquid crystal shutter projection system
  • Projection Method Front/rear/ceiling mount
  • LCD Size 0.67" (C2fine)
  • Driving Method Poly-Silicon TFT Active Matrix
  • Pixel Number 2,304,000 dots (1920 x 1200) x 3
  • Native Resolution 1920 x 1200 (WUXGA)
  • Resize 640 x 480, 800 x 600, 1280 x 1024, 1400 x 1050
  • Aspect Ratio Supports 4:3, 16:10, 16:9*, 16:6*, 21:9*
  • * With vertical image shift control within letterbox area
  • Pixel Arrangement Cross stripe
  • Color Brightness1 Color Light Output: 6,200 lumens
  • White Brightness1 White Light Output: 6,200 lumens
  • Contrast Ratio Up to 2,500,000:1
  • Brightness Uniformity (typical) 86%
  • Color Reproduction Up to 1.07 billion colors
  • Size (projected distance) 50" – 500"
  • Projected Distance 80" screen 2.33 – 3.78 m
  • Lens Shift Vertical: ±50%; horizontal: ±20%
  • Keystone Correction Vertical: ±30 degrees;
  • horizontal: ±30 degrees
  • Illumination Technology Laser Diode
  • Light Source Life2 Normal: 20,000 hours; Quiet: 20,000 hours;
  • Extended: 30,000 hours
  • Interfaces: HDMI (HDCP 2.3) x 2, HDMI Out, VGA x 2, Monitor Out: Mini D-Sub 15-pin, HDBaseT, Audio in: Mini Stereo x 2, Variable Audio Out: Mini Stereo, USB Connector Type-A, USB Connector Type-B, Serial: RS-232c, Wired LAN RJ-45, Wireless LAN Built-in
  • Operating Temperature 32 ˚F to 113 ˚F (0 ˚C to 45 ˚C)
  • Power Supply Voltage 100 V – 240 V ±10%, 50/60 Hz AC
  • Auto Power On Signal Detection on HDMI®/Plug-in Detection
  • (HDMI, USB, VGA 15-pin, BNC)
  • Sleep Mode Yes (with timer)
  • HDMI CEC Control Yes
  • Power Consumption 358 W (Normal Mode) 267 W (Quiet and Extended) 2.0 W Standby (Communication on) 0.3 W Standby (Communication off) Fan Noise 38 dB (Normal Mode); max. 27 dB (ECO Mode)
  • Pixel Clock 13.5 MHz – 162 MHz (up to UXGA 60 Hz)
  • Horizontal 15 kHz – 92 kHz
  • Vertical 50 Hz – 85 Hz
Stock Request Notify When Available
  • Add to Wishlist
  • Add to Compare

The ultra bright Full HD WUXGA projector for classrooms, meetings and more.

Share bright, easy-to-read displays for meetings, lectures and more with the PowerLite L630U laser projector. Offering an incredible 6,200 lumens of brightness1, the PowerLite L630U enhances spaces with vibrant, true-to-life, Full HD WUXGA images. Ideal for business, education and beyond, this versatile projector displays up to 500" and provides an array of features for engaging, impactful experiences, including integrated wireless networking and Miracast for easy sharing from laptops and smart devices2. A convenient, easy-to-use solution, the PowerLite L630U features a virtually maintenance-free 20,000-hour laser light source3, plus a variety of built-in tools, lens shift and advanced software for easy, streamlined installation.

True-to-life images

With 3-chip 3LCD technology and 6,200 lumens of color and white brightness

Full HD WUXGA support

Native WUXGA 1920 x 1200 resolution for vibrant, high-definition images; accepts 4K signal

Breakthrough laser technology

Features a virtually maintenance-free 20,000-hour laser light source

Large, ultra wide display

Display images up to 500" diagonal either in standard 16:10 and 16:9 or in ultra wide 16:6 and 21:9 for immersive video conferencing and more

Convenient placement

Easy installation and flexible placement with horizontal and vertical lens shift

Integrated wireless networking with enterprise-level security

Additionally, you can connect with Miracast, which supports software-free, peer-to-peer wireless connectivity; screen sharing for remote collaboration

In the Box

  • Epson PowerLite L630U Full HD WUXGA 3LCD Laser Projector
  • Remote Control with Batteries
  • HDMI Cable
  • Cable Cover
  • Power Cable
