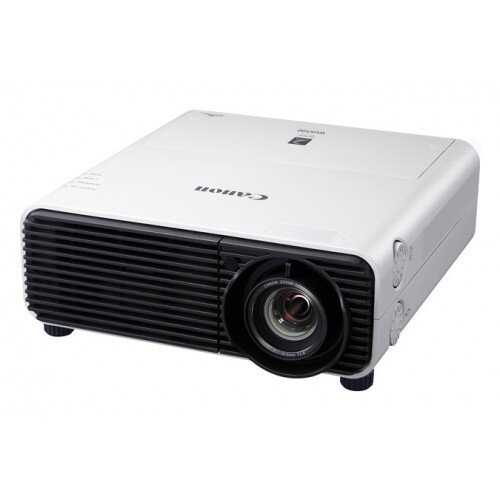

The REALiS WUX500 Pro AV Compact Installation LCOS Projector delivers high performance WUXGA (1920 x 1200) resolution with 5000 lumens of brightness and up to a 2000:1 contrast ratio. These features combined with an advanced Genuine Canon projection lens and Canon's proprietary LCOS technology with AISYS-enhancement helps to produce crisp, bright images with exceptional color reproduction.
Along with this high brightness and high resolution, this model Includes a DICOM Simulation Mode for the display of monochrome digital X-rays, CAT scans, and MRI's with accurate color and precise detail. This special mode simulates the results of devices compliant with the Digital Imaging and Communications in Medicine (DICOM) Part 14 standard. For added flexibility, within this mode users can select from either blue or clear base and can further adjust the color temperature according to their individual preferences. With the WUX500 D in the Picture by Picture mode it is possible to view two inputs side by side with one input set to DICOM simulation mode and another input set to a different mode. This allows for a variety of teaching combinations.
The advanced optical system on the WUX5000 D allows the projector to virtually maintain a constant level of brightness throughout its 1.8x zoom range – a unique feature that provides both flexible projector placement and value by eliminating the need to over-specify a higher lumen projector for longer throw applications.
The WUX500 D is HDBaseT compatible and is equipped with many leading industry interfaces including HDMI, DVI-I, USB, RJ-45, and RS-232C. Built-in network management is possible via PJLink, and compatibility with Crestron & AMX systems ensure the REALiS WUX500 D will seamlessly integrate into virtually any system infrastructure.
Other key functions include 4-Point Keystone Correction, built-in Edge Blending, PC-Free Multi Projection (JPEG only), Vertical Lens Shift (0-60%), Network Multi Projection (NMPJ) over WiFi, PC-Free Presentations, and other features enabling installation versatility, advanced image adjustments and professional calibration settings.
Users will also enjoy greater installation flexibility thanks to its compact size and weight (13 lbs.) and variety of mounting options. A 12,000 hour life filter simplifies maintenance, and low power consumption makes the Canon REALiS WUX500 D the perfect partner for those in the medical education and training fields. This mode can also be utilized in other specialized applications like black and white photography where an expanded range of gamma adjustment is required.
This projector offers a DICOM Simulation Mode to simulate the results of devices compliant with the Digital Imaging and Communications in Medicine (DICOM) Part 14 standardized display function for display of grayscale images. The DICOM Simulation Mode adjusts the gradation between the minimum and the maximum luminance so gradation is distributed optimally. This feature is optimized for displaying medical images such as X-rays, CAT scans and MRIs, which makes this projector ideal for non-diagnostic purposes such as lectures, academic meetings and in-hospital conferences. This feature is recommended for use in medical schools for training and educational use only.
This projector projects bright 5000 lumen* images with up to a 2000:1 contrast ratio that helps ensure deep blacks, bright whites and outstanding color. The results are images with crisp depth and dimension, and amazing color accuracy, which is critical to those with discerning needs.
Canon's WUXGA resolution brings bright, true widescreen display of intricately detailed HD video content and still images with outstanding color richness to large-room installations in high resolution WUXGA (1920 x 1200) at a competitive price. Content is projected without compression. Widescreen graphics, text and other visual content from laptops and desktop computers are shown in accurate proportions, just as it appears on most monitor screens.
The exceptional imaging performance of this projector starts with Canon's proprietary AISYS (Aspectual Illumination System) Optical Engine, which utilizes advanced light management technology to maximize the contrast and brightness benefits of the projector's LCOS (Liquid Crystal on Silicon) display panels, which deliver superior reflectivity and durability while accomplishing high luminance. The result is highly detailed, seamless, ultra-sharp image projection in virtually any environment.
