Grab DJI Spreading Wings S900 + WooKong-M + Zenmuse Z15-A7 Hexacopter

By: DJI

Model: CB.SB.000043

Sku: H2DN51U47M

Availability: Out of stock New

Availability: Out of stock

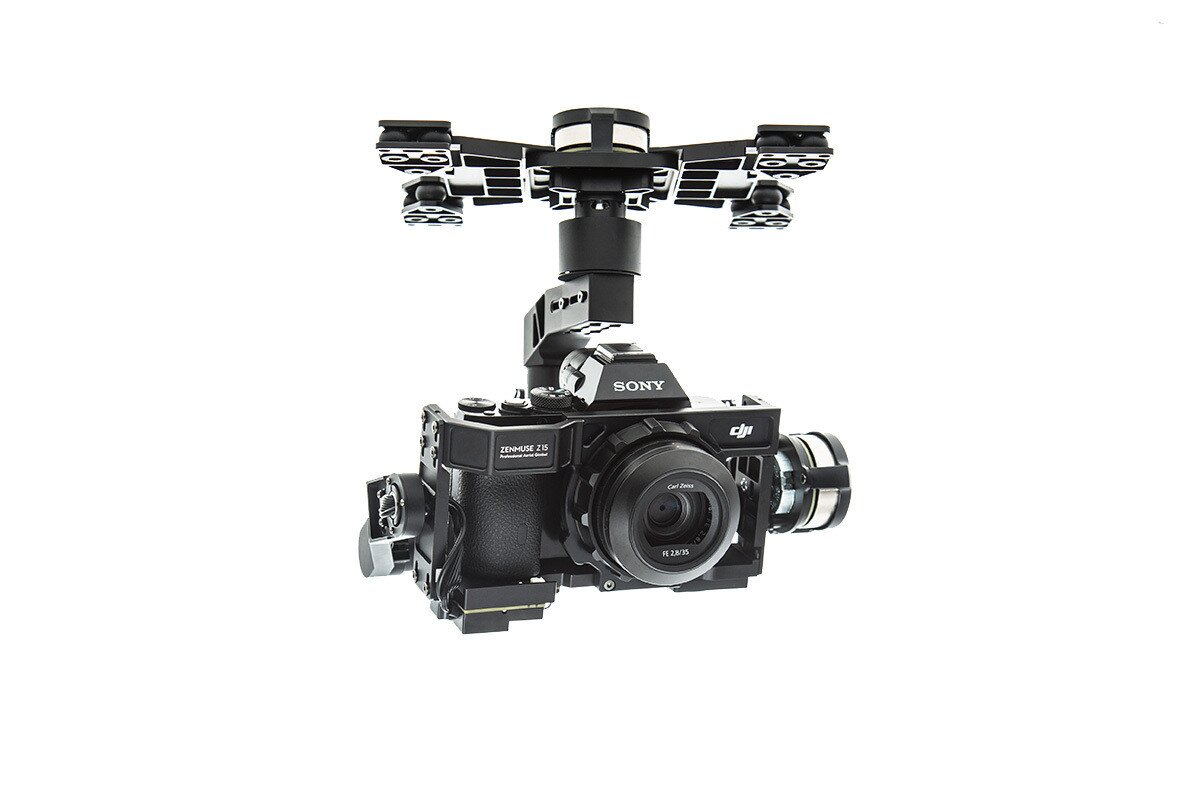

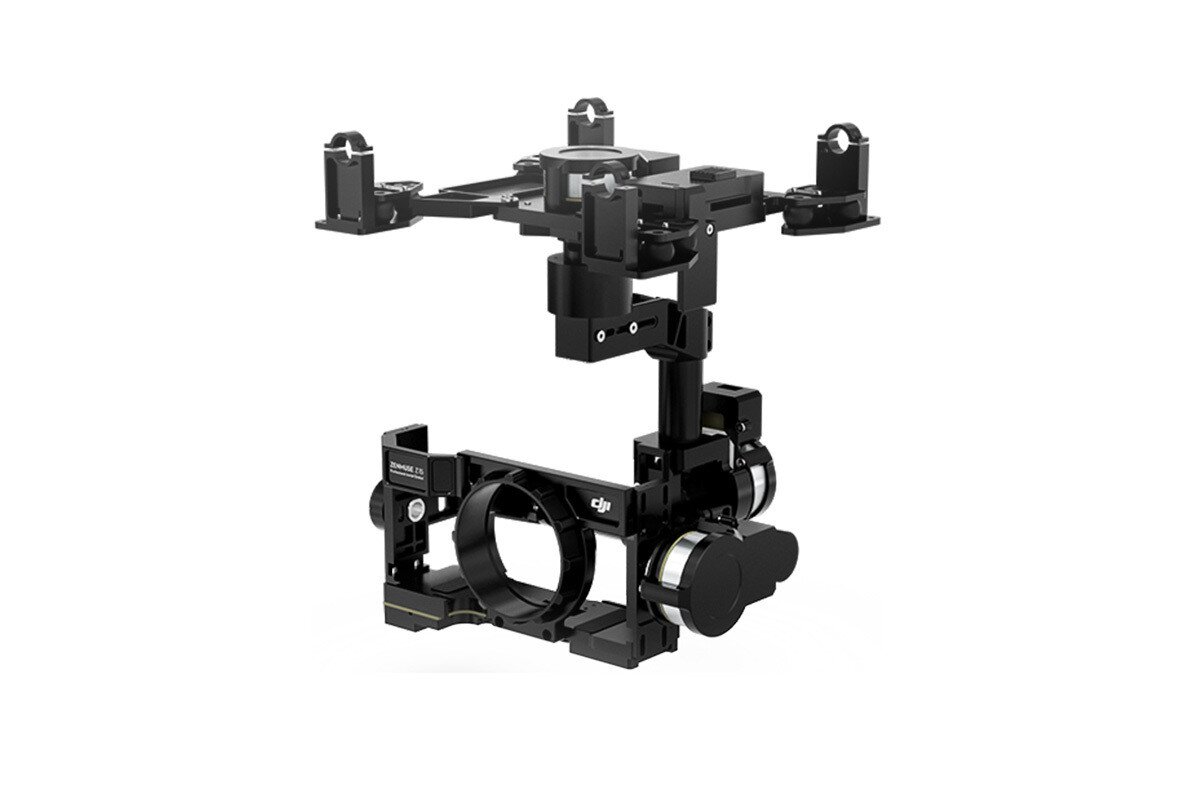

  • Zenmuse Z15-A7 Gimbal for Sony a7S / a7R
  • Gimbal Provides 360° Camera Rotation
  • Collapsible Frame and Folding Props
  • Up to 18 Pound Total Take-Off Weight
Stock Request Notify When Available
  • Add to Wishlist
  • Add to Compare

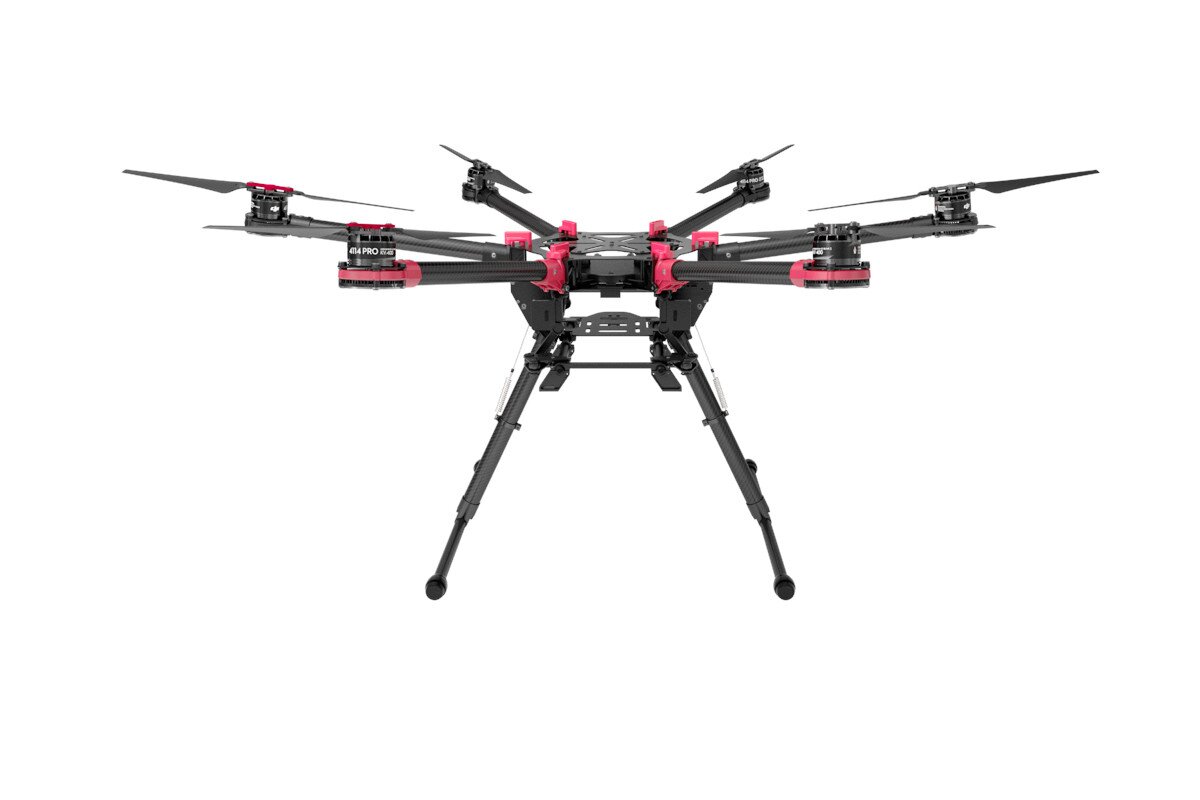

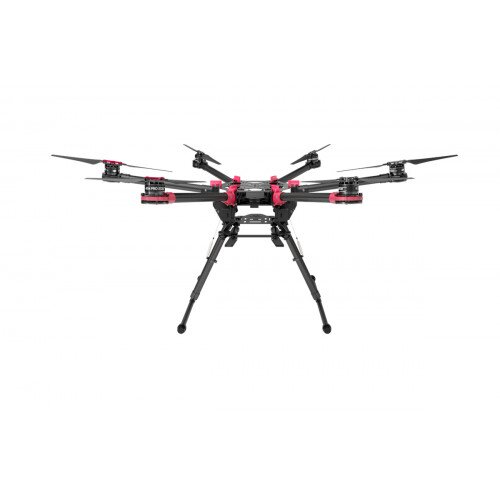

Supporting a total takeoff weight of 18 pounds, the Spreading Wings S900 with Zenmuse Z15-A7C Gimbal is a hexcopter from DJI that allows you to capture aerial video using a separately available Sony a7S or a7R mirrorless camera with the Sony FE 35 mm f/2.8 ZA lens. It features carbon fiber frame arms to cut down on weight, which fold down for storage and transport. The included Z15-A7 gimbal helps keep the camera stabilized and isolated from vibration, and allows you to pan, tilt, and even cant the camera for more dynamic shots. Used with a 6S 12000mAh battery, available separately, the S900 can fly for up to 18 minutes fully laden.

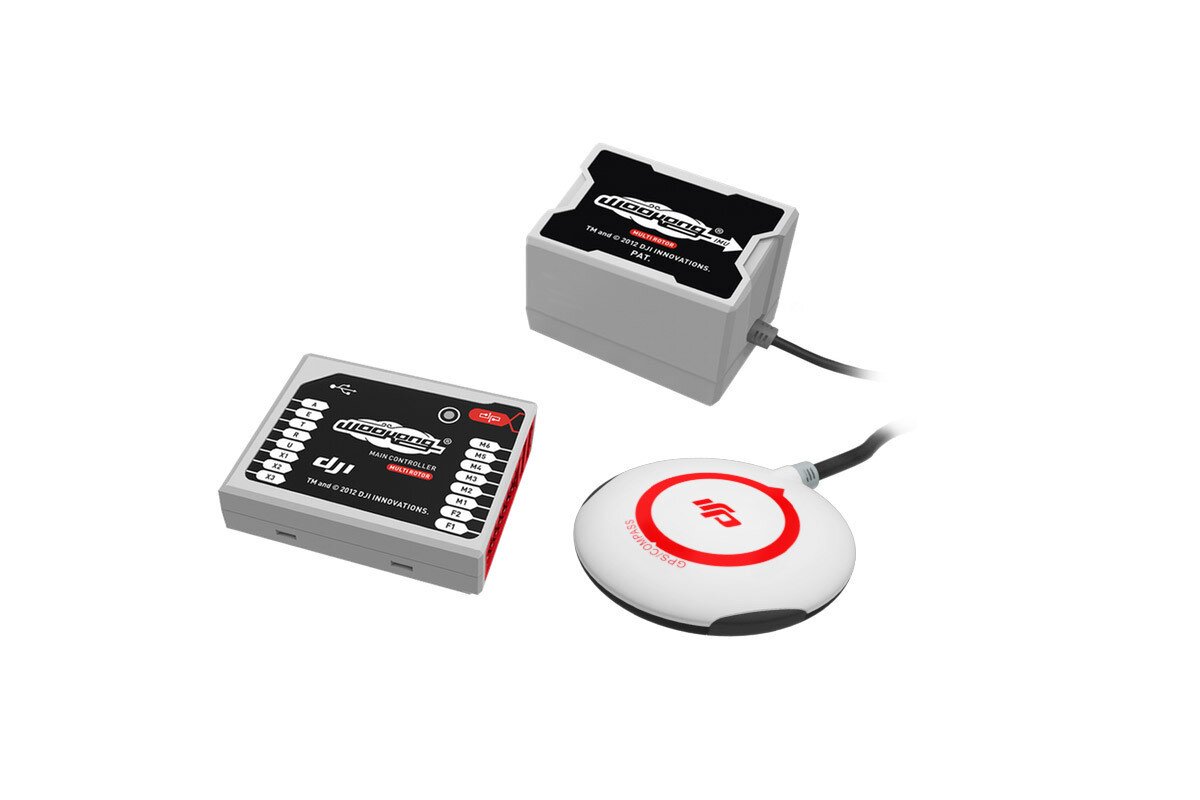

This version of the S900 features the DJI WooKong-M flight control system, a collection of hardware which acts as the hexcopter's brains. It takes data from the GPS, gyros, barometer, and other sensors while applying any pilot inputs to help ensure stable flying and smooth video. The WooKong-M can be configured for different flying styles and pilot skill levels, with features like Intelligent Orientation Control (IOC), Point of Interest (POI), one motor fail protection, and a Return-to-Home fail safe in the event contact is lost with the transmitter.

The S900 is not a ready-to-fly (RTF) aircraft. It does require some assembly and a transmitter (hand-held radio controller) and batteries are not included. Transmitters the WooKong-M supports include ma wide range PCM or 2.4 GHz models that have at least 7 channels. For power, it uses LiPo flight batteries in 6S configuration, with a 10,000 to 15,000 mAh capacity, and requires a discharge rate of at least 15C.

In the Box

  • DJI Spreading Wings S900 Hexacopter
  • Frame Arms x 6
  • Landing Skid Tubes x 2 (with Silicone Rubber Dampers)
  • Landing Gear Legs x 2
  • GPS Collapsible Mount
  • Springs x 2
  • Connector Set
  • 3-PIN Connection Cables x 8
  • CW propellers x 2
  • CCW propellers x 2
  • Magic tapes x 4
  • The red knobs x 6
  • Landing gear leg rings x 4
  • Soft dampers x 50
  • For frame arms mount: M4x35
  • For landing gear mount: M3x8, M2.5x8 (socket cap), M3x22 (socket cap)
  • DJI WooKong-M Flight Control System for Multi-Rotor UAVs
  • MC for WooKong-M Flight Control System
  • GPS/Compass Module for WooKong-M Flight Control System
  • PMU for WooKong-M Flight Control System
  • IMU for WooKong-M Flight Control System
  • LED Indicator for WooKong-M Flight Control System
  • GPS Bracket for WooKong-M Flight Control System
  • Gimbal
  • Gimbal Controller Unit (GCU)
  • Mounting Bracket × 4
  • Mounting Board for Receiver
  • Camera Mounting Screw
  • Screw Package
  • 10-Pin to 9-Pin Cable × 2
  • 7-Pin Cable
  • 8-Pin to 6-Pin Cable × 2
  • Servo Cable Package
  • AV Video Power Cable
  • iOSD Mark II Cable
  • Micro-USB Cable
  • CAN-Bus Cable
  • Spare Package
