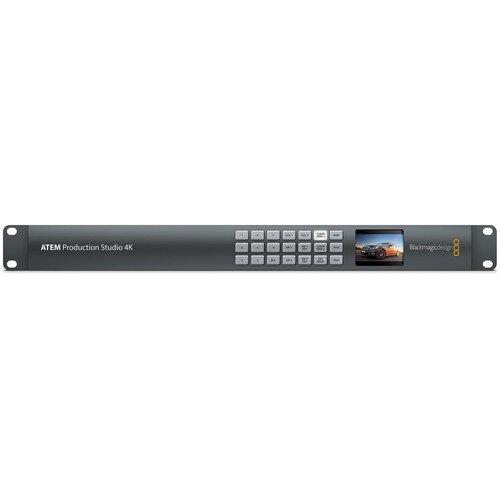

Blackmagic Design Atem Production Studio 4K Live Switcher
Blackmagic Design Atem Production Studio 4K Live Switcher Display Gallery Item 1
Blackmagic Design Atem Production Studio 4K Live Switcher - 2 Display Gallery Item 2
Blackmagic Design Atem Production Studio 4K Live Switcher - 3 Display Gallery Item 3

Blackmagic Design Atem Production Studio 4K Live Switcher Price in Pakistan

By: Blackmagic Design

Model: SWATEMPSW04K

Sku: WTIAIQO80Z

Be the first to review this product

Sign up for price alert

Availability: Out of stock New

Availability: Out of stock

  • Connections: Total Video Inputs8
  • Total Video Outputs: 6
  • SDI Rates: 270Mb, 1.5G, 3G, 6G.
  • Total Audio Inputs: 2 x XLR. 2 x RCA.
  • HDMI Program Outputs: 1 x HDMI type A, 10-bit SD/HD/Ultra HD 4K switchable
  • SDI Video Inputs: 4 x 10-bit SD/HD/Ultra HD 4K switchable. 2 channel embedded audio
  • HDMI Video Inputs: 4 x HDMI type A, 10-bit SD/HD/Ultra HD 4K switchable. 2 channel embedded audio
  • SDI Audio Outputs: 2 channel embedded into SDI output
  • Reference Input: Tri-Sync or Black Burst.
  • HD Video Standards: 720p50, 720p59.941080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p50, 1080p59.941080i50, 1080i59.94
  • HDMI Input Resolutions for Computers: 720 x 480i 59.97Hz, 720 x 576i 50Hz, 1280 x 720 59.94Hz, 1280 x 720 50Hz and 1920 x 1080 59.94Hz, 1920 x 1080 50Hz, 3840 x 2160 23.98Hz, 3840 x 2160 24Hz, 3840 x 2160 25Hz, 3840 x 2160 29.97Hz.
  • Ultra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97
  • Upstream Keyers: 1 with Chroma/Linear/Luma key
  • Media Players: 2
  • Multi View Monitoring: 1 x 10 Views
  • Interface: Minimum monitor resolution of 1366 x 768
  • Control Panel Included: ATEM Software Control Panel included free for Mac 10.10 Yosemite, Mac 10.11 El Capitan or later and Windows 8.1 64-bit or Windows 10 64-bit
  • Operating Systems: Mac 10.14 Mojave,Mac 10.15 Catalina or later Windows 8.1 or Windows 10.
  • Power Supply: 1 x Internal 100 - 240V AC.
Stock Request Notify When Available

ATEM Production Studio 4K lets you connect up to 8 SD, HD or Ultra HD 4K video cameras, disk recorders and computers to do true broadcast quality work. You get all the features you expect from a professional switcher including chroma key, transitions, media pool, downstream keyers, audio mixer, multi view and the world's first 6G-SDI and HDMI 4K video connections.

In the Box

  • Blackmagic Design Atem Production Studio 4K Live Switcher
  • Software SD Card
