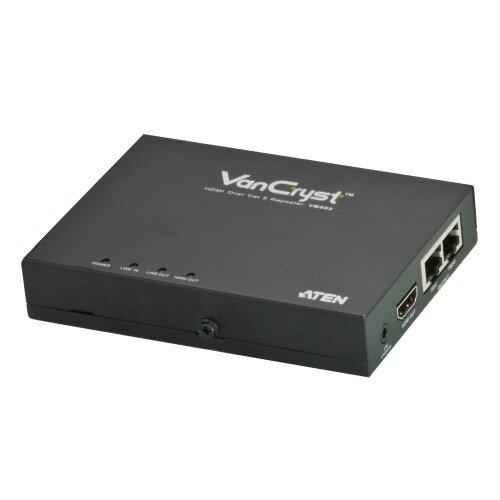

ATEN HDMI Cat 5 Repeater (1080p 40m)
ATEN HDMI Cat 5 Repeater (1080p 40m) Display Gallery Item 1
ATEN HDMI Cat 5 Repeater (1080p 40m) - 2 Display Gallery Item 2
ATEN HDMI Cat 5 Repeater (1080p 40m) - 3 Display Gallery Item 3

ATEN HDMI Cat 5 Repeater (1080p 40m) Price in Pakistan

By: ATEN

Model: VB802

Sku: C7M6B7LM60

Be the first to review this product

Sign up for price alert

Availability: Out of stock New

Availability: Out of stock

  • Uses two Cat 5e/6 cables to extend HDMI signal
  • Long distance transmission – up to 200 feet (60 m)
  • Provides the quickest and most efficient way to move multimedia content from Transmitter to Receiver
  • Offers local HDMI output
  • HDMI and HDCP compatible
  • HDMI (3D)
  • 8-level EQ adjustment to improve image quality
  • Cascadable to five levels*
  • Superior video quality – HDTV resolutions of 480p, 720p, 1080i and 1080p (1920 x 1080)
  • * Signal quality depends on cables. We recommend STP Cat 5e/6 cables or ATEN low skew cable (Part No. 2L-2801)
  • Video Output:
  • Interfaces: 1 x HDMI Type A Female (Black), 2 x RJ-45 Female
  • Impedance: 100 Ω
  • Video:
  • Max. Data Rate: 6.75 Gbps (2.25 Gbps Per Lane)
  • Max. Bandwidth: 225 MHz
  • Compliance: HDMI (3D, Deep Color), HDCP Compatible
  • Max. Resolutions / Distance: Up to 1080p@40m; 1080i@60m
  • Audio Outputs: Interfaces: 1 x HDMI Type A Female (Black)
  • Connectors: Power: 1 x DC Jack (Black)
  • Power Consumption: DC5V:12.28W:58BTU
  • Environmental:
  • Operating Temperature: 0 - 50°C
  • Storage Temperature: -20 - 60°C
  • Humidity: 0 - 80% RH, Non-Condensing
  • Physical Properties: Housing: Metal
  • Carton Lot: 20 pcs
Stock Request Notify When Available
  • Add to Wishlist
  • Add to Compare

The VB802 HDMI Over Cat 5e/6 Repeater is an HDMI signal extension device which is compatible with ATEN HDMI Over Cat 5e/6 Splitters or Extender. The VB802 extends the transmission range an extra 200 feet (60m) over two Cat 5e/6 cables. The use of an additional repeater means the HDMI signals can be transmitted over even longer distances.

In the Box

  • ATEN HDMI Cat 5 Repeater (1080p 40m)
  • Power Adapter
  • Mounting Kit
  • User Instructions
