Arduino Tinkerkit Braccio Robot Price in Pakistan

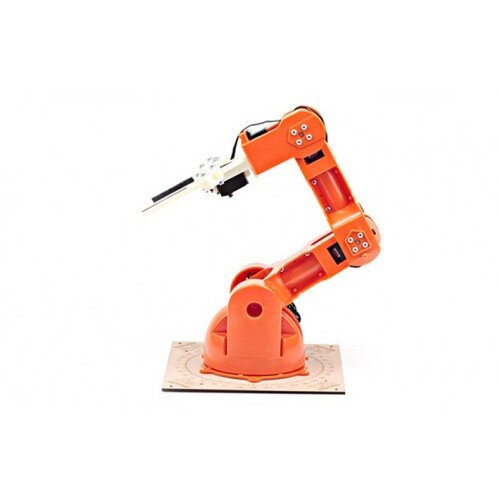

The TinkerKit Braccio is a fully operational robotic arm, controlled via Arduino. It can be assembled in several ways for multiple tasks such as moving objects. You can also attach a camera or solar panel. There are so many ways in which the Braccio can extend the reach of your devices. Please note: Arduino Board not included

Fully assembled Braccio Kit:

• Maximum operating distance range: 80 cm
• Maximum Height: 52 cm
• Base Width: 14 cm
• Gripper Width: 90 mm
• Cable length: 40 cm
• Load Capacity: Maximum weight at 32 cm operating distance: 150 g, Maximum weight at the minimal Braccio configuration: 400g

Braccio Shield: The maximum length and width of the Braccio Shield PCB are 2.7 and 2.1 inches respectively, with the power jack extending beyond the former dimension. Four screw holes allow the board to be attached to a surface or case. Note that the distance between digital pins 7 and 8 is 160 mil (0.16"), not an even multiple of the 100 mil spacing of the other pins.

Servo Technical Specification

• Control Signal: PWM Analog
• Torque: 4.8V: 169.5 oz-in (12.2 kg-cm), 6.0V: 201.4 oz-in (14.5 kg-cm)
• Speed: 4.8V: 0.20 sec/60°, 6.0V: 0.18 sec/60°
• Rotation Support: Dual Bearings
• Gear Material: Metal
• Rotation Range: 180°
• Connector Type: J (aka Futaba)
• SpringRC SR311
• Speed: 4.8V: 0.14 sec/60°, 6.0V: 0.12 sec/60°
• Gear Material: Metal

In the Box

• Arduino Tinkerkit Braccio Robot
