THINKWARE Multiplexer Bundle with 3 Exterior IR Infrared Camera for Up to 5 Channel Recording
THINKWARE Multiplexer Bundle with 3 Exterior IR Infrared Camera for Up to 5 Channel Recording Display Gallery Item 1

Grab THINKWARE Multiplexer Bundle with 3 Exterior IR Infrared Camera for Up to 5 Channel Recording

By: THINKWARE

Model: MB(1)-NEXT(2)-NIFR(1)-F200PROC

Sku: QEF4G6I1CK

Be the first to review this product

Sign up for price alert

PKR 119,799

& FREE Standard Delivery

Availability: In Stock In Stock

New

  • Multiplexer Box
  • Key: piano code switch composite screen can be configured according to switch combination
  • Power Source: 2 (BAT, GND) DC 12 V ~ 24 V Cable length: 3 m
  • AV-IN (For optional camera connection): 4 cables (CAM 1, CAM 2, CAM 3, CAM 4) 2.5 pi Stereo-jack type AFHD Cable length to connecting connector: 15 cm
  • AV-OUT(For front camera connection): 1 cable (AV-OUT) 2.5 pi Stereo-jack type For front camera connection Cable length: 3 m
  • Recording Channel: Up to 4 Analog Full HD cameras can be input (total 5CH)
  • Composite Video: Full HD (1920 x 1080) @ 30 fps
  • Storage Temperature: -20°~ 70°C (-4°~ 158°F)
  • Operating Temperature: -10°~ 60°C (14°~ 140°F)
  • Exterior Side View Camera
  • Resolution: Full HD (1920 x 1080)
  • Camera: 2.12 MP Pixelplus
  • Frame Rate: 30 fps
  • Viewing Angle: 129° (Diagonal)
  • Input power source: DC 5 V
  • Current Consumption: 140 mA
  • Cable Length: 1.5 + 3.0 m (4.9 + 9.8 ft)
  • Storage Temperature: -20°~ 70°C (-4°~ 158°F)
  • Operating Temperature: -10°~ 60°C (14°~ 140°F)
  • Certifications: KC, CE, FCC, IC, RoHS, WEEE and VCCI
  • Interior Infrared Camera
  • Resolution: Full HD (1920 x 1080)
  • Camera: 2.12 MP Pixelplus
  • IR Wavelength: 940 nm
  • Frame Rate: 30 fps
  • Viewing Angle: 160° (Diagonal)
  • Current Consumption: 208 mA (IR ON), 166 mA (IR OFF)
  • Cable Length: 50 cm (1.6 ft)
  • Storage Temperature: -20°~ 70°C (-4°~ 158°F)
  • Operating Temperature: -10°~ 60°C (14°~ 140°F)
Quantity:
  • Add to Wishlist
  • Add to Compare

NOTE: The Multiplexer Bundle can ONLY be used as an add-on accessory to a compatible Thinkware Dash Cam. The Multiplexer Bundle by itself cannot be used to record driving footage.

Compatible dash cams: F200 PRO, F790, X800 and X700

Multiplexer Box

Get total coverage by transforming your Thinkware Dash Cam into a multi-channel surveillance system with the Multiplexer Box accessory.

Multichannel Dash Cam (Up to 5 channels)

Customize your Thinkware setup to your surveillance needs thanks to the modular design of the multiplexer which allows you to add a combination of side, interior, and rear views to the main forward-facing dash cam.

Ideal for fleets and rideshare drivers

Get the whole picture and protect your investment against potential fraudulent claims. Adding additional cameras with the Multiplexer will ensure that all details are captured from different angles for a complete and accurate description of the vehicle incident.

Full HD Video Quality

All additional cameras record in Full HD 1080p video quality to capture small details with clarity.

Convenient Video File Storage

To maximize file storage space and make file lacation convenient, recordings from the additional cameras are merged together and saved into one video file while recordings from the main dash cam unit are saved separately.

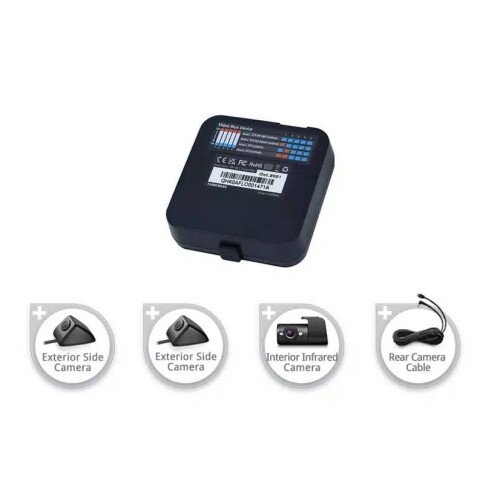

In the Box

  • Multiplexer Box (TWA-MB100)
  • 2 of Exterior Side Camera (TWA-NEXTS)
  • Interior Infrared Camera (TWA-NIFR)
  • Rear Camera Cable – F200 PRO (TWAB-F200PROCAB)
