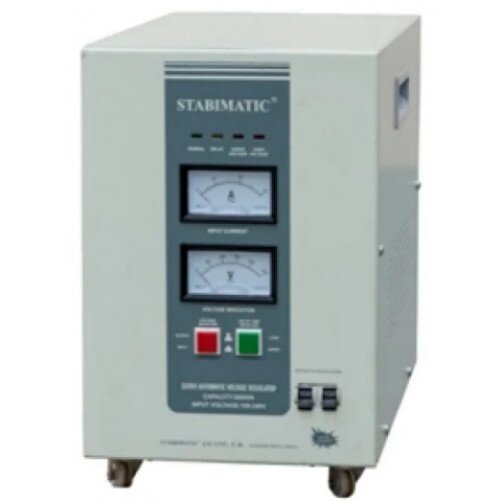

Stabimatic SP-15KVA Automatic Voltage Regulator
Stabimatic SP-15KVA Automatic Voltage Regulator Display Gallery Item 1

Stabimatic SP-15KVA Automatic Voltage Regulator Price in Pakistan

By: Stabimatic

Model: SP-15KVA

Sku: 2TQ452KNF5

Be the first to review this product

Sign up for price alert

Availability: Out of stock New

Availability: Out of stock

  • Input Voltage: 100 VAC to 140 AVC
  • Output Voltage: 220V ± 0 to 2 %
  • Phase: Single-phase
  • Response time: Within 0.5 sec. against 10% input voltage deviation.
  • Frequency: 50Hz/60Hz
  • Efficiency: 90% (input voltage 180V, output voltage 220V and rated load) 50% (input voltage 100V, output voltage 220V and rated load)
  • Power Factor: Better than 95% (input voltage 180V, output voltage 220V and at rated load)
  • Ambient Temperature: -5 o C ~ 40 O C
  • Ambient Humidity: Less than 90% (relative humidity)
  • Temperature Rise: Less than 75% O C (Input 180V, output voltage 220V)
  • Cooling System: Convection-cooled (Model 3kVA~10kVA Air blast)
  • Control System: DC servo-motor
  • Style: Stand-alone style, model above 3KVA with Wheels
  • Insulation Resistance: More than 3 M Ohm, at DC 500V
  • Dielectric Strength: Tested at AC 1500V for 1 min.
  • Delay Timer : Short 5 sec, Long (5min ± 2) Selectable
  • Indicators : 4 LED indicators for DELAY, Under Volt, normal & Over Volt
Stock Request Notify When Available
  • Add to Wishlist
  • Add to Compare
SKU 2TQ452KNF5
Brand Stabimatic
Model SP-15KVA
Condition New
Weight (lbs.) 102.5150
Manufacturer's Warranty 1 Year Limited Warranty
