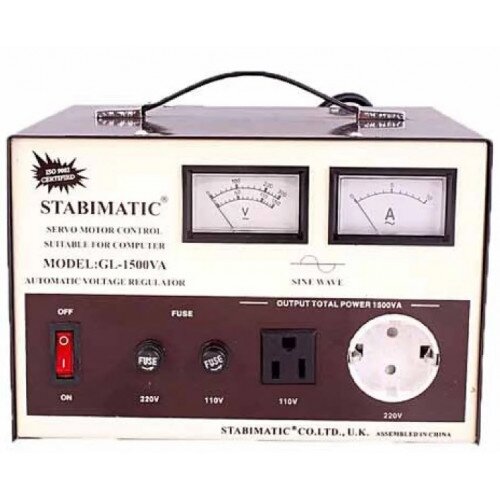

Stabimatic GL-1500C Automatic Voltage Regulator Price in Pakistan

Model: GL-1500C

Availability: Out of stock

Input Voltage: 65V~145 / 150V ~ 250V
Output Voltage: 110V?0 to 2%, 220V ? 0 to 2%
AMPS: 13.6 A / 6.8 A
Phase: Single-phase
Response time: Within 0.5 sec. against 10% input voltage deviation.
Frequency: 50Hz/60Hz
Efficiency: Better than 90% (input voltage 180V, output voltage 220V and at rated load)
Power Factor: Better than 95% (input voltage 180V, output voltage 220V and at rated load)
Ambient Temperature - 50C ~ + 400C
Ambient Humidity: Less than 90% (relative humidity)
Temperature Rise: Less than 750C (input 180V, output voltage 220V and at rated loaded
Cooling System: Convection-cooled (Model 3kVA~10kVA Air blast)
Control System: DC servo-motor
Style: Stand-alone style
Insulation Resistance: More than 3 MW at DC 500V
Dielectric Strength: Tested at AC 1500V for 1 min.
