Use your DIY remoldeling ideas to automate your home
Engineered to make home appliances smart, ready to control your home from afar

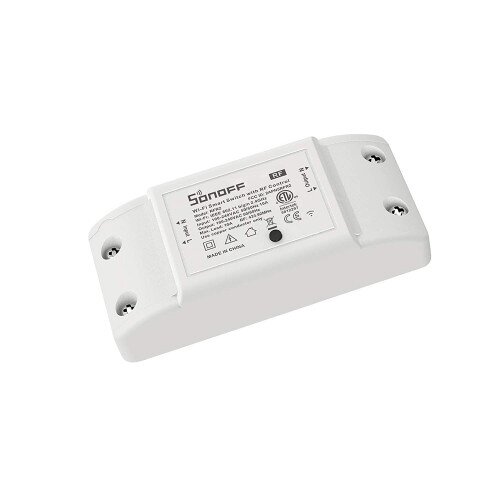

It’s been 5 years since SONOFF released the first DIY switch SONOFF BASIC in late 2015. During the past years, we keep upgrading our design to meet the critical regulatory requirements, to offer higher value to the users.
To guarantee the reliability of product quality, 30N pull-push effort is applied to BASICR2, and there is no damage nor movement of the actuating members.
To prevent the device from potential safety hazard caused by occasionally excessive humidity weather. After 48 hours humidity test (Relative humidity: 95%, Temperature: 25°C), the device can work normally.
Keep a great durability and reliability in harsh environments. It can continuously work for 4hrs at 60℃ & 24hrs at -10℃ at the 10A of rated load.
The creepage clearance of all positions is greater than 3mm, while US regulation requires 2mm and EU regulation requires 2.5mm. This can ensure the feasibility of using BASICR2 in various environments, prevent sparking from high humidity environment.
Our product provides adequate protection against accidental contact with live parts in all unfavorable positions of normal use. Ensure the user’s safety in installation and use.
To obtain high heat-resistance and dimensional stability, we adopt LexanTM PC940 resin for the enclosure. This material offers UL-94 V0 flammability rating and good dimensional stability which meets the standard IEC60695-10-2 of ball pressure test at 125℃（257℉）.
The structure strictly controls the requirements of insulation, micro disconnection, and installation test to ensure the reliability and safety of the product structure.
Even the product fuse, we also added a heat shrinkable sleeve to ensure better electrical insulation.
Organize SONOFF smart devices into a group for unified control with a single tap on your smartphone.
Worry that your drowsiness goes away when you go out of bed to turn off the light? You do it without moving to the front of switch with the help of SONOFF RM433 remote controller.
