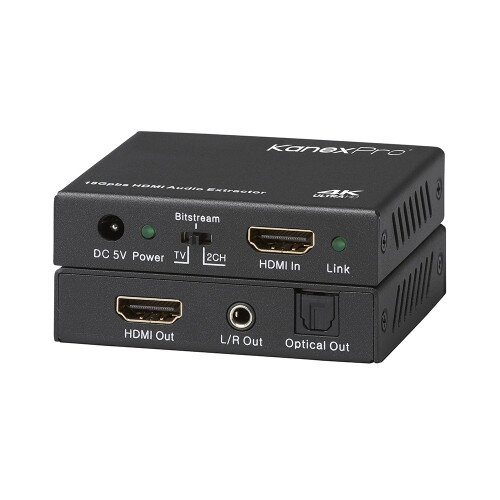

KanexPro 18Gbps 4K HDMI Audio Extractor with Dolby Atmos
KanexPro 18Gbps 4K HDMI Audio Extractor with Dolby Atmos Display Gallery Item 1

KanexPro 18Gbps 4K HDMI Audio Extractor with Dolby Atmos - Shop Now!

By: KanexPro

Model: HAECOAX3

Sku: YHAYBGNOWA

Be the first to review this product

Sign up for price alert

PKR 48,999

& FREE Standard Delivery

Availability: In Stock In Stock

New

  • 4K/60 HDMI Audio Extractor with Dolby Atmos
  • Select your bit-stream audio by switching instantly
  • 18 Gbps bandwidth with latest HDMI 2.0 Specs
  • Supports HDMI HBR (High Bit Rate) audio pass-through
  • Supports HDR 10(High Dynamic Range) pass-through for wide color gamut
  • Supports video resolutions up to 4K 24/30/50/60Hz (YUV4:4:4) & 1080p HD
  • De-embeds audio to multi-channel digital via TOSLINK / SPDIF or analog
  • HDCP 2.2 compliant
  • CEC- pass through
  • HDMI audio output: PCM 2, 5.1, 7.1, Dolby 5.1, DTS 5.1, D-True HD & DTS-HD
  • Supports uncompressed audio such as LPCM
  • Converts 2CH from 24-bit up to 192 kHz audio
  • Automatic input cable equalization
  • HDMI Compliance: HDMI 2.0a
  • HDCP compliance: HDCP 2.2 & HDCP 1.4
  • Video bandwidth: 18 Gbps
  • Supported Video Resolutions: 4K2K 50/60Hz(YUV4:4:4),4K2K 30Hz, 1080P 120Hz, and 1080P 3D 60Hz
  • Interlaced (50 60Hz): 480i, 576i, 1080i
  • Progressive (50 60Hz): 480, 576p, 720p, 1080p
  • Color Space: RGB, YCbCr 4:4:4, YCbCr 4:2:2
  • Color Depth: 10-bit, 12-bit
  • HDMI Audio Formats pass-thru: LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby True HD, DTS-HD Master Audio, Dolby Atmos, DTS:X
  • Optical Audio Formats: LPCM 2CH,LPCM 5.1,Dolby Digital 2/5.1CH, DTS2/5.1CH
  • L/R Audio Formats: Analog Stereo 2CH
  • Connectors: Input Connector: HDMI with pigtail (Male), Output Connector: HDMI (Female), TOSLINK (fiber optic), 3.5mm Stereo L/R
  • HDMI In: DTS-HD Master Audio, Dolby True HD, LPCM 7.1, DTS, Dolby-AC3 and 2.0CH 32KHz, 44.1KHz, 48KHz, 88.2KHz, 96KHz, 176.4KHz, 192KHz
  • HDMI Out: DTS-HD Master Audio, Dolby True HD, LPCM 7.1, DTS, Dolby-AC3 and 2.0CH 32KHz, 44.1KHz, 48KHz, 88.2KHz, 96KHz, 176.4KHz, 192KHz
  • TOSLINK Out : PCM and compressed audio formats up to 192 kHz (DTS, Dolby-AC3 and 2.0CH)
  • Headphone Out : 2.0 CH stereo audio
  • EDID Switch: Selects 2.0CH, 5.1 CH, TV EDID to source
  • Power Supply: Input: AC100 - 240V 50/60Hz, Output: DC 5V/1A (US/EU standards, CE/FCC/UL certified)
  • Power Consumption (Max): less than 1 Watt
  • Operating Temperature: 0°C to +70°C
  • Operating Humidity: -10% to 80% RH (No Condensation)
  • Storage Temperature: -20°C to +60°C
  • Storage Humidity: 5% to 90% RH (No Condensation)
  • ESD Protection : Human body model — ±8kV (air-gap discharge) & ±4kV (contact discharge)
  • Converter Unit: FCC,CE, UL
  • Power Supply: FCC,CE, UL
  • Housing: Metal Enclosure
Quantity:
  • Add to Wishlist
  • Add to Compare

Extract Digital & Stereo Audio from HDMI

The KanexPro HAECOAX3 is our 3rd gen. audio extractor designed with 18 Gbps of high bandwidth and supporting the latest HDMI 2.0 specifications. This audio extractor will de-embed HDMI audio streams from any HDMI based device to digital or analog stereo maintaining 4K/60 video resolutions with YUV 4:4:4 color space and pass-thru for HDR 10 (High Dynamic Range). Audio formats include LCPM 2-channel stereo, Dolby TrueHD, Dolby Digital Plus, Dolby Atmos and DTS-HD Master audio with audio sampling rate up to 192kHz.

Applications

Widely used by audiophiles for de-embedding high-fidelity audio signals up to 192kHz and analog 2-channel stereo audio in residential and audio based home theaters. Perfect for de-embedding audio from devices such as, Apple TV 4th generation, Google Chromecast, Xbox One, PS4, Sonos Speaker systems where you can simply extract audio from HDMI and drive it through 2-channel stereo or AV receiver.

In the Box

  • KanexPro 18Gbps 4K HDMI Audio Extractor with Dolby Atmos
  • Power Supply
