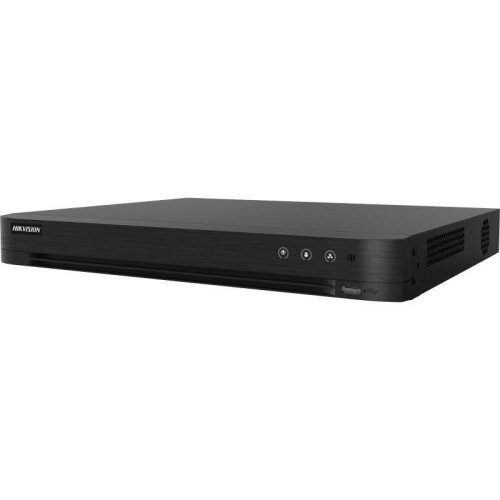

Hikvision DS-7232HQHI-M2/S AcuSense Digital Video Recorder
Hikvision DS-7232HQHI-M2/S AcuSense Digital Video Recorder Display Gallery Item 1

Hikvision DS-7232HQHI-M2/S AcuSense Digital Video Recorder - Shop Now!

By: Hikvision

Model: iDS-7232HQHI-M2/S

Sku: AHMMHWC0I6

Be the first to review this product

Sign up for price alert

PKR 69,999

& FREE Two-Day Delivery

Availability: In Stock In Stock

New

  • Recording: Video Compression: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 / Encoding Resolution: When 1080p Lite mode is not enabled: 4 MP lite/3 MP/1080p/720p/VGA/WD1/4CIF/CIF; When 1080p Lite mode is enabled: 4 MP lite/3 MP/1080p lite/720p lite/VGA/WD1/4CIF/CIF / Frame Rate: Main stream: When 1080p Lite mode not enabled: For 4 MP stream access: 4 MP lite@15 fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N) For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15 fps For 1080p stream access: 1080p/720p@15 fps; VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N) For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N) When 1080p Lite mode enabled: 4 MP lite/3 MP@15 fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N) Sub-stream: WD1/4CIF@12 fps; CIF@25 fps (P)/30 fps (N) / Video Bitrate: 32 Kbps to 10 Mbps / Dual-stream: Support / Stream Type: Video, Video & Audio / Audio Compression: G.711u / Audio Bitrate: 64 Kbps
  • Video and Audio: IP Video Input: 2-ch (up to 34-ch) Enhanced IP mode on: 8-ch (up to 40-ch), each up to 4 Mbps, Up to 6 MP resolution, Support H.265+/H.265/H.264+/H.264 IP cameras / Analog Video Input: 32-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection / HDTVI Input: 4 MP@30 fps, 4 MP@25 fps, 3 MP@18 fps, 1080p@30 fps, 1080p@25 fps, 720p@60 fps, 720p@50 fps, 720p@30 fps, 720p@25 fps, The 3 MP signal input is only available for channel 1/2/3/4 / AHD Input: 4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps / HDCVI Input 4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps / CVBS Input: PAL/NTSC / CVBS Output 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480 / HDMI Output: 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz / VGA Output: 1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz HDMI/VGA simultaneous output / Audio Input: 1-ch, RCA (2.0 Vp-p, 1 KΩ)，32-ch via coaxial cable / Audio Output: 1-ch, RCA (Linear, 1 KΩ) / Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input) / Synchronous playback: 16-ch
  • Network: Remote Connection: 128 / Network Protocol: TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF / Total Bandwidth: 128 Mbps / Network Interface: 1,RJ45 10/100/1000 Mbps self-adaptive Ethernet interface / Wi-Fi: Wi-Fi Connectable to Wi-Fi network by Wi-Fi dongle through USB interface
  • Auxiliary Interface: SATA: 2 SATA interfaces / Capacity: Up to 10 TB capacity for each disk / Serial Interface: RS-485 (half-duplex) / USB Interface: Front panel: USB 2.0 Rear panel: USB 3.0 / Alarm In/Out: N/A (optional to support)
  • General: Power Supply: 12 VDC, 5 A / Consumption: ≤ 40 W / Working Temperature: -10 °C to +55 °C (+14 °F to +131 °F) / Working Humidity: 10% to 90%
Quantity:
  • Add to Wishlist
  • Add to Compare

32-ch 1080p 1U H.265 AcuSense DVR

  • Deep learning-based motion detection 2.0 for all analog channels
  • Deep learning-based perimeter protection
  • Efficient H.265 pro+ compression technology
  • Encoding ability up to 1080p @ 15 fps
  • 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
  • Up to 40 network cameras can be connected

Motion Detection 2.0

Human/Vehicle Analysis

Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights; Quick search by object or event type is supported

Perimeter Protection

Up to 4-ch

Facial Detection

Facial Detection and Capture

Face picture detection, face picture search

In the Box

  • Hikvisioni DS-7232HQHI-M2/S AcuSense Digital Video Recorder
