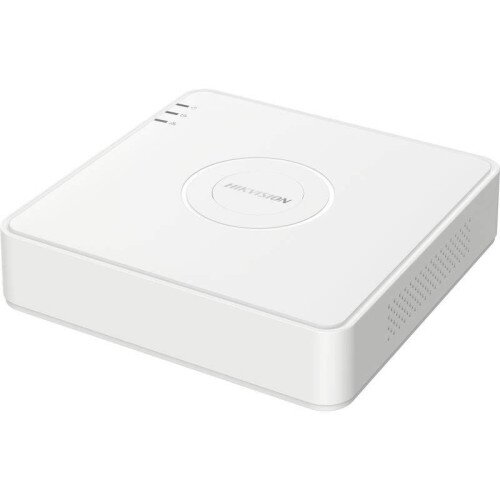

Hikvision 4-ch 1080p Lite Mini 1U H.265 DVR
Hikvision 4-ch 1080p Lite Mini 1U H.265 DVR Display Gallery Item 1

Hikvision 4-ch 1080p Lite Mini 1U H.265 DVR Price in Pakistan

By: Hikvision

Model: DS-7104HGHI-K1

Sku: JE5PZ2PV38

Be the first to review this product

Sign up for price alert

PKR 9,999

& FREE Two-Day Delivery

Availability: In Stock In Stock

New

  • Recording: Video Compression: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 / Encoding Resolution: For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF For 720p stream access: 720p/WD1/4CIF/VGA/CIF For SD stream access: WD1/4CIF/VGA/CIF / Frame Rate: Main stream: For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF@25 fps(P)/30 fps (N) For 720p stream access: 720p/WD1/4CIF/VGA/CIF@ 25fps (P)/30 fps (N) For SD stream access: WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N) Sub-stream: 4CIF@15fps; CIF/QVGA@25 fps (P)/30 fps (N) / Video Bitrate: 32 Kbps to 4 Mbps / Stream Type: Video, Video & / Audio: Audio Compression: G.711u / Audio Bitrate: 64 Kbps
  • Video and Audio: IP Video Input: 1-ch (up to 5-ch) Up to 1080p resolution Support H.265+/H.265/H.264+/H.264 IP cameras / Analog Video Input: 4-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection / HDTVI Input: 1080p25, 1080p30, 720p25, 720p30 / AHD Input: 1080p25, 1080p30, 720p25, 720p30 / HDCVI Input: 1080p25, 1080p30, 720p25, 720p30 / CVBS Input: Support / HDMI Output: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz / VGA Output 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz / Video Output Mode: HDMI/VGA simultaneous output / Audio Input: 1-ch RCA (2.0 Vp-p, 1 KΩ) 4-ch via coaxial cable / Audio Output: 1-ch, RCA (Linear, 1 KΩ) / Two-Way Audio: Reuse the first audio input / Synchronous playback: 4-ch
  • Network: Total Bandwidth: 64 Mbps / Network Protocol: TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, UPnP™, HTTPS / Remote Connection: 32 / Network Interface: 1, RJ45 10/100 Mbps self-adaptive Ethernet interface
  • Auxiliary Interface: SATA: 1 SATA interface / Capacity: Up to 4 TB capacity for each disk / USB Interface: Rear panel: 2 × USB 2.0 / Alarm In/Out: N/A
  • General: Power Supply: 12 VDC, 1.5 A / Consumption: ≤ 16 W (without HDD) / Working Temperature: -10 °C to 55 °C (14 °F to +31 °F) / Working Humidity: 10% to 90%
Quantity:
  • Add to Wishlist
  • Add to Compare

4-ch 1080p Lite Mini 1U H.265 DVR

  • H.265 Pro+/H.265 Pro/H.265 video compression
  • HDTVI/AHD/CVI/CVBS/IP video input
  • Audio via coaxial cable
  • Up to 5-ch IP camera inputs (up to 2 MP)
  • Up to 1080p Lite@30 fps encoding capability
  • Max. 1200 m for 720p HDTVI signal

Motion Detection 2.0

Human/Vehicle Analysis

Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights; Quick search by object or event type is supported

In the Box

  • Hikvision 4-ch 1080p Lite Mini 1U H.265 DVR
