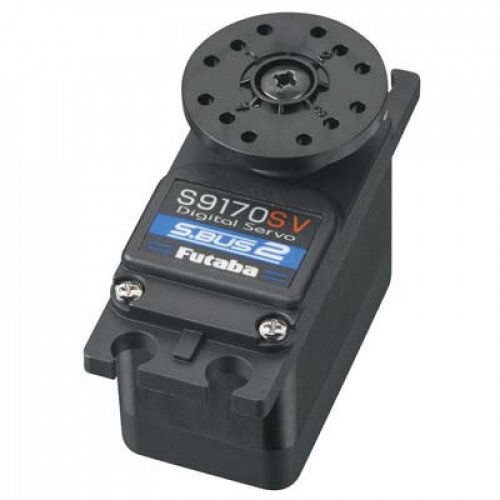

Futaba S9170SV S.Bus2 HV Low-Profile Air Servo
Futaba S9170SV S.Bus2 HV Low-Profile Air Servo Display Gallery Item 1

Futaba S9170SV S.Bus2 HV Low-Profile Air Servo Price in Pakistan

By: Futaba

Model: FUTM0133

Sku: YB3HLB1QYU

Be the first to review this product

Sign up for price alert

Availability: Out of stock New

Availability: Out of stock

  • Volts: 6.0V / 6.6V / 7.4V
  • Torque: 76 oz-in (5.5 kg-cm) / 83 oz-in (6.0 kg-cm) / 94 oz-in (6.8 kg-cm)
  • Speed: 0.15 sec/60° / 0.13 sec/60° / 0.12 sec/60°
  • SBus Programmable Defaults
  • Dead Band Degree: 0.36
  • Damper Factor: 128
  • Stretcher Gain: 1
  • Boost: 5
  • Neutral Offset Degree: 0
  • Travel Adjust Percentage: 100%
  • Reverse (Normal/Reverse): Nor
  • Stop Mode (Free/Hold): Hold
  • Buzzer (On/Off): Off
  • Smoother: Off
  • Soft Start: 3.0
Stock Request Notify When Available
  • Add to Wishlist
  • Add to Compare

This is the Futaba High Voltage S9170V S.Bus2High Torque, High Voltage, Low Profile Programmable Metal Gear Servo.

Brushless motor offers incredible holding power and 5X longer life than servos equipped with brushed motors Low profile design allows for the servo to fit into wings where height is an issue Handles up to 2S LiPo power Programmable and compatible with S.Bus and S.Bus2 Dual ball bearing supported output shaft

In the Box

  • Futaba S9170SV S.Bus2 HV Low-Profile Air Servo
  • Instructions
  • 0.83" (21mm) Round Horn
  • 1.8" (45mm) Round Horn
  • 1.5" (39mm) Four Point Horn
  • 1.2" (32mm) Six Point Horn
  • Four each
  • Grommets
  • Eyelets
  • Mounting Screws
