Futaba S3174SV S.Bus2 High-Voltage Glider Wing Servo

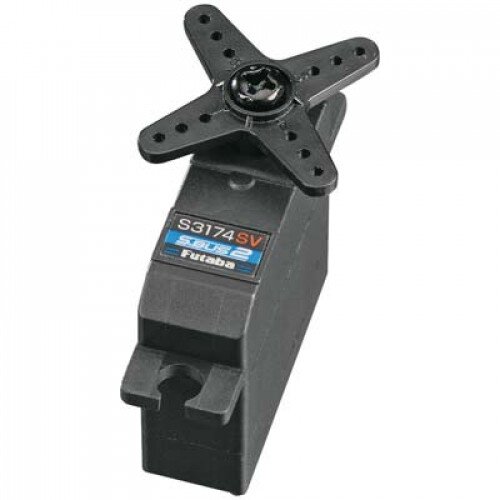

Futaba S3174SV S.Bus2 High-Voltage Glider Wing Servo Display Gallery Item 1

Futaba S3174SV S.Bus2 High-Voltage Glider Wing Servo Price in Pakistan

By: Futaba

Model: FUTM0126

Sku: P0O7C8KGJO

Be the first to review this product

Sign up for price alert

Availability: Out of stock New

Availability: Out of stock

  • Volts: 6.0V / 6.6V / 7.4V
  • Torque: 49 oz-in (3.5 kg-cm) / 54 oz-in (3.9 kg-cm) / 60 oz-in (4.3 kg-cm)
  • Speed: 0.20 sec/60° / 0.18 sec/60° / 0.16 sec/60°
  • SBus Programmable Defaults
  • Dead Band Degree: 0.45
  • Damper Factor: 112
  • Stretcher Gain: 2
  • Boost: 25
  • Neutral Offset Degree: 0
  • Travel Adjust Percentage: 100%
  • Reverse (Normal/Reverse): Nor
  • Stop Mode (Free/Hold): Hold
  • Buzzer (On/Off): Off
  • Smoother (On/Off): On
  • Boost (On/Off): Off
  • Soft Start: 3.0
Stock Request Notify When Available
  • Add to Wishlist
  • Add to Compare

This is the Futaba High Voltage S3174SV S.Bus2 Glider Wing Programmable Metal Gear Servo.

Ideal for gliders and small aircraft Handles up to 2S LiPo power Programmable and compatible with S.Bus and S.Bus2 Dual ball bearing supported output shaft

In the Box

  • Futaba S3174SV S.Bus2 High-Voltage Glider Wing Servo
  • 1.02" (26mm) 4-point Horn
  • 1.9" (48.5mm) 4-Point Horn
  • 1.4" (35.9mm) Round Horn
  • two Eyelets
  • Grommets
  • Screws
  • Instructions
