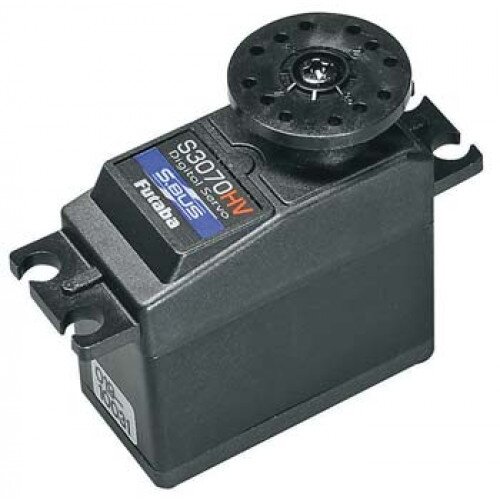

Futaba S3070HV S.Bus High-Voltage BB Metal Gear Servo
Futaba S3070HV S.Bus High-Voltage BB Metal Gear Servo Display Gallery Item 1

Futaba S3070HV S.Bus High-Voltage BB Metal Gear Servo - FREE Delivery!

By: Futaba

Model: FUTM0716

Sku: 6QJP63VHGA

Be the first to review this product

Sign up for price alert

PKR 16,499

& FREE Standard Delivery

Availability: In Stock In Stock

New

  • Volts: 6.0V / 6.6V / 7.4V
  • Torque: 72 oz-in (5.2 kg-cm) / 81 oz-in (5.8 kg-cm) / 90 oz-in (6.5 kg-cm)
  • Speed: 0.19 sec/60° / 0.17 sec/60° / 0.15 sec/60°
  • SBus Programmable Defaults
  • Dead Band Degree: 0.45
  • Damper Factor: 128
  • Stretcher Gain: 1
  • Boost: 30
  • Neutral Offset Degree: 0
  • Travel Adjust Percentage: 100%
  • Reverse (Normal/Reverse): Nor
  • Stop Mode (Free/Hold): Hold
  • Buzzer (On/Off): Off
  • Smoother (On/Off): On
  • Boost (On/Off): Off
  • Soft Start: 3.0
Quantity:
  • Add to Wishlist
  • Add to Compare

This is the Futaba S3070HV High Voltage, Ball Bearing, Metal Gear Equipped, Standard Size S.BUS Servo.

Designed for models that require high speed and high torque May also be used in conventional (non-S.BUS) systems Ball bearing equipped output shaft

In the Box

  • Futaba S3070HV S.Bus High-Voltage BB Metal Gear Servo
  • 0.83" (21mm) Round Horn
  • 1.4" (35.8mm) diameter Round Horn
  • (39mm) 4-Point Horn
  • 1.2" (32mm) 6-Point Horn
  • Mounting Hardware
  • Instructions
