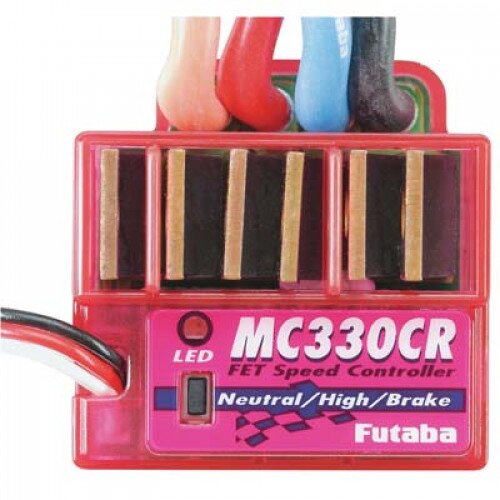

Futaba MC330CR ESC w/Reverse 13+T Price in Pakistan

Model: 01102251-3

Availability: Out of stock

High-frequency drive system
Forward, reverse, and brake operations are all linear
Reverse operation cancellation function
One-touch input of neutral, high, and brake MAX points by pushbutton switch
Overcurrent protection function
Heat protector
Low-voltage protection function
Power left on alarm function
Abnormal input signal cancellation function
Checker function (LED display, audible beep)
APPLICABLE MOTORS: Number of turns is criteria. Use with a motor with 13T or more turns.
OPERATING SYSTEM: Forward, reverse, and brake operations are all linear.
POWER REQUIREMENT: NiCd/NiMH battery, 6 ~ 7 cells, 7.2 V ~ 8.4 V
PWM FREQUENCY (FIXED): 1.5 kHz
SETTING: One-touch input by pushbuttons switch. Set data is saved to built-in EEPROM.
CURRENT CAPACITY (FET RATING): Forward = 200 A, Reverse = 100 A
CASE SIZE (EXCLUDING PROTRUDING PARTS): 27.1 mm x 33.3 mm x 12.8 mm
SILICON CORD GAUGE SIZE: AWG13 Equivalent
BEC VOLTAGE: 6.0 V
