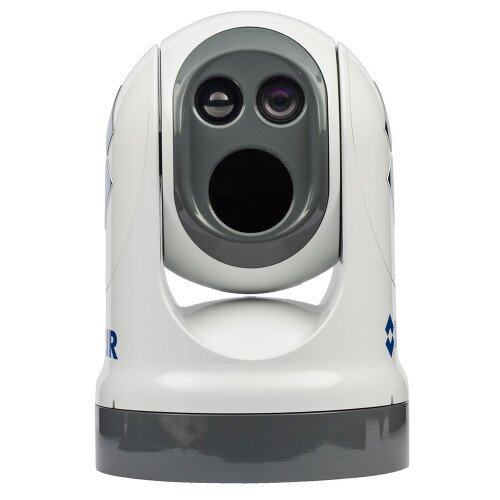

FLIR M400 Premium Multi-Sensor Marine Thermal Camera Price in Pakistan

By: FLIR

Model: M400

Sku: 7Y77OV1VK8

Availability: Out of stock New

Availability: Out of stock

  • Field of View: 64° to 2.3° Optical HFOV / 0.2 NFOV e-zoom, Typical Configuration: Camera Head, Joystick Control Unit, Cables, & Operator Manual, Glass-filled top down riser
  • Camera Head Size: 15.18" x 18.68" / 15.5" x 22" Swept Volume Cylinder, Integration Options: IP Control by FLIR Joystick, PC,and Web Browser Integration with leading Multifunction Navigation Displays (Nexus SDK) FLIR Sensors Manager Integration RS-485/422 Serial Control by Pelco D NMEA 0183 Serial Communications (for radar tracking), Pan & Tilt Coverage: 360° Continuous Pan, +/-90° Tilt
  • Video Output: Dual, independent H.264 Network Video Streams HD-SDI Lossless Digital Video Interface High Definition Serial Data Interface Broadcast-quality video output Provides HD video over coax cable Switchable Composite Analog Video Output (SD) NTSC or PAL
  • Construction Type: BNC
  • Zoom: 30X Optical Zoom, Detector Type - Daylight: Long range color daylight and low light viewing, Field of View - Daylight: 64° to 2.3° Optical HFOV / 0.2 NFOV e-zoom, Focal Length - Daylight: 129 mm to 4.3 mm, Minimum Illumination - Daylight: >0.5 lux at 50 IRE / .05 Lux in ICR Mode (B/W), Resolution - Daylight: High Definition up to 1080/30p,
  • Automatic Window Defrost: Standard, Operating Temperature Range: -20 to 55 deg C, Storage Temperature Range: -50°C to 80°C
  • Video Tracking: No
  • Power Consumption: <50 W nominal; 130 W peak, 270 W 2/heaters, Power Requirements: 24V DC
  • Beam: 5° Divergence Angle, Lumens: 580.0, Type: LED
  • Thermal Resolution: 640 x 480, Detector Type - Thermal: 640 × 480 VOx Microbolometer, E-Zoom - Thermal: 1x to 4x, Field of View (H x V) - Thermal: 18° to 6° / 1.5° HFOV with e-zoom, Field of View - Thermal: 18° to 6° / 1.5° HFOV with e-zoom, Focal Length - Thermal: 35mm (wide) to 105mm (narrow), Image Processing - Thermal: FLIR Propriety Digital Detail Enhancement
Stock Request Notify When Available

The complete visual system for seeing targets at night.

The FLIR M400’s advanced 640 x 480 sensor delivers stunning thermal video in total darkness and lowlight conditions. An HD Color visible camera with 30X zoom and a tight-beam LED spotlight augment target identification for added safety. The M400 offers a continuous optical thermal zoom lens (up to 4×) for seeing vessels and objects at greater distances. Active gyro-stabilization and radar tracking keep important targets in view at all times.

SHORT AND LONG-RANGE DETECTION

M400's thermal camera features a 4x optical zoom lens so targets remain in clear, crisp focus right up to maximum magnification.

THERMAL AND VISIBLE-LIGHT PAYLOADS

Combination thermal sensor with up to 3X optical zoom and HD Color camera with 30X zoom.

BUILT FOR HARSH CONDITIONS

Rugged, waterproof gimbal enclosure with automatic window heaters keeps image clear, while gyro-stabilization ensures steady viewing in heavy seas.

Enhanced Target Identification

The FLIR M400 provides exceptional situational awareness in challenging conditions. Two color palettes InstAlert mode depicts the hottest object in shades of red and orange for easy identification, while IceAlert turns the coolest objects in a scene to shades of blue and green. Radar integration tells the M400 to follow specific radar targets, while active gyro-stabilization ensures a steady image.

In the Box

  • FLIR M400 Premium Multi-Sensor Marine Thermal Camera
