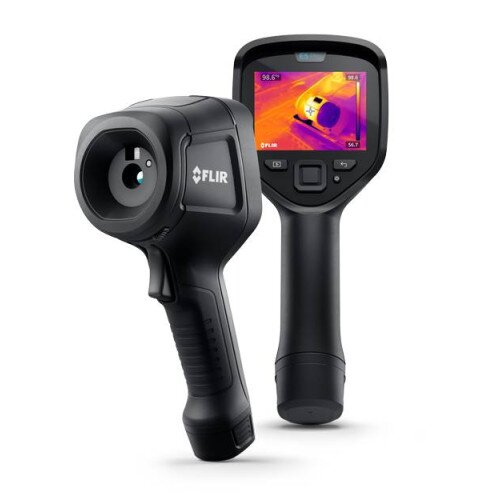

FLIR E5 Pro Pro-Series Infrared Camera with Ignite Cloud - Shop Now!

The FLIR E5 Pro is a rugged point-and-shoot thermal camera that can help you work more efficiently than ever before in building surveys, HVAC, automotive, and general electrical and mechanical inspections. Locate and diagnose problems quickly with 160 × 120 thermal resolution (19,200 pixels) and vibrant thermal imagery supported by FLIR-patented MSX (Multi-Spectral Dynamic Imaging) enhancement. Featuring a 3.5-inch, 640 × 480 touchscreen, the E5 Pro simplifies your workflow. You can edit and organize photos, add detailed notes, and upload files directly from the camera to the FLIR Ignite cloud for convenient access from any device. Share images with clients and create quick reports directly in FLIR Ignite or create advanced reports in FLIR Thermal Studio.

All new FLIR Ex Pro-Series purchases include an extended FLIR Protect warranty, 12-month FLIR Ignite Pro subscription, and FLIR Ex Pro-Series & IR Fundamentals training from FLIR Academy, making it the best value thermal imaging camera of its class and an essential tool for your daily work.

MSX Image Enhancement

All Ex Pro-Series thermal cameras feature Flir's unique Multi Spectral Dynamic Imaging (MSX ), which adds key details from the onboard visible light camera to the entire infrared image in real time. The result: an all-in-one, undiluted thermal picture with visible light features that lets you instantly recognize where the problematic heat pattern is. MSX is real time so you can see its results immediately in the camera's LCD.

Over-the-Air Updates Keep Your Camera Current

With Over-the-air (OTA) updates, your Flir camera will always have the latest firmware, bug fixes, and features. When you connect your camera to the internet, it will automatically search for firmware updates.

Professional Reports that Help Your Customer and Your Business

The right image analysis and reporting software can greatly improve your business by making it easier for your customers to understand the problem and feel confident that you fixed it.

The Flir Ignite cloud service allows you to back up images directly to the cloud, organize and edit files, and create simple reports. And for advanced editing and reporting, there's Flir Thermal Studio Suite: a desktop software offering batch processing, feature-rich measurement tools, and customized reports.

Save Time With 1-Touch Level/Span

1-Touch Level/Span allows you to choose a small area of focus in a thermal image - with one touch of the screen - and the camera will auto-adjust the level and span based on the thermal contrast at that spot in the image. The result: time saved on manual adjustments.

Become a Thermal Studio Expert

Learn to edit images, analyze them, and produce custom reports using FLIR Thermal Studio Suite software with online training from the Infrared Training Center. This virtual class covers everything you need to know, including:

• How to adjust image parameters and optimize thermal contrast
• How to create batch functions for image processing
• How to design a new report template

Inspect Efficiently

Edit and organize your photos, add detailed notes, and upload files from the camera to the FLIR Ignite cloud for convenient access from any device.

Identify problems fast

FLIR-patented MSX (Multi-Spectral Dynamic Imaging) enhancement provides highly detailed thermal images to help you quickly recognize where a problem is located.

Hassle-free sharing and reporting

Share images instantly and create quick reports in FLIR Ignite, or create advanced client reports in FLIR Ignite or FLIR Thermal Studio.

Imaging & Optical

• Color Palettes: Iron, White hot, Black hot, Rainbow, Arctic, Lava, Rainbow HC
• Detector Type: Uncooled microbolometer
• Digital Camera: 5 MP
• f-number: 1.4
• Field of view (FOV): 33° × 25°
• Focus: Focus free
• Gallery: Thumbnails and custom folder structure
• Image Frequency: 9 Hz
• Image Modes: Thermal MSX, Thermal, Picture-in-Picture, Digital camera
• IR Resolution: 160 × 120 (19,200 pixels)
• Minimum Focus Distance: 0.36 m (1.18 ft)
• Picture-in-Picture: IR area on visual image
• Spatial resolution (IFOV): 3.7 mrad
• Spectral Range: 7.5 µm to 13 µm
• Thermal Sensitivity/NETD: 0.06°C (0.11°F) / 60 mK at 30°C (86°F)

Measurement & Analysis

• Accuracy: 2°C (±3.6°F) or 2% of reading, for ambient temperature 10°C to 35°C (50°F to 95°F) and object temperature above 0°C (32°F)
• Delta T: Yes, NFPA 70B compliant
• Isotherm: Above alarm, below alarm
• Measurements correction: Emissivity; matt/semi-matt/semi-gloss + custom value, Reflected apparent temperature, Atmospheric compensation
• Object Temperature Range: -20°C to 400°C (-4°F to 752°F) in two ranges
• Spot Meter: Center spot; box with min./max.

User Interface

• Accuracy: 2°C (3.6°F) or 2% of reading, for ambient temperature 10°C to 35°C (50°F to 95°F) and object temperature above 0°C (32°F)
• Delta T: Yes, NFPA 70B compliant
• Isotherm: Above alarm, below alarm
• Measurements correction: Emissivity; matt/semi-matt/semi-gloss + custom value, Reflected apparent temperature, Atmospheric compensation
• Object Temperature Range: -20°C to 400°C (-4°F to 752°F) in two ranges
• Spot Meter: Center spot; box with min./max.

Communication & Data Storage

• Storage Media: Internal memory and onboard FLIR Ignite cloud connectivity (with Wi-Fi)
• WiFi: Standard: 802.11 a/b/g/n (2.4 and 5 GHz)

Power

• Battery operating time: 4 hours
• Battery Type: Rechargeable Lithium ion battery
• Charging system: Battery is charged inside the camera or in specific charger.
• Charging Time: 2 hours
• Power Management: Automatic shut-down

Environmental & Certifications

• Certifications: UL, CSA, CE, PSE and CCC, WEEE 2012/19/EC, RoHs 2011/65/EC
• Drop test: 2 m (6.6 ft)
• EMC: EN 301 489-1, EN 301 489-17, EN 61000-6-3, EN 61000-6-2, FCC 47 CFR Part 15 Class B
• Encapsulation: IP54 (IEC 60529)
• Humidity (Operating and Storage): IEC 60068-2-30/24 h 95% relative humidity
• Operating Temperature Range: -15°C to 50°C (5°F to 122°F)
• Shock: 25 g (IEC 60068-2-27)
• Storage Temperature Range: -40°C to 70°C (-40°F to 158°F)
• Vibration: 2 g (IEC 60068-2-6)

In the Box

• FLIR E5 Pro Pro-Series Infrared Camera with Ignite Cloud
• Battery (inside camera)
• Hard transport case
• Power Supply (with EU, UK, US and AU plugs)
• FLIR Thermal Studio Starter
• printed documentation
