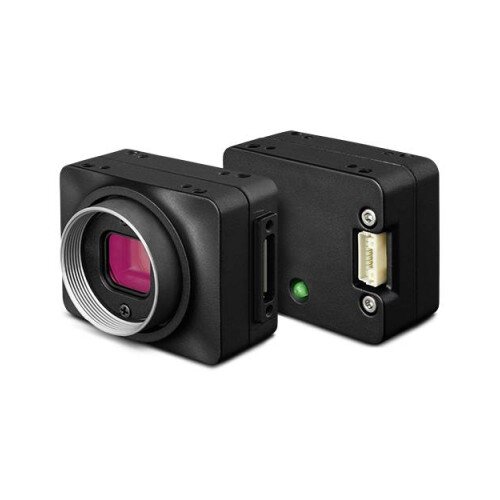

FLIR Chameleon3 USB3 Machine Vision Camera
FLIR Chameleon3 USB3 Machine Vision Camera Display Gallery Item 1

FLIR Chameleon3 USB3 Machine Vision Camera Price in Pakistan

By: FLIR

Model: CM3-U3-13Y3C-CS

Sku: WDEBOIXMWR

Be the first to review this product

Sign up for price alert

Availability: Out of stock New

Availability: Out of stock

  • Resolution: 1280 × 1024
  • Megapixels: 1.3
  • Sensor Name: ON Semi PYTHON 1300
  • Sensor Type: CMOS
  • Pixel Size: 4.8
  • ADC: 10-bit
  • Exposure Range: 0.01 ms to 1 second
  • Flash Memory: 1 MB non-volatile memory
  • Gain Range: 0 dB to 18 dB
  • Image Buffer: 16 MB
  • Partial Image Modes: Pixel binning, decimation, ROI
  • Trigger Modes: Standard, bulb, multi-shot
  • User Sets: 2 user configuration sets for custom camera settings
  • Absolute Sensitivity Threshold (y): 21.39
  • Quantum Efficiency Blue: 41 (% at 470 nm)
  • Quantum Efficiency Green: 45 (% at 525 nm)
  • Quantum Efficiency Red: 46 (% at 640 nm)
  • Auxiliary Output: 3.3 V, 150 mA maximum
  • Interface: USB 3.1 Gen 1
  • Operating Humidity: 20 to 80% (no condensation)
  • Operating Temperature: 0° to 45°C
  • Hard Drive: 200 MB hard drive space
  • Operating System: Windows or Linux (32–bit or 64–bit)
  • RAM: 2 GB RAM or more
  • Machine Vision Standard: USB3 Vision v1.0
Stock Request Notify When Available
  • Add to Wishlist
  • Add to Compare

The Chameleon 3 camera family combines the ease-of-use of USB3, small size, flexibility of board-level versions, and popular CCD and CMOS image sensors into an affordable package. For FLIR cameras with the latest sensors and most advanced feature sets, please refer to Blackfly S and Oryx camera families.

In the Box

  • FLIR Chameleon3 USB3 Machine Vision Camera
  • Lens
  • Cable
  • Host Adapter (USB 3.1 Gen 1
  • Tripod Mount Adapter (ACC-01-0003)
