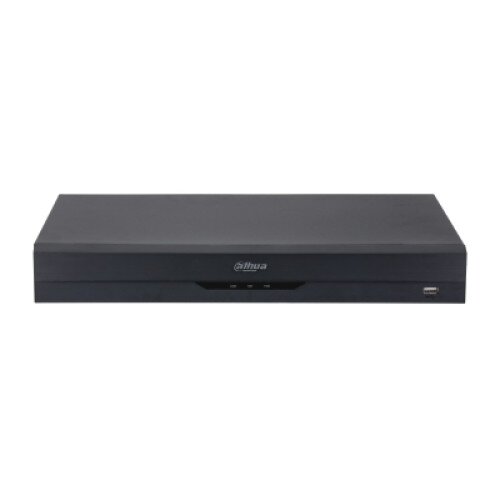

Dahua XVR5216AN-I3 16CH Penta-brid 5MP Value/1080P 1U 2HDDs WizSense Digital Video Recorder
Dahua XVR5216AN-I3 16CH Penta-brid 5MP Value/1080P 1U 2HDDs WizSense Digital Video Recorder Display Gallery Item 1
Dahua XVR5216AN-I3 16CH Penta-brid 5MP Value/1080P 1U 2HDDs WizSense Digital Video Recorder - 2 Display Gallery Item 2
Dahua XVR5216AN-I3 16CH Penta-brid 5MP Value/1080P 1U 2HDDs WizSense Digital Video Recorder - 3 Display Gallery Item 3

Grab Dahua XVR5216AN-I3 16CH Penta-brid 5MP Value/1080P 1U 2HDDs WizSense Digital Video Recorder

By: Dahua

Model: XVR5216AN-I3

Sku: FUYQMDK4GC

Be the first to review this product

Sign up for price alert

PKR 54,999

& FREE Two-Day Delivery

Availability: In Stock In Stock

New

  • 2-channel QuickPick 2.0 for analog channels which improves the efficiency of target retrieval.
  • 16-channel SMD Plus for analog channels or 24-channel SMD by camera which allows the device to trigger accurate alarms for humans and vehicles.
  • 4-channel perimeter protection for analog channels which supports tripwire and intrusion detection powered by AI.
  • 2-channel face recognition for analog channels which supports face comparison.
  • 16-channel AI Coding saves on storage and bandwidth while maintaining the details of targets in videos.
  • Supports HDCVI, AHD, TVI, CVBS and IP video input.
  • Supports up to 24-channel IP camera input and each channel can be up to 6 MP. The incoming bandwidth reaches 128 Mbps.
  • Smart H.265+ and H.265 dual-stream video compression.
  • IoT and POS capabilities.
Quantity:
  • Add to Wishlist
  • Add to Compare

System

  • Main Processor: Industrial-grade processor
  • Operating System: Embedded Linux
  • Operating Interface: Web; Local GUI

QuickPick 2.0

  • QuickPick 2.0 AI by Recorder (Number of Channels): 2 channels

Perimeter Protection

  • Perimeter Performance AI by Recorder (Number of Channels): Advanced Mode: 2 channels, 10 IVS rules for each channel, General Mode: 4 channels, 10 IVS rules for each channel

Face Detection

  • Face Attributes: 6 attributes
  • Face Detection Performance of AI by Recorder (Number of Channels): 2 channels(up to 12 face images/s each channel)

Face Recognition

  • Face Database Capacity: Up to 10 face databases with 10,000 images.
  • Face Recognition Performance of AI by Recorder (Number of Channels): 2 channels

SMD Plus

  • SMD Plus by Recorder 16 channels: Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition change
  • SMD Plus by Camera: 24 channels

AI Video Quality Analytics

  • AI Video Quality Analytics by Recorder: 16 channels: Supports detecting brightness levels, color cast, defocus, overexposure, contrast levels, black and white

Scene Changing

  • Scene Changing by Recorder: 1 channel

Irregular Black Block Masking

  • Irregular Black Block Masking by Recorder: 1 channel

Audio and Video

  • Analog Camera Input: 16 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect
  • Camera Input: 1. CVI: 5 MP@25 fps; 5 MP@20 fps; 5 MP@10/12.5 fps; 4 MP@25/30 fps; 1080p@25/30 fps; 720p@50/60 fps; 720p@25/30fps. 2. TVI: 5 MP(2560 x 1944)@20 fps; 5 MP(2960 x 1665)@20 fps; 4 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps. 3. AHD: 5 MP@20 fps; 4 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps.
  • IP Camera Input: Up to 24 channels of IPC access, 8 IP channels by default + 16 channels (analog channels are converted to IP channels), incoming bandwidth: 128 Mbps, recording bandwidth: 128 Mbps and outgoing bandwidth: 128 Mbps, *After IP extension is enabled, Video Quality Analytics, Scene Changing, Face Recognition, Face Detection, SMD, Perimeter Protection and QuickPick 2.0 cannot be used.
  • Encoding Capacity: Main stream: 5 MP Mode: 4-ch 5 MP@(1 fps-6 fps); others 5M-N@(1 fps-12 fps), 5M-N Mode: 5M-N@(1 fps –12 fps); 4M-N/1080p@(1 fps–15 fps); 1080N/720p/960H/D1/CIF@(1 fps–25/30 fps), Sub stream: D1/CIF@(1 fps–15 fps)
  • Dual-stream: Yes
  • Video Bit Rate: 32 kbps–6144 kbps
  • Audio Sampling: 8 kHz, 16 bit
  • Audio Bit Rate: 64 kbps
  • Video Output: 1 HDMI, 1 VGA, VGA: 1920 × 1080, 1280 × 1024, 1280 × 720, HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720, It changes to 1920 × 1080, 1280 × 1024, 1280 × 720 when Face, IVS&SMD or Quick Pick is selected in AI Mode.
  • Multi-screen Display: When IP extension mode not enabled: 1/4/8/9/16, When IP extension mode enabled: 1/4/8/9/16/25
  • Third-party Camera Access: Panasonic; Sony; Hanwha; Axis; Arecont; ONVIF

Compression Standard

  • Video Compression: AI Coding; Smart H.265+; H.265; Smart H.264+; H.264
  • Audio Compression: G.711a; G.711u; PCM

Network

  • Network Protocol: HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.)
  • Mobile Phone Access: iOS; Android
  • Interoperability: ONVIF 24.06 (Profile T; Profile S; Profile G); CGI; SDK
  • Browser: Chrome; IE; Safari; Edge; Firefox

Recording Playback

  • Record Mode: General; alarm; motion detection; intelligent; POS
  • Recording Playback: 1/4/9/16 It changes to 1/4/9 split when Face or IVS&SMD is selected in AI Mode.
  • Backup Method: USB device and network
  • Playback Mode: Instant playback; general playback; event playback; tag playback; smart playback

Storage

  • Disk Group: Yes

Alarm

  • General Alarm: Motion detection; alarm box; HDCVI alarm; camera external alarm; network alarm; PIR alarm
  • Anomaly Alarm: Error (no disk, disk error, low space, low quota space; network disconnection; IP conflict; MAC conflict); video loss; video tampering; camera offline
  • Intelligent Alarm: Face detection; face recognition; perimeter protection; SMD Plus
  • Alarm Linkage: Record; snapshot (panoramic); IPC external alarm output; audio; buzzer; log; preset; email

Ports

  • Audio Input: 1-channel RCA, 16-channel BNC (Coaxial Audio)
  • Audio Output: 1-channel RCA
  • Two-way Talk: Yes (share the same audio input with the first channel)
  • Disk Interface: 2 SATA ports. Each disk can contain up to 16 TB. This limit varies depending on the environment temperature.
  • RS-485: 1
  • USB: 2 (1 front USB 2.0 port, 1 rear USB 3.0 port)
  • HDMI: 1
  • VGA: 1
  • Network Port: 1 (10/100/1000 Mbps Ethernet port, RJ-45)

General

  • Power Supply: 12 VDC, 4 A
  • Power Consumption: 12 W(without HDD)
  • Operating Temperature: –10 °C to +55 °C (+14 °F to +131 °F)
  • Storage Temperature: –20 °C to +60 °C (–4 °F to +140 °F)
  • Operating Humidity: 10%–90% (RH), non-condensing
  • Installation: Desktop
  • Certifications: CE: CE-LVD: EN 60950-1/IEC 60950-1, CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024, FCC: Part 15 Subpart B

In the Box

  • Dahua XVR5216AN-I3 16CH Penta-brid 5MP Value/1080P 1U 2HDDs WizSense Digital Video Recorder
