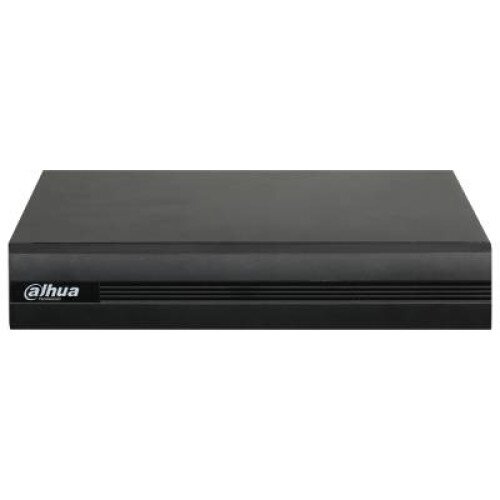

Dahua XVR1B16-I 16CH Penta-Brid 1080N/720P Compact 1U 1HDD WizSense Digital Video Recorder
Dahua XVR1B16-I 16CH Penta-Brid 1080N/720P Compact 1U 1HDD WizSense Digital Video Recorder Display Gallery Item 1
Dahua XVR1B16-I 16CH Penta-Brid 1080N/720P Compact 1U 1HDD WizSense Digital Video Recorder - 2 Display Gallery Item 2
Dahua XVR1B16-I 16CH Penta-Brid 1080N/720P Compact 1U 1HDD WizSense Digital Video Recorder - 3 Display Gallery Item 3

Grab Dahua XVR1B16-I 16CH Penta-Brid 1080N/720P Compact 1U 1HDD WizSense Digital Video Recorder

By: Dahua

Model: XVR1B16-I

Sku: RMXT0D3RC3

Be the first to review this product

Sign up for price alert

PKR 19,999

& FREE Two-Day Delivery

Availability: In Stock In Stock

New

  • 8-channel SMD Plus for analog channels which allows the device to trigger accurate alarms for humans and vehicles.
  • 16-channel AI Coding saves on storage and bandwidth while maintaining the details of targets in videos.
  • Supports HDCVI, AHD, TVI, CVBS and IP video input.
  • Supports up to 18-channel IP camera input and each channel can be up to 6 MP. The incoming bandwidth reaches 64 Mbps.
  • Smart H.265+ and H.265 dual-stream video compression.
  • IoT and POS capabilities.
Quantity:
  • Add to Wishlist
  • Add to Compare

System

  • Main Processor: Industrial-grade processor
  • Operating System: Embedded Linux
  • Operating Interface: Web; Local GUI

SMD Plus

  • SMD Plus by Recorder: 8 channels: Secondary filtering for human and vehicle, reducing false alarms caused by leaves, rain and lighting condition change

Audio and Video

  • Analog Camera Input: 16 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect
  • Camera Input: 1. CVI: 1080p@25/30 fps; 720p@25/30 fps / 2. TVI: 1080p@25/30 fps; 720p@25/30 fps / 3. AHD: 1080p@25/30 fps; 720p@25/30 fps.
  • IP Camera Input: Up to 18 channels of IPC access, 2 IP channels by default + 16 channels (analog channels are converted to IP channels), incoming bandwidth: 64 Mbps, recording bandwidth: 64 Mbps and outgoing bandwidth: 64 Mbps, *After IP extension is enabled, the AI Function (SMD) will be disabled.
  • Encoding Capacity: Main stream: the 1st channel 1080N/720p@(1 fps–25/30 fps), others 1080N/720p@(1 fps–15 fps); 960H/D1/CIF@(1 fps–25/30 fps)
  • Dual-stream: Yes
  • Video Bit Rate: 32 kbps–4096 kbps
  • Audio Sampling: 8 kHz, 16 bit
  • Audio Bit Rate: 64 kbps
  • Video Output: 1 HDMI, 1 VGA, HDMI: 1920 × 1080, 1280 × 1024, 1280 × 720, VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
  • Multi-screen Display: When IP extension mode not enabled: 1/4/8/9/16, When IP extension mode enabled: 1/4/8/9/16/25, Third-party Camera Access: Panasonic; Sony; Hanwha; Axis; Arecont; ONVIF

Compression Standard

  • Video Compression: AI Coding; Smart H.265+; H.265; Smart H.264+; H.264
  • Audio Compression: G.711a; G.711u; PCM

Network

  • Network Protocol: HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.)
  • Mobile Phone Access: iOS; Android
  • Interoperability: ONVIF 22.12 (Profile T; Profile S; Profile G); CGI; SDK
  • Browser: Chrome; IE; Safari; Edge; Firefox

Recording Playback

  • Record Mode: General; alarm; motion detection
  • Recording Playback: 1/4/9/16
  • Backup Method: USB device and network
  • Playback Mode: Instant playback; general playback; event playback; tag playback; smart playback

Alarm

  • General Alarm: Motion detection; HDCVI alarm; camera external alarm; network alarm; PIR alarm
  • Anomaly Alarm: Error (no disk, disk error, low space, low quota space; network disconnection; IP conflict; MAC conflict); video loss; video tampering; camera offline
  • Intelligent Alarm: SMD Plus
  • Alarm Linkage: Record; snapshot (panoramic); IPC external alarm output; audio; buzzer; log; preset; email

Ports

  • Audio Input: 1-channel RCA, 16-channel BNC (Coaxial Audio)
  • Audio Output: 1-channel RCA
  • Two-way Talk: Yes (share the same audio input with the first channel)
  • Disk Interface: 1 SATA port, up to 16 TB. This limit varies depending on the environment temperature.
  • USB: 2 (2 rear USB 2.0 ports)
  • HDMI: 1
  • VGA: 1
  • Network Port: 1 (10/100 Mbps Ethernet port, RJ-45)

General

  • Power Supply: 12 VDC, 2 A
  • Power Consumption: 10 W (without HDD)
  • Operating Temperature: –10 °C to +45 °C (+14 °F to +113 °F)
  • Storage Temperature: –20 °C to +60 °C (–4 °F to +140 °F)
  • Operating Humidity: 10%–90% (RH), non-condensing
  • Installation: Desktop
  • Certifications: CE-LVD: IEC 62368-1:2014 / CE-EMC: EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 55032:2015+A11:2020, EN 55035:2017+A11:2020, EN 55024:2010+A1:2015, EN 50130-4:2011+A1:2014 / FCC: 47 CFR Part 15, Subpart B

In the Box

  • Dahua XVR1B16-I 16CH Penta-Brid 1080N/720P Compact 1U 1HDD WizSense Digital Video Recorder
