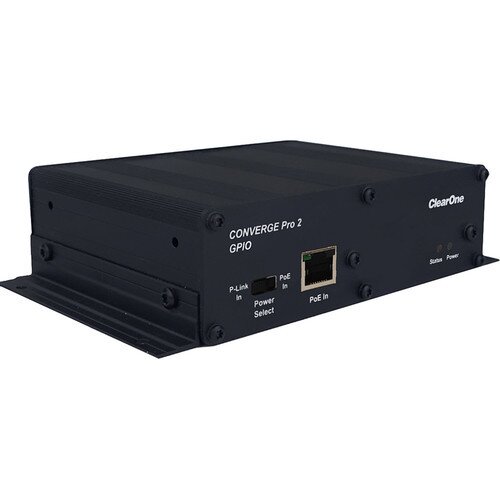

ClearOne GPIO Expander for Converge Pro 2
ClearOne GPIO Expander for Converge Pro 2 Display Gallery Item 1
ClearOne GPIO Expander for Converge Pro 2 - 2 Display Gallery Item 2
ClearOne GPIO Expander for Converge Pro 2 - 3 Display Gallery Item 3

ClearOne GPIO Expander for Converge Pro 2 Price in Pakistan

By: ClearOne

Model: 910-3200-301

Sku: ZTZZ1R8M69

Be the first to review this product

Sign up for price alert

PKR 123,399

& FREE Standard Delivery

Availability: In Stock In Stock

New

  • Total Pins: Inputs: 12
  • Outputs: 12
  • 5V DC: 1 for every 3 I/O pins
  • GND: 1 for every 3 I/O pins
  • Sensor Type: Slide Switch
  • Toggle toward P-Link to power device by P-Link
  • Toggle toward PoE to power device by PoE Injector
  • Power Source: P-Link or PoE Injector
  • Mains Voltage: 100-240V AC, 50/60Hz
  • Power Consumption: 6.32 Watts Typical
  • Typical Thermal: 21.60 BTU/Hr Max
  • Operating Temperature: 14°F/-10°C to 104°F/40°C Ambient Temperature
Quantity:
  • Add to Wishlist
  • Add to Compare

The GPIO Expander expands the GPIO capability of a CONVERGE Pro 2 mixer by providing an additional 12 input and 12 output pins

This device gives integrators flexible connections to program LED activations on the microphones, trigger third-party devices; and trigger presets based on room configuration, such as combine/divide.

The GPIO expander can be daisy-chained with other P-Link peripheral devices such as the Beamforming Mic Array 2, DIALOG 20 Receiver, and USB Expander. It can also be used as a P-Link distance extender.

  • Can be used to activate LED on mics, trigger macros and presets, activate camera tracking, and activate global mute.
  • Can be placed up to 200’ (60m) from CP2 or other P-link devices, extending a P-link chain.
  • P-link or PoE Injector for power and Serial connection for control interface.
  • Can daisy-chain up to three GPIO expanders per CP2, and can also be daisy-chained with other P-link devices.
  • Compact form factor and flexible mounting (rack, under-table, wall, or ceiling).

In the Box

  • ClearOne GPIO Expander for Converge Pro 2
