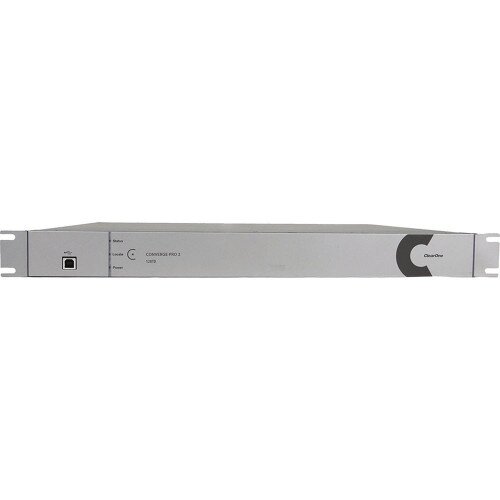

ClearOne Converge Pro 2 128 DSP Mixer with 12 Mic/Line Inputs
ClearOne Converge Pro 2 128 DSP Mixer with 12 Mic/Line Inputs Display Gallery Item 1

Grab ClearOne Converge Pro 2 128 DSP Mixer with 12 Mic/Line Inputs

By: ClearOne

Model: 910-3200-001

Sku: SS1O1EBDC2

Be the first to review this product

Sign up for price alert

Availability: Out of stock New

Availability: Out of stock

  • Port Type: AC Inlet
  • Mains Voltage: 100-240V AC, 50/60Hz
  • Power Consumption: 50 Watts Typical
  • Thermal: 170 BTU/Hr Typical
  • Operating Temperature: 14°F (-10°C) to 104°F (40°C) Ambient Temperature
  • Sensor Type: Capacitive Touch Button
  • Location: Front Panel
  • Locate LED: Blue - Blinking: Unit “Locate” command received
  • Power LED: Blue - Solid: Unit is powered on
  • Status LED: Off: Unit still initializing, Blue - Fast Blinking: Stack Syncing in progress, Blue - Slow Blinking: Unit not configured, Blue - Solid: Configured unit, Red - Fast Blinking: Stack Sync error
  • Port Type: USB-B connector
  • Compatible: USB 2.0 & USB 3.0
  • Port Type: 5.08mm Green color Phoenix/Euroblock type male header
  • Support: Control, Status, Variable Voltage Control
  • Power Pin: 5V DC 350mA Power Source
  • Ground Pin: GND
  • Pin 1 to 4: Open Collector Outputs: 40VDC 250mA, Active Outputs (Source/Sink): 5VDC 25mA, Logic Inputs: 40.2k pull up, Variable Voltage Control Inputs: 5VDC max
  • Frequency Response: 20Hz – 22kHz +4dBu, +/- 0.5dBu
  • EIN (Equivalent Input Noise): 20kHz BW, max gain, Rs=150, -126dBu
  • Dynamic Range: 20Hz – 20kHz 0dB, >105dB
  • Input Impedance: Balanced (line to ground), 2.2k, 1%
  • Nominal Input Level: Adjustable -56dB to 0dB, 7dB step coarse gain
  • Port Type: RJ-45, 10/100Mbps Ethernet Network, Auto Negotiation
  • IP address: IPv4 (IPv6 upgradeable through future s/w, f/w upgrade)
  • Port Type: RJ-45 Gigabit Ethernet connectors for Primary and Secondary Ports
  • Audio: Digital Audio, 16 x 16 bidirectional channels
  • Sample Rate: 48kHz / 96kHz
  • Sample Bit Depth: 24-Bit
  • Ports Type: RJ-45 (Cat5e or Cat6)
  • C-Link In & Out: Proprietary Expansion Bus
  • Audio: 64 Expansion channels
  • Cable: Solid core, factory terminated Cat 5e or 6 cable
  • Distance: Up to 150’ (45M)
  • Ports Type: RJ-45 (Cat5e or Cat6)
  • P-Link In & Out: Proprietary Peripheral Bus
  • PoE In: P-Link In Port, PoE IEEE802.3AF
  • Cable: Solid core, factory terminated Cat 5e or 6 cable
  • Distance: Up to 200’ (60M)
  • Audio: Up to 3 Beamforming Microphone Array 2 units + up to 3 DIALOG 20 Wireless Receiver units
Stock Request Notify When Available
  • Add to Wishlist
  • Add to Compare
  • Built-in Dante for networked audio
  • DARE feedback elimination
  • 12 mic/line-inputs and 8-line outputs
  • Stack up units to 144 Mic/line inputs
  • Daisy-chain with Dialog 20 Wireless Microphone System
  • Third-party control modules
  • Acoustic Intelligence for rich audio
  • Advanced microphone gating
  • USB audio support
  • Two power options- P-Link and POE
  • Daisy-chain with all ClearOne P-link devices such USB expander and GPIO expander
  • New CONSOLE software for discovery, configuration and control

In the Box

  • ClearOne Converge Pro 2 128 DSP Mixer with 12 Mic/Line Inputs
  • Power Cord: 6’ (1.8M), Grounded
  • Input Connectors: Terminal Block Connector, 3 Position (Orange), Qty 12
  • Output Connectors: Terminal Block Connector, 3 Position (Black), Qty 8
  • GPIO Connector: Terminal Block Connector, 6 Position (Green)
  • C-Link Cable: RJ-45 To RJ-45 Cable, 18” (45.7cm)
  • USB Cable: USB Type A to Type B, 6’ (1.8M)
  • Rack Ears: Pre-installed, Qty 2
  • Screw/Washer Kit: Rack Decor, Qty 4
