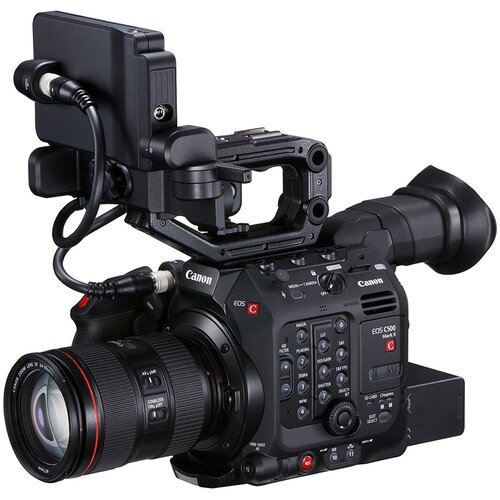

The Cinema EOS C500 Mark II features Canon’s high-resolution 5.9K (38.1 x 20.1mm) Full Frame CMOS sensor, which offers exceptional low noise and a broad range of tonality with over 15 stops of dynamic range. The sensor’s expansive native cinema gamut goes beyond that of current standards, including ITU-R BT.2020 and DCI-P3, helping the EOS C500 Mark II achieve more natural skin tones and allowing for greater freedom in color grading in both SDR and HDR productions.
The Full Frame sensor is capable of capturing footage in a wide variety of aspect formats, including DCI-4K, UHD and Anamorphic Widescreen. The Cinema EOS C500 sensor supports both anamorphic and spherical lenses. In addition to full-frame, the sensor can also be paired with conventional Super 35mm and Super 16mm lenses using appropriate sensor crop modes, lens mount and adapter.
User interchangeable lens mounts and an available B4 mount adapter gives operators the freedom to make bold creative choices based on the subject matter.
The EOS C500 Mark II ships with an EF Mount that can be user swapped to an optional Locking EF (EF-C) or PL mount. Each mount swaps easily by simply removing four M3 hex screws. A shim set is provided with each mount kit in order to adjust back focus for the precision in focusing accuracy that professionals rely on.
The EOS C500 Mark II uses a newly developed DIGIC DV 7 Image Processor that takes the extensive RAW information captured from the 5.9K imaging sensor and processes it for output. DiG!C is also the engine behind features such as high frame rate recording, Dual Pixel Auto Focus, Cinema Raw Light Recording, HDR(PQ and HLG) output, electronic image stabilization, proxy recording and oversampling 5.9K processing.
Thanks to the powerful DIGIC DV 7 image processing platform, the EOS C500 Mark II can record Cinema RAW Light directly to onboard CFexpress cards, which keeps the data-rich signal captured by the 5.9K full-frame sensor intact. Cinema RAW Light offers plenty of freedom for grading in file sizes that are about 1/3 to 1/5 the size of Cinema RAW, offering a great combination in terms of codec efficiency and quality.
When recording in 5.9K Cinema RAW Light, 60 fps is available, which is an ideal range of high-quality slow-motion capture for typical human movements. In 2K (Crop) mode, frame rates up to 120fps are available allowing users to slow down the action even further, for more dramatic scenes and special effects. Two new buttons S&F(Slow and Fast Motion) and S&F FPS (Slow and Fast Motion – Frames per Second) have been added to gives quick access to desired speed settings, making it simple to utilize this creative tool quickly and spontaneously when the moment is right.
To accurately record the extensive data produced by the 5.9K imaging sensor and provide greater recording times, the EOS C500 Mark features two CFexpress recording slots. CFexpress is the future of onboard recording media providing write speeds needed for higher resolutions and frame rates. The dual card slots can be used to either create an instantaneous backup thorough simultaneous recording or extend record run times by relay recording.
Higher resolution, greater bit depths and faster frame rates provide versatility and greater image quality but come at the cost of much larger file sizes. Proxy files can greatly speed up the editorial process by providing a lower bandwidth alternative for the initial file sharing and edits.
Canon’s powerful, high-speed DIGIC DV 7 image processor makes it possible for the EOS C500 Mark II to simultaneously record 2K Proxy files. Cinema RAW Light (5.9K, 4K Crop, or 2K (Crop)) can be recorded to the internal CFexpress card while an XF-AVC 2K 4:2:0 8-bit Proxy can be recorded directly to an internal SD card.
With optional mount kits, users can swap from EF to Locking EF-C or PL mounts on their own.
PL lenses are a cinema legacy. With a wide breath of options available to cinematographers choosing a lens is an important part of the creative process. The EOS C500 Mark II’s interchangeability now makes it possible to take any PL lens and pair it with Canon’s state-of-the-art sensor to meet the needs of any project.
Using Canon’s EF still lenses offer remarkable new possibilities for cinematographers including the use of specialty lenses like the fisheye zoom, tilt-shift and super-telephotos.
The EOS C500 Mark II offers cinematographers anamorphic lens support. Users can now achieve wide cinematic looks and oval bokeh particular to anamorphic glass. It is a distinctly cinematic palette that is within reach for your next project.
The EOS C500 Mark II is the first Canon Cinema EOS camera to feature built-in five-axis electronic IS that works with almost any lens including anamorphic.
A new modular design allows productions to optimize and customize the EOS C500 Mark II to specific shooting needs. Accessories and expansion units can be easily attached to provide different levels of functionality. The camera is equally at home fully rigged with a large zoom lens, FIZ unit, audio accessories and rangefinder as it is stripped down flying on a drone.
The EVF-V50 OLED electronic viewfinder is a tilting 0.46” approx. 1.77 million dot OLED EVF that offers outstanding visibility for single-operator applications, such as documentaries and outdoor interviews.
