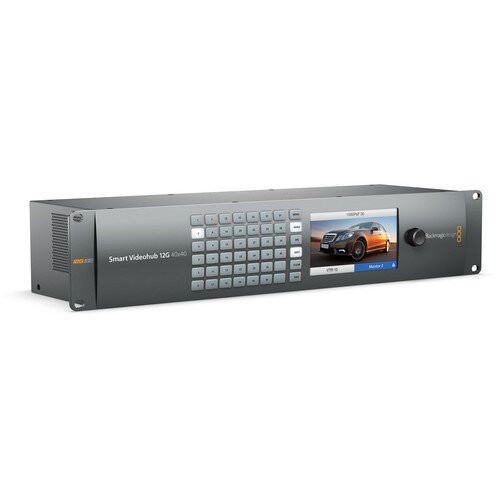

Blackmagic Design Smart Videohub 12G 40 x 40 Switcher
Blackmagic Design Smart Videohub 12G 40 x 40 Switcher Display Gallery Item 1
Blackmagic Design Smart Videohub 12G 40 x 40 Switcher - 2 Display Gallery Item 2
Blackmagic Design Smart Videohub 12G 40 x 40 Switcher - 3 Display Gallery Item 3

Blackmagic Design Smart Videohub 12G 40 x 40 Switcher - FREE Delivery!

By: Blackmagic Design

Model: VHUBSMARTE12G4040

Sku: 40ESHCXC06

Be the first to review this product

Sign up for price alert

Availability: Out of stock New

Availability: Out of stock

  • SDI Video Inputs: 40 x 10-bit SD-SDI, HD-SDI and 12G‑SDI.
  • SDI Video Outputs: 40 x 10-bit SD-SDI, HD-SDI and 12G‑SDI.
  • SDI Rates: DVB-ASI, 270Mb, 1.5G, 3G, 6G, 12G.
  • Video Input Re-Sync: None.
  • SDI Reclocking: On all SDI outputs.
  • Reference Inputs: Tri-Sync or Black Burst.
  • Reference Outputs: Reference terminating loop output.
  • Control Panel Connection: Ethernet.
  • Serial Control Connection: DB-9 RS-422.
  • Router Configuration: Via front panel LCD or RJ45 Ethernet.
  • RS-422 Router Control: input for controlling router crosspoint switching.
  • Operating Systems: Mac 10.14 Mojave, Mac 10.15 Catalina or later, Windows 8.1 and 10.
  • Displays: Built in 5 inch LCD for video and menu settings.
  • Power Supply: 2 x Internal 90 - 240V AC
  • Power Fail Protection: Crosspoint connections preserved and restored instantly at power on.
  • Operating Temperature: 0° to 40° C (32° to 104° F)
Stock Request Notify When Available
  • Add to Wishlist
  • Add to Compare

Advanced 12G-SDI video router supports any SD, HD or Ultra HD SDI format on the same router at the same time. Smart Videohub 12G 40x40 features 40 inputs and 40 outputs and includes video reference, redundant power connections and an elegant machined metal front panel with large full HD LCD for monitoring and routing label display. Routing can be performed by direct button selection and the spin knob controller. 12G-SDI technology supports all SDI video standards up to 2160p60.

In the Box

  • Blackmagic Design Smart Videohub 12G 40 x 40 Switcher
