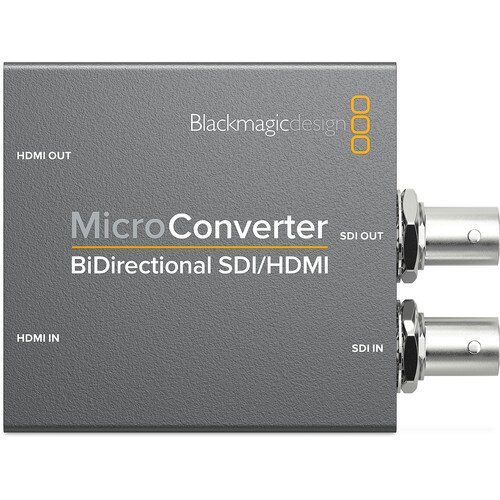

Blackmagic Design Micro Converter BiDirectional SDI/HDMI wPSU
Blackmagic Design Micro Converter BiDirectional SDI/HDMI wPSU Display Gallery Item 1
Blackmagic Design Micro Converter BiDirectional SDI/HDMI wPSU - 2 Display Gallery Item 2
Blackmagic Design Micro Converter BiDirectional SDI/HDMI wPSU - 3 Display Gallery Item 3

Grab Blackmagic Design Micro Converter BiDirectional SDI/HDMI wPSU

By: Blackmagic Design

Model: CONVBDC/SDIHDWPSU

Sku: DL2JVOU7ZR

Be the first to review this product

Sign up for price alert

PKR 41,999

& FREE Two-Day Delivery

Availability: In Stock In Stock

New

  • SDI Video Inputs: SD, HD or 3G-SDI.
  • SDI Video Outputs: Automatically matches the SD, HD or 3G-SDI HDMI video input.
  • HDMI Video Inputs: HDMI Type A in.
  • HDMI Outputs: HDMI Type A out.
  • Multi Rate Support: Auto detection of SD or HD.
  • Updates, Configurations and Power: Micro USB.
  • Reclocking: Yes
  • SDI Video Standards: 525i59.94 NTSC, 625i50 PAL
  • SDI Color Space: YUV
  • SDI Auto Switching: Automatically detects SD, HD and 3G-SDI
  • Software Control: Mac and Windows software via micro USB.
  • Internal Software Upgrade: Via micro USB.
  • Operating Systems: Mac 10.14 Mojave, Mac 10.15 Catalina or later, Windows 8.1 and 10.
  • Power Consumption: 2.5W
  • Operational Voltage Range: 4.4 to 5.25V DC
  • Operating temperature: 0? to 40? C (32? to 104? F)
Quantity:
  • Add to Wishlist
  • Add to Compare

Now you can simultaneously convert SDI to HDMI and HDMI to SDI in any combination of SD and HD formats up to 1080p60 at the same time! Each conversion direction can be a different SD or HD video standard, so it's like getting two converters in one! The multi-rate 3G-SDI input and output connections are compatible with virtually all professional broadcast equipment, including Level A and B devices. It even automatically detects all SD and HD formats! It can even be powered via USB or with the included international power pack.

In the Box

  • Blackmagic Design Micro Converter BiDirectional SDI/HDMI wPSU
