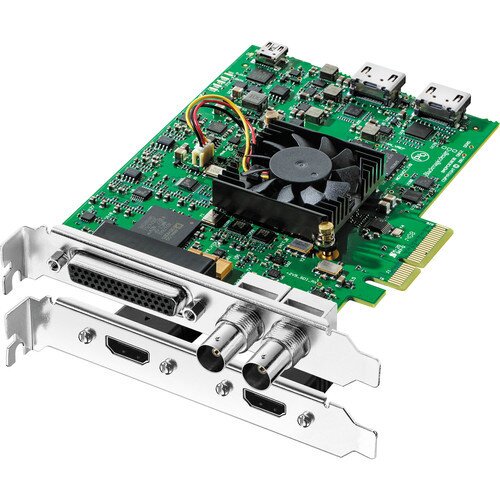

Blackmagic Design DeckLink Studio 4K Capture & Playback Card
Blackmagic Design DeckLink Studio 4K Capture & Playback Card Display Gallery Item 1

Grab Blackmagic Design DeckLink Studio 4K Capture & Playback Card

By: Blackmagic Design

Model: BDLKSTUDIO4K

Sku: I02ADJ2F8C

Be the first to review this product

Sign up for price alert

PKR 233,999

& FREE Standard Delivery

Availability: In Stock In Stock

New

  • Operating temperature: 5° to 40° C (32° to 104° F)
  • Power Consumption: 22 Watts
  • Operating Systems: Mac 10.14 Mojave, Mac 10.15 Catalina or later, Windows 8.1 and 10, both 64-bit, Linux
  • 4K Video Standards: 4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p SDI Only
  • Ultra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30
  • 2K Video Standards (SDI Only): 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p
  • Audio Sampling: Television standard sample rate of 48 kHz at 24 bit.
  • Color Precision: 10-bit
  • Color Space: REC 601, REC 709
  • HDMI Resolution: Pixel for pixel up to 4K resolutions.
  • HDMI Video Sampling: 4:4:4, 4:2:2 & 4:2:0
  • SDI Audio Inputs: 16 Channels embedded in HD/2K/4K. 8 Channels embedded in SD.
  • SDI Audio Outputs: 16 Channels embedded in HD/2K/4K. 8 Channels embedded in SD.
  • HDMI Video Inputs: HDMI type A connector.
  • HDMI Video Outputs: HDMI type A connector.
  • HDMI Audio Inputs: 8 Channels embedded in SD, HD, 4K.
  • HDMI Audio Outputs: 8 Channels embedded in SD, HD, 4K
  • SDI Video Inputs: 10-bit SD/HD/2K/4K. Supports 6G 4:2:2 and 3G 4:4:4.
  • SDI Video Outputs: 10-bit SD/HD/2K/4K. Supports 6G 4:2:2 and 3G 4:4:4.
  • Analog Audio Inputs: 4 Channels of professional balanced analog audio via 1/4 inch jack connectors.
  • Analog Audio Outputs: 4 Channels of professional balanced analog audio via 1/4 inch jack connectors. Channels 3 & 4 can switch to AES/EBU outputs.
Quantity:
  • Add to Wishlist
  • Add to Compare

If you work with a wide range of analog video and audio gear, and need to move seamlessly between SD, HD, 2K and Ultra HD, then DeckLink Studio 4K is perfect! DeckLink Studio 4K includes a massive number of analog and digital video connections including SD/HD/Ultra HD 6G-SDI, HDMI 1.4b, SD/HD component, composite, S-video, 4 ch balanced analog audio, 2 ch AES/EBU switchable to 6 ch out, Black Burst and Tri-Sync reference input, RS-422 deck control connections, keying in SD and a hardware down converter. Perform editing, paint and broadcast design and more with the ultimate future proof design!

In the Box

  • Blackmagic Design DeckLink Studio 4K Capture & Playback Card
  • HDMI Bracket
  • SD Card
  • Breakout Cable for Analog and RS-422 Control
