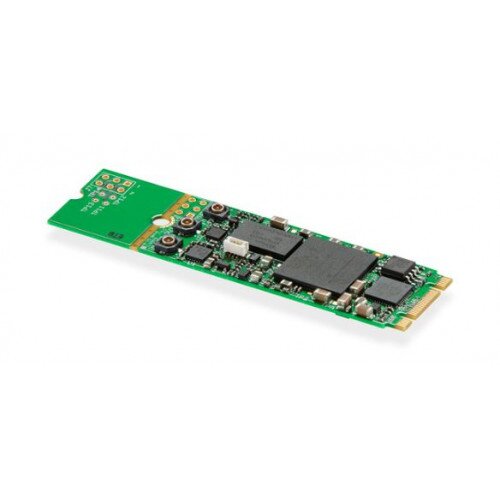

Blackmagic Design DeckLink SDI Micro Capture Card
Blackmagic Design DeckLink SDI Micro Capture Card Display Gallery Item 1

Blackmagic Design DeckLink SDI Micro Capture Card Price in Pakistan

By: Blackmagic Design

Model: BDLKMICROSDI

Sku: FNUWZAYZEM

Be the first to review this product

Sign up for price alert

Availability: Out of stock New

Availability: Out of stock

  • Operating Temperature: -25°C to 55°C (-13°F to 131°F)
  • Power Consumption: 4.03W (max)
  • Operating Systems: Windows 8.1 and 10, both 64-bit, Linux
  • M.2: M.2 PCI Express 1 lane generation 3, compatible with B and M key type 2260 and 2280.
  • SDI Video Sampling: 4:2:2, 4:4:4
  • SDI Color Precision: 8, 10, 12-bit RGB 4:4:4 in all modes up to 1080p30 and 8, 10-bit YUV 4:2:2 in all modes.
  • SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, ITU-R BT.656 and ITU-R BT.601.
  • SD Video Standards: 525i59.94 NTSC, 625i50 PAL
Stock Request Notify When Available
  • Add to Wishlist
  • Add to Compare

Miniature M.2 card with 3G‑SDI connections for simultaneous capture and playback in all SD and HD formats up to 1080p60. DeckLink SDI Micro also includes Black Burst and Tri‑Sync reference input and its miniature size makes it great for use on portable solutions which are based on compact computers!

In the Box

  • Blackmagic Design DeckLink SDI Micro Capture Card
