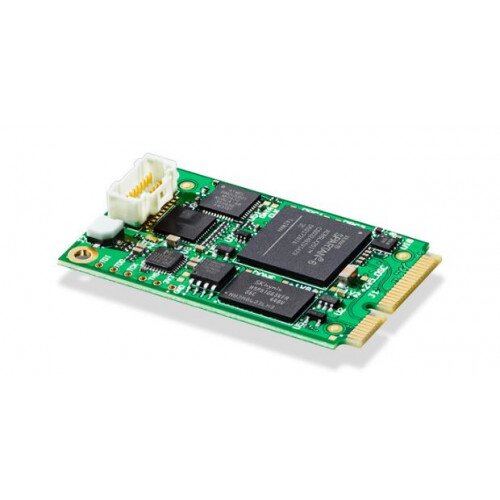

Blackmagic Design Decklink Micro Recorder Capture Card
Blackmagic Design Decklink Micro Recorder Capture Card Display Gallery Item 1

Blackmagic Design Decklink Micro Recorder Capture Card - Shop Now!

By: Blackmagic Design

Model: BDLKMICROREC

Sku: LRFYHA2TIY

Be the first to review this product

Sign up for price alert

Availability: Out of stock New

Availability: Out of stock

  • Operating Temperature: -25°C to 55°C (-13°F to 131°F)
  • Power Consumption: 3 Watts max
  • Operating System: Windows 8.1 and 10, both 64-bit, Linux
  • SD Format Support: 525i/59.94 NTSC, 625i/50 PAL.
  • Video Sampling: 4:2:2.
  • Color Precision: 8, 10-bit YUV 4:2:2.
  • Compliance: SMPTE 259M, 292M, 296M, and HDMI.
  • PCIx1 Gen 1: PCI Express Mini Card Electromechanical Specification. Note, however, that the HDMI connector height (8.0mm) exceeds the 3.0mm height specification.
  • HD Format Support: 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080i50, 1080i59.94, 1080i60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30.
Stock Request Notify When Available
  • Add to Wishlist
  • Add to Compare

The DeckLink Micro Recorder is a low-latency miniature video capture card for all SD and HD formats up to 1080p30. Compatible with computers that have a 1-lane Gen 1 Mini PCIe slot, SDI or HDMI video inputs can be added using the built in Hirose® and Molex® connectors.

In the Box

  • Blackmagic Design Decklink Micro Recorder Capture Card
