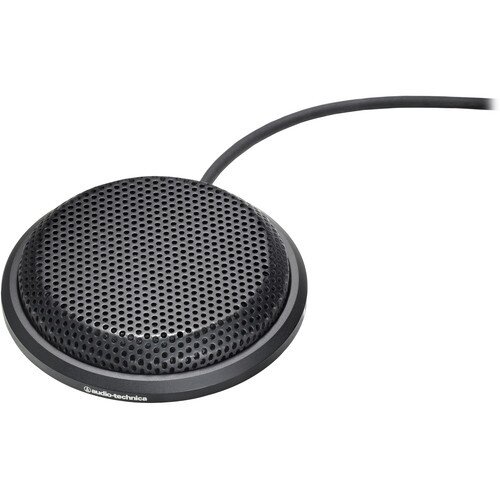

Audio-Technica U843R Three-Element Multidirectional Boundary Microphone Price in Pakistan

By: Audio-Technica

Model: U843R

Sku: VE2TTW7UBL

PKR 85,899

& FREE Standard Delivery

Availability: In Stock In Stock

New

  • ELEMENT: Fixed-charge back plate, permanently polarized condenser
  • POLAR PATTERN: Cardioid x 3
  • FREQUENCY RESPONSE: 75-15,000 Hz
  • LOW FREQUENCY ROLL-OFF: 80 Hz, 18 dB/octave
  • OPEN CIRCUIT SENSITIVITY: -37 dB (14.1 mV) re 1V at 1 Pa
  • IMPEDANCE: 100 ohms
  • MAXIMUM INPUT SOUND LEVEL: 134 dB SPL, 1 kHz at 1% T.H.D.DYNAMIC RANGE (typical): 105 dB, 1 kHz at Max SPL
  • SIGNAL-TO-NOISE RATIO: 65 dB, 1 kHz at 1 Pa
  • PHANTOM POWER REQUIREMENTS: 11-52V DC, 2 mA typical
  • Three cardioid condenser elements mounted in a single housing
  • Easily reposition two elements (via levers on the microphone base) to offer 360° or 300° coverage; each element can be powered and used individually or in any combination
  • Also functions as a stereo boundary microphone
  • Provides full, efficient and flexible coverage – fewer microphones required
  • Small-diameter capsules near boundary eliminate phase distortion and deliver clear, high-output performance
  • Low-frequency attenuation improves sound pickup without affecting voice quality
Quantity :

With three cardioid condenser elements in a single housing, the phantom-powered U843R offers a remarkably versatile tool for surface-mount installations. It is ideal for a variety of video and audio conferencing applications, especially when used with an Audio-Technica automatic SmartMixer. Levers on the microphone base allow easy reorientation of two elements to offer 360° or 300° coverage. Since elements can be powered and used individually or in any combination, further flexibility is easily achieved. For example, with two elements powered, the microphone can provide a figure-of-eight polar pattern; with a single element powered, the microphone functions as a standard cardioid boundary microphone. Installation and repositioning are extremely quick, thanks to four recessed pathways on the base of the microphone that enable the user to route the cable as required to accommodate any installation requirements; no tools or disassembly are needed. The microphone also offers Audio-Technica’s innovative UniGuard RFI-shielding technology.

In the Box

  • Audio-Technica U841R Omnidirectional Condenser Boundary Microphone
  • 25' TA3 Female to XLR Male Cable
  • Protective Pouch
