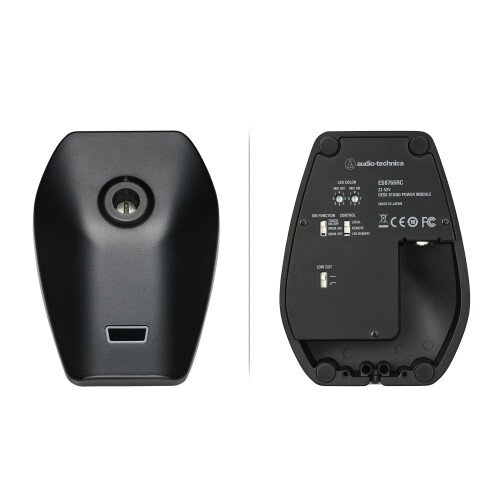

Audio-Technica ES8766RC 5-Pin Desk Stand Power Module Price in Pakistan

By: Audio-Technica

Model: ES8766RC

Sku: 382TT1CDIT

Availability: Out of stock New

Availability: Out of stock

  • Low-Frequency Roll-Off: 80 Hz, 18 dB/octave
  • Impedance: 130 ohms
  • Switches: Activation: on/off
  • LED Color: mic on, mic off
  • Switch function: touch on/off, momentary on, momentary off
  • Control: local, remote, LED remote
  • Low cut: on/off
  • Phantom Power Requirements: 22-52V DC
  • Contact Closure: Closure input voltage: -0.5 – 5.5V
  • Maximum permissible power: 200 mW
  • On-resistance: 100 ohms
  • LED control: Active high (+5V DC) TTL compatible
  • Active low voltage: 1.2V or lower
  • Maximum permissible input power: -0.5 – 5.5V
  • Maximum permissible power: 200 mW
  • 5-pin desk stand power module for use with ES925 goosenecks and microphone elements
  • Logic I/O capability permits control of remote devices from the desk stand’s touch-sensitive capacitive-type user switch
  • Capacitive touch switch can be set to any one of three operating modes: “touch-on/touch-off,” “touch-to-talk” and “touch-to-mute”
  • Equipped with highly visible, two-state RGB LED status indicator
Quantity :

The ES8766RC desk stand power module works with ES925 goosenecks and microphone elements. The desk stand features a 5-pin TB5M-type output connector, heavy die-cast construction, and no-slip bottom pads to minimize coupling of surface vibration to the microphone. It is equipped with a touch-sensitive capacitive-type user switch with local and remote switching options. Locally, it can be set to any one of three operating modes: “touch-on/touch-off,” “touch-to-talk” and “touch-to-mute.” For enhanced control in conference and boardroom installations, the unit’s external contact closure allows you to trigger an external device, such as a camera or the lighting, from the switch. The desk stand is also equipped with a highly visible, two-state RGB LED status indicator and a UniSteep filter that provides steep low-frequency attenuation to improve sound pickup without affecting vocal reproduction quality.

In the Box

  • Audio-Technica ES8755R 3-Pin Flush-Mount Power Module
