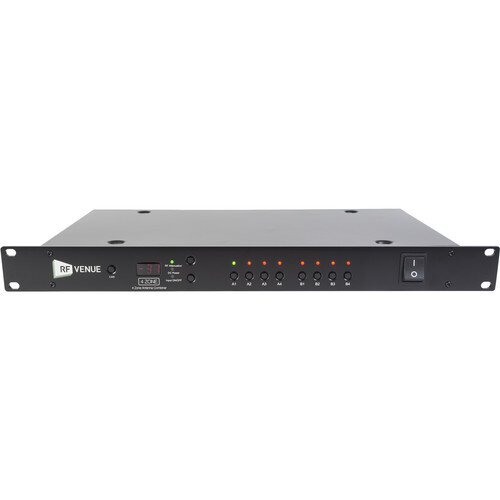

Audio-Technica 4 ZONE Antenna Combinerfor Wireless Mic Receivers Price in Pakistan

By: Audio-Technica

Model: 4 ZONE

Sku: 7MDHCFKJTU

PKR 145,199

& FREE Standard Delivery

Availability: In Stock In Stock New

  • Operating frequency: 470 to 960 MHz
  • Full system gain: : 3 dB (±3 dB)
  • Input/output impedance: 50 ohms
  • A/B antenna input: 4 + 4
  • OIP3: 35 dBm (typ.) @ 2-tone; Pi=-15 dBm/tone
  • RF input attenuation: -31 ~0 dB (step: 1 dB)
  • Input connectors: BNC female (x 8)
  • Output connectors: BNC female (x 2)
  • In-line amplifier power: 12V/200 mA*8
  • Power supply: 100-240V AC, 50/60 Hz, max 2A:
Quantity :

The 4 ZONE antenna combiner takes the complexity out of multizone wireless microphone projects. This wideband combiner (470-960 MHz) brings together up to four separate pairs of diversity antenna connections for multipurpose rooms, indoor-outdoor configurations, or main stages with secondary breakout rooms.

For fine tuning RF levels in each coverage area, 4 ZONE provides individual channel RF signal attenuation control down to -31dB in 1 dB steps. And for active antennas or in-line amplifiers, it features selectable 12V DC power to accommodate long cable runs.

With selectable on/off inputs, 4 ZONE also allows for quick control of coverage zones for roaming microphone transmitters, so you can choose which zones are active. When used in conjunction with up to four Diversity Fin Antennas and one or more DISTRO4 antenna distributors, 4 ZONE completes a turnkey package for any multizone wireless microphone project.

In the Box

  • Audio-Technica 4 ZONE Antenna Combinerfor Wireless Mic Receivers
  • AC cable
  • BNC-to-BNC coaxial cable (x 2)
