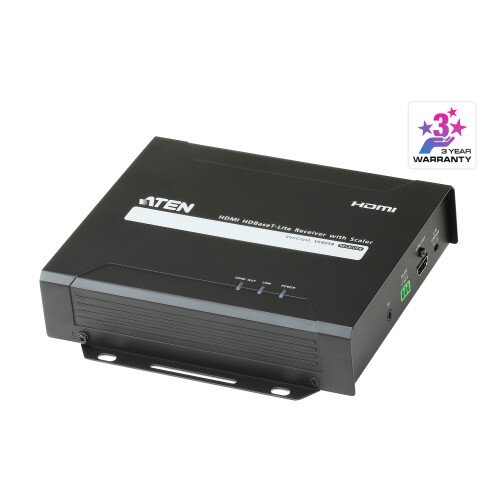

ATEN HDMI HDBaseT-Lite Receiver with Scaler (1080p 70m) (HDBaseT Class B)
ATEN HDMI HDBaseT-Lite Receiver with Scaler (1080p 70m) (HDBaseT Class B) Display Gallery Item 1
ATEN HDMI HDBaseT-Lite Receiver with Scaler (1080p 70m) (HDBaseT Class B) - 2 Display Gallery Item 2
ATEN HDMI HDBaseT-Lite Receiver with Scaler (1080p 70m) (HDBaseT Class B) - 3 Display Gallery Item 3

Grab ATEN HDMI HDBaseT-Lite Receiver with Scaler (1080p 70m) (HDBaseT Class B)

By: ATEN

Model: VE805R

Sku: GJK7MSJ4G6

Be the first to review this product

Sign up for price alert

Availability: Out of stock New

Availability: Out of stock

  • Extends HDMI, RS-232, and IR signals up to 70 m over a single Cat 5e/6/6a cable
  • HDMI (3D, Deep Color) ; HDCP 1.4 compliant
  • Superior video quality – 1080p@60m (Cat 5e/6); 70m (Cat 6a)
  • Scaler – scales videos of different resolutions to their optimal output for display and to avoid black screen*
  • Video Wall – features video wall profiles that allows for custom screen layouts via an intuitive web GUI**
  • Seamless Switch – close-to-zero second switching that provides continuous video streams, real-time switching, and stable signal transmissions**
  • HDBaseT Anti-jamming – resists signal interference during high-quality video transmissions using HDBaseT technology
  • Bi-directional RS-232 channel – allows for control using serial terminals or serial devices, such as touch screens and barcode scanners
  • Bi-directional IR channel – IR transmission is processed one direction at a time***
  • Firmware upgradeable
  • Built- in 8KV / 15 KV ESD protection
  • Plug-and-play
  • Rack-mountable
  • Note:
  • 1. Videos may not display within range when Seamless Switch or Video Wall is enabled, in which case please adjust the display settings on your device.
  • 2. The Seamless Switch and video wall functionalities are available when the VE805R is used with ATEN HDBaseT Matrix. For further information, please see the compatible list below
  • 3. Supports full-frequency IR signals from 30 KHz to 56 KHz.
  • Video Input:
  • Interfaces: 1 x RJ-45 Female (Silver)
  • Impedance: 100 Ω
  • Video Output:
  • Interfaces: 1 x HDMI Type A Female (Black)
  • Impedance: 100 Ω
  • Max. Distance: 3 m
  • Video:
  • Max. Data Rate: 6.75 Gpbs (2.25 Gbps per lane)
  • Max. Pixel Clock: 225 MHz
  • Compliance: HDMI (3D, Deep Color), HDCP 1.4 Compatible, HDBaseT Compatible
  • Max. Resolutions / Distance: Up to 1080p @60m (Cat 5e/6); 70m (Cat 6a)
  • Control:
  • RS-232: 1 x Captive Screw Connector, 3 Pole
  • IR: 1 x Mini Stereo Jack Female (Black)
  • Connectors: Power: 1 x DC Jack (Sliver)
  • Switches: Firmware Upgrade: 1 x Slide Switch
  • Power Consumption: DC5V:8.36W:39BTU
  • Environmental:
  • Operating Temperature: 0 - 50°C
  • Storage Temperature: -20 - 60°C
  • Humidity: 0 - 80% RH, Non-Condensing
  • Physical Properties: Housing: Metal
Stock Request Notify When Available
  • Add to Wishlist
  • Add to Compare

The VE805R HDMI HDBaseT-Lite Receiver with Scaler can be combined with ATEN HDMI HDBaseT products to extend your HDMI display up to 60 m from your HDMI source device using a single Cat 5e/6a cable.

With a built-in scaler, the VE805R supports scaling the display of different video resolutions. When combined with the ATEN VM8514 HDBaseT Output Board, it supports video wall integration and Seamless Switch functions. In addition, the VE805R is equipped with RS-232 and IR signaling pass-through, which allows RS-232 and IR channels to be controlled either from the remote to local unit or from the local to remote unit, for bi-directional control of the source or display device.

In the Box

  • ATEN HDMI HDBaseT-Lite Receiver with Scaler (1080p 70m) (HDBaseT Class B)
  • Power Adapter
  • IR Transmitter
  • IR Receiver
  • Terminal Block
  • User Instructions
