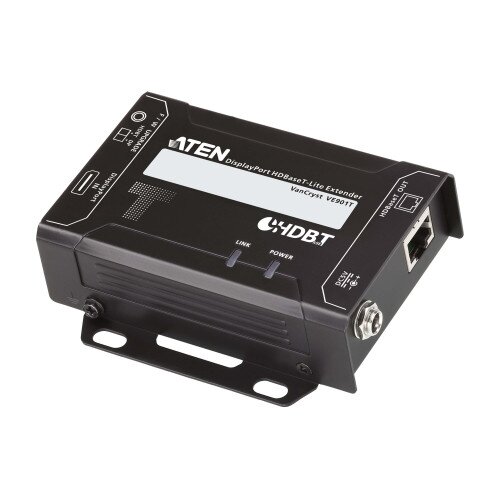

ATEN DisplayPort HDBaseT-Lite Transmitter (4K 40m; 1080p 70m)
ATEN DisplayPort HDBaseT-Lite Transmitter (4K 40m; 1080p 70m) Display Gallery Item 1
ATEN DisplayPort HDBaseT-Lite Transmitter (4K 40m; 1080p 70m) - 2 Display Gallery Item 2
ATEN DisplayPort HDBaseT-Lite Transmitter (4K 40m; 1080p 70m) - 3 Display Gallery Item 3
ATEN DisplayPort HDBaseT-Lite Transmitter (4K 40m; 1080p 70m) - 4 Display Gallery Item 4

Grab ATEN DisplayPort HDBaseT-Lite Transmitter (4K 40m; 1080p 70m)

By: ATEN

Model: VE901T

Sku: EV91DH16DL

Be the first to review this product

Sign up for price alert

PKR 73,499

& FREE Standard Delivery

Availability: In Stock In Stock

New

  • HDBaseT Connectivity – extends a DisplayPort connection up to 70 meters via a single Cat 6a cable or ATEN 2L-2910 Cat 6 cable
  • DisplayPort v1.1*; HDCP 1.4 compliant
  • Superior video quality – 4K @ 35 m (Cat 5e/6) / 40 m (Cat 6a/ATEN 2L-2910 Cat 6 cable) and 1920 x 1080 @ 60m (Cat 5e/6) / 70m (Cat 6a/ATEN 2L-2910 Cat 6 cable)
  • HDBaseT Anti-Jamming – resists signal interference during video transmission using HDBaseT technology
  • Featuring 3.3V / 500mA power output for powering auxiliary devices
  • Plug-and-play
  • Rack-Mountable
  • *Note: DisplayPort v1.1 supports up to 4Kx2K @ 30Hz.
  • Video Input:
  • Interfaces: 1 x DisplayPort Female (Black)
  • Impedance: 100 Ω
  • Max. Distance: 1.5 m
  • Video:
  • Max. Data Rate: 10.2Gbps (3.4Gbps per lane)
  • Max. Pixel Clock: 297 MHz
  • Compliance: DisplayPort (Deep Color, 4K), HDCP Compatible
  • Max. Resolutions / Distance: Up to 4K@35m (Cat 5e/6) / 40m (Cat 6a/ATEN 2L-2910 Cat6); 1080p@60m (Cat 5e/6) / 70m (Cat 6a/ATEN 2L-2910 Cat6) *4K supported: 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
  • Audio:
  • Output: N/A
  • Input: 1 x DisplayPort Female (Black)
  • Connectors:
  • Power: 1 x DC Jack (Black) with locking
  • Unit To Unit: 1 x RJ-45 Female
  • Power Consumption: DC5V:2.84W:13BTU
  • Environmental:
  • Operating Temperature: 0-40°C
  • Storage Temperature: -20 - 60°C
  • Humidity: 0 - 80% RH, Non-Condensing
  • Physical Properties: Housing: Metal
Quantity:
  • Add to Wishlist
  • Add to Compare

The VE901T DisplayPort HDBaseT-Lite Transmitter is able to extend a DisplayPort display up to 70 m using a Cat 6/6a/ATEN 2L-2910 Cat 6 cable. This combination of ATEN and HDBaseT technology supports sharing 4K media up to 40 m away, offering a simple, adaptable, and cost-effective solution for any professional A/V installation.

The VE901T DisplayPort HDBaseT-Lite Transmitter is the perfect choice for professional A/V installations that require video signal interference protection, such as in medical and military installations. With its lightweight and easy-to-mount design, and a slip-resistant DC Jack lock mechanism, the VE901T can be installed in a multitude of locations while ensuring peace of mind with its reliability.

In the Box

  • ATEN DisplayPort HDBaseT-Lite Transmitter (4K 40m; 1080p 70m)
  • Power Adapter
  • User Instructions
