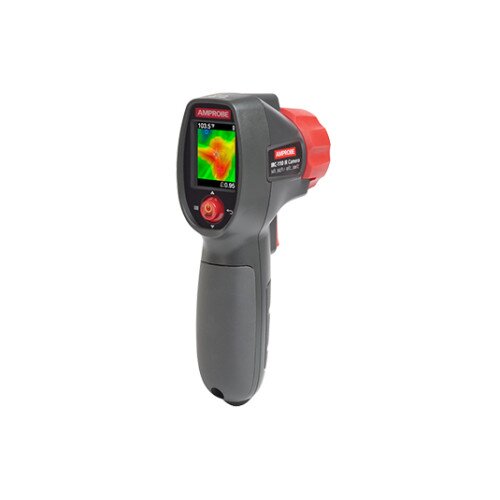

Amprobe IRC-110 Thermal Camera
Amprobe IRC-110 Thermal Camera Display Gallery Item 1
Amprobe IRC-110 Thermal Camera - 2 Display Gallery Item 2
Amprobe IRC-110 Thermal Camera - 3 Display Gallery Item 3
Amprobe IRC-110 Thermal Camera - 4 Display Gallery Item 4

Amprobe IRC-110 Thermal Camera Price in Pakistan

By: Amprobe

Model: 4909782

Sku: KXSBOCMT6H

Be the first to review this product

Sign up for price alert

Availability: Out of stock New

Availability: Out of stock

  • Infrared heat map image blending at 0%, 25%, 50%, 75%, and 100%
  • Three selectable color palettes: grey scale, hot iron and rainbow
  • Center-point temperature measurement
  • Focus free lens
  • 20:1 Distance to Spot ratio
  • Adjustable emissivity from 0.10 to 1.00
  • Auto off function to save battery life
  • Selectable °F and °C temperature units
  • Joystick navigation
  • Hot and cold markers
  • Built-in digital camera: Yes
  • Infrared heat map overlay Five blending modes: 0%, 25%, 50%, 75%, 100%
  • Color palettes: Grey Scale, Hot Iron, Rainbow
  • Field of view: 33 ° x 33 °
  • Focus system: Focus free
  • IR temperature range: 14 °F to 932 °F (-10 °C to 500 °C)
  • Distance to Spot ratio (D:S): 20:1
  • Emissivity: 0.10 to 1.00
  • Display resolution: 0.2 °F/0.1 °C
  • Hot and cold markers: Yes
  • Center point marker: Yes
  • Temperature units: Selectable °F/°C
  • Auto power off: Yes
  • Temperature measurement: Yes, center point
  • Temperature range: 14 °F to 932 °F (-10 °C to 500 °C)
  • IR accuracy (calibration geometry with ambient temperature 23°C ± 2°C): ≥ 32 °F (≥ 0 °C): ± 4 °F (± 2 °C) or ± 2 % of the reading, whichever is greater < 32 °F (< 0 °C): ± 6 °F (± 3 °C)
  • Display resolution: 0.2 °F / 0.1 °C
  • IR repeatability: ± 0.8 % of the reading or ± 2 °F (± 1 °C), whichever is greater
  • Temperature coefficient: 0.1 °C/°C or ± 0.1 %/°C of the reading, whichever is greater
  • Distance to spot: 20:1
  • Minimum spot size: 0.31 in (8 mm)
  • Response time (95 %): < 125 ms
  • Spectral response: 8 μm to 14 μm
  • Emissivity: Digitally adjustable from 0.10 to 1.00 by 0.01
  • Visual image with infrared heat map overlay: Five blending modes (0%, 25%, 50%, 75% and 100%)
  • Visual to IR effective image alignment: ≥ 10 inches
  • Visual Image resolution: 16,384 pixels (128 x 128 pixels)
  • Screen resolution: 20,480 pixels (128 x 160 pixels)
  • vField of view: 33 ° x 33 °
  • Thermal sensitivity: 150 mK
  • Focus system: Focus free
  • Image palettes: Grey Scale (white hot), Hot Iron and Rainbow
  • Hot and cold marker: Yes
  • Display: 1.77 in color TFT with 128 x 160 pixels
  • Operating temperature and humidity: 32 °F to 122 °F (0 °C to 50 °C) 10 % to 90 % RH non-condensing at 86 °F (30 °C)
  • Storage temperature: -4 °F to 140 °F (-20 °C to 60 °C) without battery
  • Operating and storage altitude: < 6561 ft (< 2000 m)
  • Drop proof: 4 ft (1.2 m)
  • Vibration and shock: IEC 60068-2-6, 2.5g, 10 to 200 Hz, IEC 60068-2-27, 50g 11ms
  • Power supply: Three (3) 1.5 V AA IEC LR6 alkaline batteries
  • Battery life: 16 hours with display ON (Typical)
  • Auto power off: Selectable modes: OFF, 1 minute, 2 minutes, 5 minutes and 10 minutes
  • Electromagnetic Compatibility: EN 61326-1, EN 61326-2 Korea (KCC): Class A Equipment (Industrial Broadcasting Communication Equipment) [1] [1] This product meets requirements for industrial (Class A) electromagnetic wave equipment and the seller or user should take notice of it. This equipment is intended for use in business environments and is not to be used in homes.
Stock Request Notify When Available
  • Add to Wishlist
  • Add to Compare

The Amprobe IRC-110 thermal camera, designed for the professional, is rugged with point-and-shoot functionality to give you a visual heat map image for quick and accurate identification of temperature related issues. Troubleshoot electrical connections, motors, HVAC and electrical, and insulation leaks around buildings to identify potential energy savings.

In the Box

  • Amprobe IRC-110 Thermal Camera
  • Batteries
  • Wrist strap
