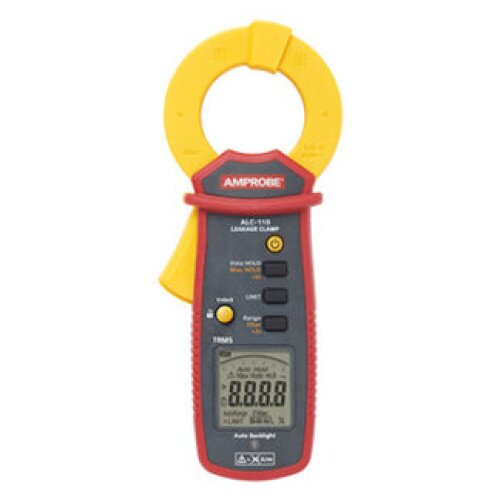

Amprobe ALC-110 Leakage Current Clamp Price in Pakistan

By: Amprobe

Model: 4930876

Sku: T4ZGS15B8R

Availability: Out of stock New

Availability: Out of stock

  • Measure: Earth and differential leakage currents /Leakage currents through the earth (PE) conductor /Appliance current consumption without interruptions to the circuit
  • Trace the source of earth leakage currents
  • Identify intermittent GFCI trips without switching equipment off
  • Check a system for an electrical break of insulation where current is flowing to the ground
  • For use where industrial leakage current testing is required
  • Low frequency magnetic fields: ≤ 30 A/m, operating class 2 @ IN : 3.500 mA to 600.0 mA / 40 Hz to 1 kHz
  • Measurement category: CAT III 600 V
  • True-rms: Yes
  • AC frequency: 15 Hz to 1 kHz
  • Low pass filter: 50 – 60 Hz, for appliance measuring acc. EN61557-16 amendment A, no filter
  • Limit judgement: 0.25 mA, 0.5 mA, 3.5 mA, 10 mA, 12 mA
  • Jaw opening: 1.2 in (30 mm) max.
  • Jaw locking: Yes
  • Backlight function: Yes
  • Overload protection: 60 A
  • Auto power off: Idle 20 minutes
  • Auto ranging: Yes
  • Max hold: Yes
  • Data hold: Yes
  • Complies with IEC/EN 61557-13: Yes
  • Built according IEC/EN 61010-2-032: Yes
Stock Request Notify When Available

Prevent unplanned downtime by detecting leakage currents with the ALC-110 Leakage Current Clamp. Rated CAT III 600 V to ensure electrical safety, the ALC-110 is designed to resist external magnetic fields for highly accurate readings. Features TRMS, a mechanical jaw lock, max readings and hold functions, highest resolution of 0.001 mA (measure up to 60 A), broad frequency range (15 Hz to 1 kHz), selectable filters (low pass, appliance, no filter), selectable limits (0.25 mA, 0.5 mA, 3.5 mA, 10 mA, 12 mA) and a battery-saving design.

In the Box

  • Amprobe ALC-110 Leakage Current Clamp
  • 2 x AAA Batteries
  • Soft Carrying Case
