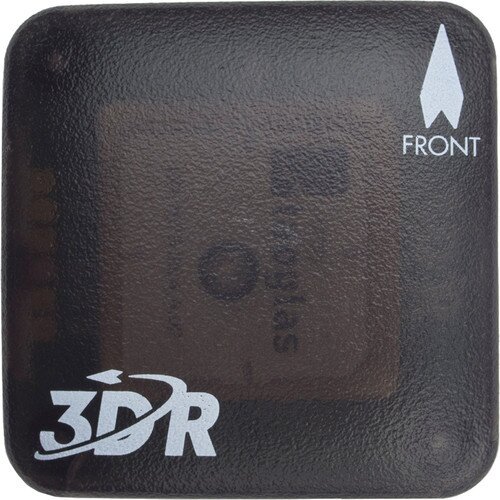

3DR uBlox GPS with Compass Kit Price in Pakistan

By: 3D Robotics

Model: GPS-KIT-0003

Sku: AAUVZ605EH

Availability: Out of stock New

Availability: Out of stock

  • GPS with Compass module
  • Protective case
  • Four-position cable (compass)
  • Five-position-to-six-position cable (GPS) for APM or PX4
  • Pixhawk users will find a six-position cable included with the Pixhawk kit to connect the GPS with Compass module to Pixhawk.
  • u-blox NEO-7 module
  • 5 Hz update rate
  • 25 x 25 x 4 mm ceramic patch antenna
  • LNA and SAW filter
  • Rechargeable 3V lithium backup battery
  • Low noise 3.3V regulator
  • I2C EEPROM for configuration storage
  • Power and fix indicator LEDs
  • Protective case
  • APM compatible 6-pin DF13 connector
  • Exposed RX, TX, 5V and GND pad
  • 38 x 38 x 8.5 mm total size, 16.8 grams.
Stock Request Notify When Available

The 3DR u-blox GPS with Compass has now been updated to the new u-blox NEO-7 GPS module.

An excellent solution for multicopters and rovers in particular, where GPS accuracy is paramount. It features active circuitry for the ceramic patch antenna, rechargeable backup battery for warm starts, and I2C EEPROM for configuration storage. The units ship pre-configured for use with Pixhawk; the configuration file is available in the repository.

In the Box

  • 3DR uBlox GPS with Compass Kit
  • Protective Case
  • Four-Position Cable (for Compass)
  • Five-Position-to-Six-Position Cable (for GPS when using APM or PX4)
