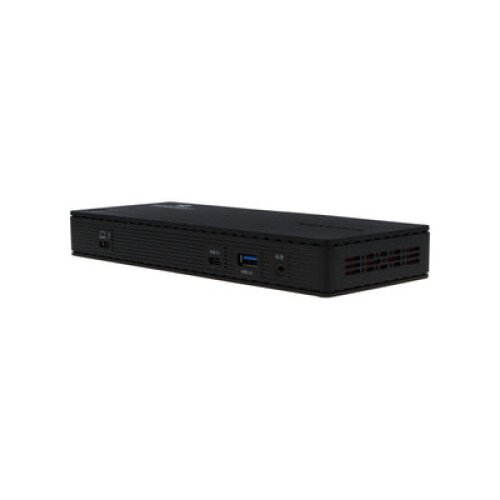

Increase productivity with our plug and play, power delivery docking station, the VisionTek VT4800 Thunderbolt 3 and USB-C Docking Station with Power Delivery for Windows and Mac laptop systems. With a single USB-C or TB3 connection, you can connect up to two external monitors, transfer files and data at up to 10Gbps, play audio, charge mobile devices and your system.
With a single USB-C or Thunderbolt 3 connection, you can connect two displays, transfer files and data at up to 10Gbps, play audio, charge mobile devices and your system. Increase productivity with the VisionTek VT4800 Thunderbolt 3 USB-C Hybrid Docking Station with Power Delivery for Windows and Mac laptop systems.
Host System must support USB-C DP Alt Mode for video output over USB-C
Host System must support HBR3 DP 1.4 for 4K 60Hz output
- Supports 2 Displays (DP) via Thunderbolt 3 or DisplayPort over USB-C
- USB-C or Thunderbolt connection to host system
- 2x DP, 4x USB, USB-C, Audio, Ethernet, Kensington Lock
- Universal compatibility with USB-C and Thunderbolt 3 systems
- Compatible with M1 Mac
- Supports up to 2 external displays
- Up to 60W USB-C Power Delivery
- 2 x USB 3.1 Gen 2 Ports 10Gbps
- 2 x USB 3.1 Gen 1 Ports 5Gbps
- 2 x DisplayPort 1.4
- RJ45 Gigabit Ethernet Port
- Kensington Security Lock Slot
- Enterprise Features: Wake on LAN, MAC Address Pass-Through, PXE Boot
- Front Ports: Thunderbolt 3/USB-C to System Port, USB-C 3.1 Gen 2 Port, USB 3.1 Gen 1 Port, 3.5mm Combo Audio/Microphone Jack
- Top Ports: Power Button with Light
- Back Ports: Kensington Security Lock Slot, Gigabit Ethernet Port, USB 3.1 Gen 1 Port, 2 x USB 3.1 Gen 2 Ports, 2 x DisplayPort Ports, DC 20V/6.5A Barrel Power Port
- Display Outputs Supported: Thunderbolt 3 Connection: Single Display Support: DisplayPort: Resolutions up to 7680 × 4320 30Hz (8K)
- Dual Display Support: DisplayPort: Resolutions up to 3840 x 2160 60Hz (4K)
- USB-C Connection: Single Display Support: DisplayPort: Resolutions up to 3840 x 2160 60Hz (4K)2
- Dual Display Support: DisplayPort: Resolutions up to 3840 x 2160 60Hz (4K)2
- Dock Connection: Thunderbolt 3 / USB-C
- Display Technology: Thunderbolt 3 / DP Alt Mode
- Power Adapter: 130W - DC 20V/6.5A
- Displays Supported: 2
- Maximum Resolution Supported: 4K 60Hz (3840 x 2160) DisplayPort, 2 x 4K 60Hz (3840 x 2160) DisplayPort
- Video Interfaces: 2x DP 1.4
- Ports: (2) USB-A 3.1 Gen 1, (2) USB-A 3.1 Gen 2, USB-C 3.1 Gen 2, 3.5mm Audio/Microphone Combo Port, RJ45 Gigabit Ethernet
- Cable Length: 0.7m - Thunderbolt 3
- Operating Systems: Windows 10, macOS 10.12 and later
- System Support Requirement: Thunderbolt 3, Thunderbolt 4 or USB-C 3.2 Gen 2 with Power Delivery and DP Alt Mode
- Dock to System Connection: USB-C, Thunderbolt 3
- Operating Temperature: 0 to 40° C (32 to 104° F)
- Storage Temperature: -10 to 70° C (-14 to 158° F)
- Relative Humidity: 10% to 90% non-condensing - Operational / Storage
