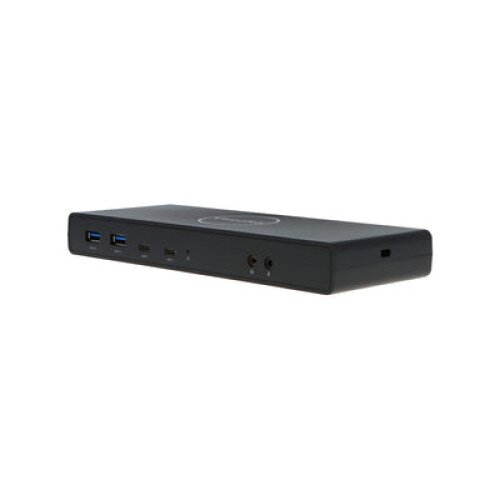

The VisionTek VT4500 Dual Display 4K Docking Station with Power Delivery allows you to easily connect your Windows , Mac or Chrome laptop to dual-4K displays and up to 8 accessories and peripherals through a single USB connection.
This high-quality dock is a single-cable solution that enables you to take full advantage of up to two additional 4K displays, 4 USB-A devices, 2 USB-C devices including full sized keyboard and mouse, external storage and mobile devices for charging and data transfer as well as up to 60W of Power Delivery.
Windows systems support up to two external displays extended or cloned
macOS systems support up to two external displays extended or cloned with latest drivers
- Supports 2 Displays (HDMI or DP) via Displaylink
- USB-C or USB-A connection to host system
- 2x HDMI, 2x DP, 4x USB Ports, 2x USB-C, Audio, Ethernet, Kensington Lock
- 60W of Power Delivery via USB-C, USB-A does not provide power
- Universal Compatibility for USB 3.0 & Type-C
- Compatible with M1 Mac
- Supports up to 2 external displays
- Up to 60W USB-C Power Delivery
- 4 x USB 3.0 Ports 5Gbps
- 2 x USB-C Ports 5Gbps
- 2 x DisplayPort 1.3
- 2 x HDMI 2.0
- RJ45 Gigabit Ethernet Port
- Enterprise Features: Wake on LAN, MAC Address Pass-Through, PXE Boot
- Front Ports: 2 x USB 3.0 Ports, 2 x USB-C 3.1 Gen1 Ports, 3.5mm Audio Jack, 3.5mm Microphone Jack, Power Indicator Light - Blue LED When Powered On
- Back Ports: Power Switch, DC 20V/5A Power Supply Port, Gigabit Ethernet Port, 2 x HDMI Ports, 2 x DisplayPort Ports, 2 x USB 3.0 Ports, USB-C to System Port
- Display Outputs Supported: Single Display Support: DisplayPort: Resolutions up to 4096 x 2160 60Hz (4K), HDMI: Resolutions up to 4096 x 2160 60Hz (4K), Dual DisplayPort: Resolutions up to 5120 x 2880 60Hz (5K),
- Dual Display Support: DisplayPort + DisplayPort: Resolutions up to 4096 x 2160 60Hz (4K), HDMI + HDMI: Resolutions up to 4096 x 2160 60Hz (4K), DisplayPort + HDMI: Resolutions up to 4096 x 2160 60Hz (4K)
- Dock Connection: USB-C, USB 3.0
- Display Technology: DisplayLink
- Power Adapter: 100W - DC 20V/5A
- Power Delivery: Up to 60W
- Displays Supported: 2
- Maximum Resolution Supported: 2 x 4K 60Hz
- Video Interfaces: 2x DP 1.3, 2x HDMI 2.0
- Ports: 4x USB-A 3.0, 2x USB-C 3.1 Gen1, 3.5mm Audio Port, 3.5mm Microphone Port, RJ45 Gigabit Ethernet
- Cable Length: 1.0m - USB-C, 1.0m - USB-C - USB-A
- Operating Systems: Windows 10, Window 8.1, Windows 7, macOS 10.x and later Chrome
- Dock to System Connection: USB 3.0 Type A, USB-C 3.1, Thunderbolt 3
- Operating Temperature: 0 to 40° C (32 to 104° F)
- Storage Temperature: -10 to 70° C (-14 to 158° F)
- Relative Humidity: 10% to 90% non-condensing - Operational / Storage
