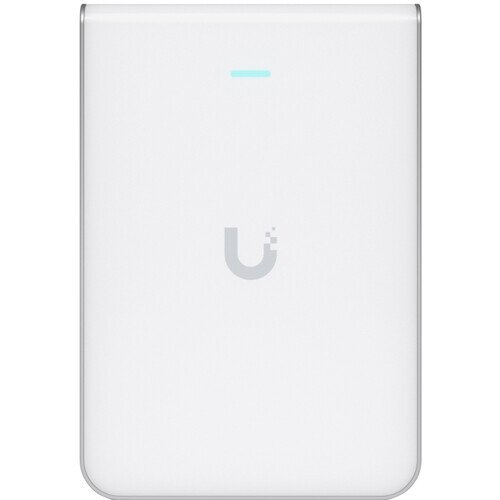

Ubiquiti UniFi U7 Pro Wall Tri-Band Wi-Fi 7 Access Point
Ubiquiti UniFi U7 Pro Wall Tri-Band Wi-Fi 7 Access Point Display Gallery Item 1
Ubiquiti UniFi U7 Pro Wall Tri-Band Wi-Fi 7 Access Point - 2 Display Gallery Item 2
Ubiquiti UniFi U7 Pro Wall Tri-Band Wi-Fi 7 Access Point - 3 Display Gallery Item 3
Ubiquiti UniFi U7 Pro Wall Tri-Band Wi-Fi 7 Access Point - 4 Display Gallery Item 4
Ubiquiti UniFi U7 Pro Wall Tri-Band Wi-Fi 7 Access Point - 5 Display Gallery Item 5
Ubiquiti UniFi U7 Pro Wall Tri-Band Wi-Fi 7 Access Point - 6 Display Gallery Item 6
Ubiquiti UniFi U7 Pro Wall Tri-Band Wi-Fi 7 Access Point - 7 Display Gallery Item 7
Ubiquiti UniFi U7 Pro Wall Tri-Band Wi-Fi 7 Access Point - 8 Display Gallery Item 8

Ubiquiti UniFi U7 Pro Wall Tri-Band Wi-Fi 7 Access Point - Shop Now!

By: Ubiquiti

Model: U7-Pro-Wall

Sku: CJCQ97F1EQ

Be the first to review this product

Sign up for price alert

PKR 74,999

& FREE Two-Day Delivery

Availability: In Stock In Stock

New

  • WiFi Standard: WiFi 7, Spatial Streams: 6, Coverage Area: 140 m² (1,500 ft²)
  • Max. Client Count: 300+, Uplink: 2.5 GbE, Mounting: Wall (Mount Included), Power Method: PoE+
  • MIMO: 6 GHz: 2 x 2 (DL/UL MU-MIMO), 5 GHz: 2 x 2 (DL/UL MU-MIMO), 2.4 GHz: 2 x 2 (DL/UL MU-MIMO)
  • Max. Data Rate: 6 GHz: 5.7 Gbps (BW320), 5 GHz: 4.3 Gbps (BW240), 2.4 GHz: 688 Mbps (BW40)
  • Antenna Gain: 6 GHz: 6 dBi, 5 GHz: 5 dBi, 2.4 GHz: 4 dBi
  • Max. TX Power: 6 GHz: 23 dBm, 5 GHz: 26 dBm, 2.4 GHz: 22 dBm
  • Max. BSSIDs: 8 per Radio
  • Supported Data Rates: 802.11be (WiFi 7): 7.3 Mbps to 5.7 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320), 802.11ax (WiFi 6/6E): 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160), 802.11ac (WiFi 5): 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160), 802.11n: 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
  • Wireless Meshing: Yes, Band Steering: Yes, 802.11v BSS Transition Management: Yes, 802.11r Fast Roaming: Yes, 802.11k Radio Resource Management (RRM): Yes Advanced Radio Management: Yes, Passpoint (Hotspot 2.0): Yes
  • Captive Hotspot Portal: Custom Branding Landing Page: Yes, Voucher Authentication: Yes, Payment-Based Authentication: Yes, External Portal Server Support: Yes, Password Authentication: Yes, Guest Network Isolation: Yes
  • Private Pre-Shared Key (PPSK): Yes, WiFi Speed Limiting: Yes, Client Device Isolation: Yes, WiFi Schedules: Yes, RADIUS over TLS (RadSec): Yes, Dynamic RADIUS-assigned VLAN: Yes
  • Max. Power Consumption: 22W, Supported Voltage Range: 44—57V DC, Networking Interface: (1) 1/2.5 GbE RJ45 port
  • Management: Ethernet Enclosure Material: Polycarbonate, aluminum Mount Material: Aluminum
  • LEDs System: White/Blue
  • Channel Bandwidth: HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240/320 (MHz), Certifications: CE, FCC, IC, Operating Frequency: US/CA: 2400 - 2472 MHz, U-NII-1: 5150 - 5250 MHz, U-NII-2A: 5250 - 5350 MHz, U-NII-2C: 5470 - 5725 MHz, U-NII-3: 5725 - 5850 MHz, U-NII-5 to U-NII-8 : 5925 - 7125 MHz, Worldwide: 2400 - 2483.5 MHz, 5150 - 5725 MHz, 5925 - 7125 MHz
  • Ambient Operating Temperature: -30 to 60° C (-22 to 140° F), Ambient Operating Humidity: 5 to 95% noncondensing
Quantity:
  • Add to Wishlist
  • Add to Compare
SKU CJCQ97F1EQ
Size No
Style No
Brand Ubiquiti
Model U7-Pro-Wall
Condition New
Weight (lbs.) 1.7100
Manufacturer's Warranty 1 Year Limited Warranty
