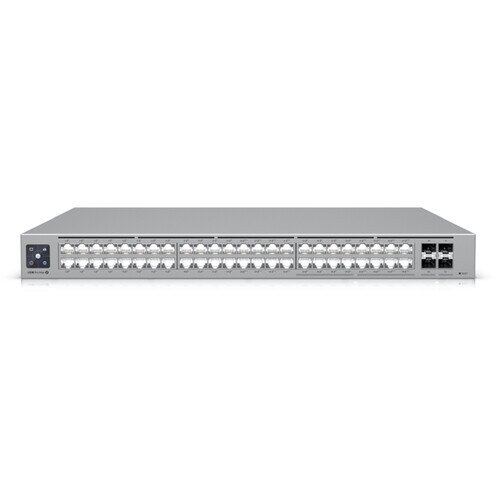

Ubiquiti Pro Max 48 PoE 48-Port 2.5G / 1G PoE++ Compliant Managed Network Switch
Ubiquiti Pro Max 48 PoE 48-Port 2.5G / 1G PoE++ Compliant Managed Network Switch Display Gallery Item 1
Ubiquiti Pro Max 48 PoE 48-Port 2.5G / 1G PoE++ Compliant Managed Network Switch - 2 Display Gallery Item 2
Ubiquiti Pro Max 48 PoE 48-Port 2.5G / 1G PoE++ Compliant Managed Network Switch - 3 Display Gallery Item 3
Ubiquiti Pro Max 48 PoE 48-Port 2.5G / 1G PoE++ Compliant Managed Network Switch - 4 Display Gallery Item 4
Ubiquiti Pro Max 48 PoE 48-Port 2.5G / 1G PoE++ Compliant Managed Network Switch - 5 Display Gallery Item 5

Grab Ubiquiti Pro Max 48 PoE 48-Port 2.5G / 1G PoE++ Compliant Managed Network Switch

By: Ubiquiti

Model: USW-Pro-Max-48-PoE

Sku: YTOU08XIH6

Be the first to review this product

Sign up for price alert

PKR 429,999

& FREE Two-Day Delivery

Availability: In Stock In Stock

New

  • Port Layout: 1 GbE RJ45: 32 (24 PoE+; 8 PoE++), 2.5 GbE RJ45: 16 (8 PoE+; 8 PoE++), 10G SFP+: 4
  • Max. PoE Output: Up to PoE++, Total PoE Availability: 720W, Redundancy: DC Power Backup
  • Layer 3: Yes, Form Factor: Rack mount (1U), Etherlighting: Yes
  • Switching Capacity: 224 Gbps, Total Non-Blocking Throughput: 112 Gbps, Forwarding Rate: 167 Mpps
  • Supported VLANs: 1,000, MAC Address Table Size: 32,000
  • L3 Table Size: ARP Entries: 12,000, IPv4 Routes: 12,000, Packet Buffer Size: 2 MB
  • DHCP Server (Local Networks): Yes, DHCP Relay: Yes
  • Inter-VLAN Routing (Local Networks): Yes, Static Routing (Local Networks): Yes
  • LACP Port Aggregation: Yes, STP & RSTP: Yes, QoS (DSCP): Yes
  • Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron): Yes, Advanced IGMP Configuration (Querier, Fast Leave, Router Port): Yes, IGMP Snooping: Yes
  • 802.1X Control: Yes, MAC-Based ACLs & Device Isolation: Yes, DHCP Snooping & Guarding: Yes
  • Egress Rate Limit: Yes, Flow Control: Yes, Storm Control: Yes
  • Multicast & Broadcast Rate Limiting: Yes, MAC Address Blocking: Yes, IP-Based ACLs & Network Isolation: Yes
  • MAC-Based Port Restriction: Yes, Port Isolation: Yes, Port Mirroring: Yes
  • Jumbo Frames: Yes, LLDP-MED: Yes
  • Voice VLAN: Yes, Loop Protection: Yes
  • PoE Ports: PoE+: 32, PoE++: 16
  • Max. PoE Wattage per Port by PSE: PoE: 15.4W, PoE+: 32W, PoE++: 64W
  • Max. Power Consumption: 100W (Excluding PoE Output), 820W (Including PoE Output), Power Method: (1) Universal input, 100—240V AC, 50/60 Hz, (1) USP RPS DC input
  • Power Input Method: AC input, Power Supply: AC/DC, internal, 870W, Supported Voltage Range: 100—240V AC, Management: Ethernet AR
  • Heat Dissipation (Excluding PoE Output): 341.2 BTU/hr, Enclosure Material: SGCC steel, Supported Rack Depth: 400~1200 mm, (15.7-47.2")
  • LCM Display: 1.3" touchscreen, Ambient Operating Temperature: -5 to 40° C (23 to 104° F), Ambient Operating Humidity: 10 to 90% noncondensing
  • Certifications: CE, FCC, IC, Etherlighting: Ethernet: Yes, SFP+: Yes
Quantity:
  • Add to Wishlist
  • Add to Compare
Style No
SKU YTOU08XIH6
Brand Ubiquiti
Model USW-Pro-Max-48-PoE
Condition New
Weight (lbs.) 17.7750
Manufacturer's Warranty 1 Year Limited Warranty
