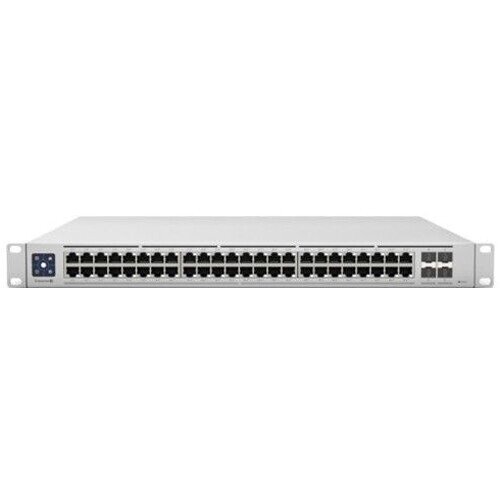

Ubiquiti Enterprise 48 PoE (Gen1) 48-Port Layer 3 Switch with 2.5 GbE PoE+ Output
Ubiquiti Enterprise 48 PoE (Gen1) 48-Port Layer 3 Switch with 2.5 GbE PoE+ Output Display Gallery Item 1
Ubiquiti Enterprise 48 PoE (Gen1) 48-Port Layer 3 Switch with 2.5 GbE PoE+ Output - 2 Display Gallery Item 2
Ubiquiti Enterprise 48 PoE (Gen1) 48-Port Layer 3 Switch with 2.5 GbE PoE+ Output - 3 Display Gallery Item 3
Ubiquiti Enterprise 48 PoE (Gen1) 48-Port Layer 3 Switch with 2.5 GbE PoE+ Output - 4 Display Gallery Item 4

Grab Ubiquiti Enterprise 48 PoE (Gen1) 48-Port Layer 3 Switch with 2.5 GbE PoE+ Output

By: Ubiquiti

Model: USW-Enterprise-48-PoE (720W)

Sku: DHDQ3UK4F9

Be the first to review this product

Sign up for price alert

PKR 509,999

& FREE Two-Day Delivery

Availability: In Stock In Stock

New

  • Port Layout: 2.5 GbE RJ45: 48 (All PoE+), (2.5G/1G/100M/10M), 10G SFP+: 4
  • Max. PoE Output: Up to PoE+, Total PoE Availability: 720W, Redundancy: DC Power Backup, Layer 3: Yes, Form Factor: Rack mount (1U)
  • Switching Capacity: 160 Gbps, Total Non-Blocking Throughput: 160 Gbps, Forwarding Rate: 238 Mpps, Supported VLANs: 1,000, MAC Address Table Size: 32,000
  • L3 Table Size: ARP Entries: 16,000, IPv4 Routes: 16,000, Packet Buffer Size: 4 MB
  • DHCP Server (Local Networks): Yes, DHCP Relay: Yes, Inter-VLAN Routing (Local Networks): Yes, Static Routing (Local Networks): Yes,
  • LACP Port Aggregation: Yes, STP & RSTP: Yes, QoS (DSCP): Yes, Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron): Yes,
  • Advanced IGMP Configuration (Querier, Fast Leave, Router Port): Yes, IGMP Snooping: Yes, 802.1X Control: Yes, MAC-Based ACLs & Device Isolation: Yes, DHCP Snooping & Guarding: Yes,
  • Egress Rate Limit: Yes, Flow Control: Yes, Storm Control: Yes, Multicast & Broadcast Rate Limiting: Yes, MAC Address Blocking: Yes, IP-Based ACLs & Network Isolation: Yes, MAC-Based Port Restriction: Yes,
  • Port Isolation: Yes, Port Mirroring: Yes, Jumbo Frames: Yes, LLDP-MED: Yes, Voice VLAN: Yes, Loop Protection: Yes,
  • PoE Ports: PoE+: 48, Max. PoE Wattage per Port by PSE: PoE+: 32W
  • Max. Power Consumption: 150W (Excluding PoE Output), 870W (Including PoE Output), Power Method: (1) Universal input, 100—240V AC, 50/60 Hz, (1) USP RPS DC input, Power Input Method: AC input, Power Supply: AC/DC, internal, 870W, Supported Voltage Range: 100—240V AC
  • Management: Ethernet, AR, Heat Dissipation (Excluding PoE Output): 511.8 BTU/hr, Enclosure Material: SGCC steel, Mount Material: SGCC steel
  • Supported Rack Depth: 600 - 1,200 mm, (23.6- 47.2" ), LCM Display: 1.3" touchscreen, ESD/EMP Protection: Air: 16kV, contact: 12kV, Ambient Operating Temperature: -5 to 40° C (23 to 104° F), Ambient Operating Humidity: 10 to 90% noncondensing, NDAA Compliant: Yes, Certifications: CE, FCC, IC, Anatel
  • Application Requirements: UniFi Network: Version 6.2.26 and later
Quantity:
  • Add to Wishlist
  • Add to Compare
Style No
SKU DHDQ3UK4F9
Brand Ubiquiti
Model USW-Enterprise-48-PoE (720W)
Condition New
Weight (lbs.) 17.4200
Manufacturer's Warranty 1 Year Limited Warranty
