Ubiquiti EdgeSwitch 10X Switch Price in Pakistan

By: Ubiquiti

Model: ES-10X

Sku: OAG19P6XRB

Be the first to review this product

Sign up for price alert

Availability: Out of stock New

Availability: Out of stock

  • (8) Gigabit RJ45 Ports
  • (2) SFP Ports
  • Powered by 24V Passive PoE or External AC/DC Adapter
  • Wall- or Rack-Mountable
  • Support PoE Passthrough on Port 8 (software-selectable)
  • Networking Interfaces: (8) 10/100/1000 Mbps RJ45 Ports, (2) 1 Gbps SFP Ports
  • Management Interface: Ethernet In-Band
  • Total Non-Blocking Throughput: 10 Gbps
  • Switching Capacity: 20 Gbps
  • Forwarding Rate: 14.88 Mpps
  • Max. Power Consumption
  • (Excluding PoE Output): 8W
  • Power Method: 24VDC, 1A or 24V Passive PoE
  • Supported Voltage Range: 9 -30VDC
  • Power Supply: 24VDC, 1A Power Adapter (Included) or 24V Passive PoE
  • ESD/EMP Protection: Air: ± 24 kV, Contact: ± 24 kV
  • Shock and Vibration: ETSI300-019-1.4 Standard
  • Operating Temperature: -10 to 50° C (14 to 122° F)
  • Operating Humidity: 5 to 95% Noncondensing
  • PoE Interface: 24VDC Passive PoE (Pins 4, 5+; 7, 8-)
  • Max. Passive PoE Wattage per Port: 15W
  • 24V Passive PoE Voltage Range: 24V
Stock Request Notify When Available
  • Add to Wishlist
  • Add to Compare

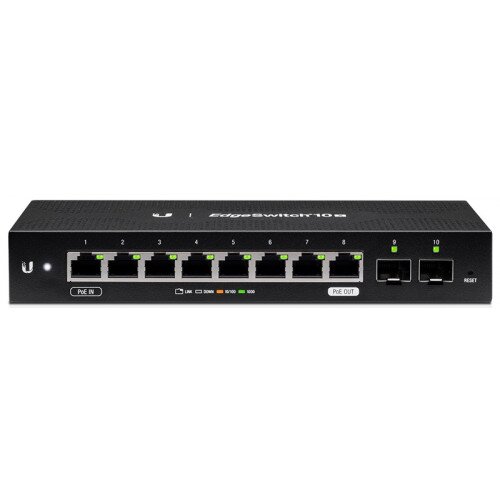

Cost-effective WISP switch with (8) Gigabit RJ45 ports, (2) SFP ports, and PoE passthrough support.

Ideal for WISP applications, the EdgeSwitch 10X is our most affordable managed switch with SFP ports. Eight Gigabit RJ45 ports offer copper connectivity with PoE input on port 1 and PoE passthrough on port 8. Two SFP ports offer fiber connectivity. The browser-based configuration interface offers intuitive control using a redesigned UI. Management is also available through UISP.

In the Box

  • Ubiquiti EdgeSwitch 10X Switch
  • Wall Mount Screws (Qty. 2)
  • Wall Mount Anchors (Qty. 2)
  • Ground Screw
  • Power Adapter (24V, 1A)
  • Cable Clip
