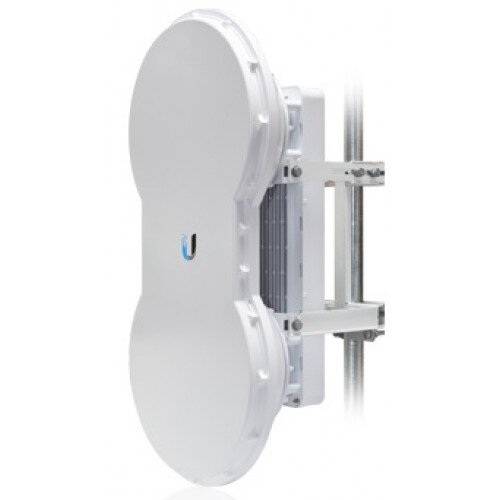

Ubiquiti airFiber 5U
Ubiquiti airFiber 5U Display Gallery Item 1
Ubiquiti airFiber 5U - 2 Display Gallery Item 2
Ubiquiti airFiber 5U - 3 Display Gallery Item 3
Ubiquiti airFiber 5U - 4 Display Gallery Item 4
Ubiquiti airFiber 5U - 5 Display Gallery Item 5

Ubiquiti airFiber 5U Price in Pakistan

By: Ubiquiti

Model: AF-5U US

Sku: EOULXV9TUL

Be the first to review this product

Sign up for price alert

PKR 369,999

& FREE Two-Day Delivery

Availability: In Stock In Stock

New

  • Supports high-band 5 GHz frequencies.
  • INTERFACE: Data Port: (1) 10/100/1000 Ethernet Port, Configuration Port: (1) 10/100 Ethernet Port, Auxiliary Port: (1) RJ-12, Alignment Tone Port
  • INTEGRATED SPLIT ANTENNA: TX Gain: 23 dBi, RX Gain: 23 dBi, Beamwidth: 6°, Front-to-Back Ratio: 70 dB, Polarity: Dual-Slant Polarization, Cross-Polarity Isolation: > 28 dB
  • RADIO FREQUENCY: GPS: GPS Clock Synchronization, EIRP: ~33 dBm (FCC/IC), ~20 dBm (CE), Frequency Accuracy: ±2.5 ppm without GPS Synchronization, ±0.2 ppm with GPS Synchronization, Channel Bandwidth: 100 MHz
  • Modulation: 64QAM MIMO, 16QAM MIMO, QPSK MIMO, QPSK SISO, ¼x QPSK SISO
  • Operating Frequency: 5725 - 5850 MHz (FCC 15.247, IC RSS 21) 5725 - 5875 MHz (ETSI EN 302 502) 5725 - 6200 MHz (Other Regions)
  • Maximum Power Consumption: 40 W
  • Power Supply: 50V, 1.2A PoE GigE Adapter (Included)
  • Power Method: Passive Power over Ethernet (42-58VDC)
  • Certifications: CE, FCC, IC
  • Mounting: Pole Mount Kit (Included)
  • Wind Loading: 194 lbf 125 mph
  • Wind Survivability: 125 mph
  • Operating Temperature: -40 to 55°C (-40 to 131° F)
  • LEDs: (12) Status LEDs: Data Port Link/Activity, Data Port Speed, Management Port Link/Activity, Management Port Speed, GPS Synchronization, Master/Slave, Link Status, Modulation Mode 0.25x to 4x, 6x, 8x, Overload, Remote and Local Displays (Calibrated Signal Strength)
  • SYSTEM: Maximum Throughput: 1.0+ Gbps, Maximum Range: 100+ km (Dependent on Regulatory Region), Packets per Second: 1+ Million, Encryption: 128-Bit AES, Forward Error Correction: 164/205, Cyclic Prefix: 1/16 Fixed, Uplink/Downlink Ratio: 50% Fixed, Radio Frame Synchronization: GPS, Dynamic Frequency Selection: CE, (FCC/IC Not Applicable)
Quantity:
  • Add to Wishlist
  • Add to Compare

Revolutionary Wireless Technology

Introducing airFiber, a truly revolutionary Point-to-Point wireless platform from Ubiquiti Networks. Housed in a compact, highly efficient form factor, airFiber delivers amazing wireless gigabit+ performance, low latency, and long range. airFiber ushers in a new era in price-disruptive wireless technology ideal for carrier backhaul, building-to-building enterprise use, or public safety applications.

In the Box

  • Ubiquiti airFiber 5U Wireless Access Point
  • 50V, 1.2A PoE GigE Adapter
  • Pole Mount Kit
