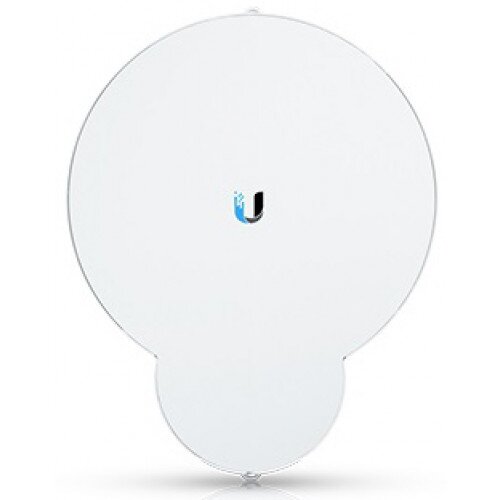

Ubiquiti airFiber HD 24 GHz Bridge Price in Pakistan

By: Ubiquiti

Model: AF-24HD-US

Sku: 1U7WJ7YZ69

Availability: Out of stock New

Availability: Out of stock

  • Operating Frequency: 24.05 - 24.25 GHz
  • Maximum Power Consumption: 50 W
  • Power Method: Passive Power over Ethernet (42-58VDC)
  • Wind Loading: 170 lbf 125 mph
  • Wind Survivability: 125 mph
  • Operating Temperature: -40 to 55? C (-40 to 131? F)
  • Data Port: (1) 10/100/1000 Ethernet Port
  • Configuration Port: (1) 10/100 Ethernet Port
  • Auxiliary Port: (1) RJ-12, Alignment Tone Port
  • Maximum Throughput: 2 Gbps
  • Maximum Range: 20+ km
  • GPS: GPS Clock Synchronization
  • EIRP: ~33 dBm (FCC/IC), ~20 dBm (CE)
  • Frequency Accuracy: ?2.5 ppm without GPS Synchronization ?0.2 ppm with GPS Synchronization
  • Operating Channels: 24.1 GHz, 24.2 GHz
  • Polarity: Dual-Slant Polarization
Stock Request Notify When Available

Revolutionary Wireless Technology

Introducing airFiber, a truly revolutionary Point-to-Point wireless platform from Ubiquiti Networks. Housed in a compact, highly efficient form factor, airFiber delivers amazing wireless gigabit+ performance, low latency, and long range. airFiber ushers in a new era in price-disruptive wireless technology ideal for carrier backhaul, building-to-building enterprise use, or public safety applications.

Revolutionary Performance

Featuring the world's best unlicensed-band spectral efficiency at 15.9 bps/Hz, the airFiber24 HD supports the dense modulation rates, up to 256QAM, that are required for high data rates, up to 2 Gbps.

Proven Links: 20+ km

The airFiber24 HD features the most powerful automatic compensation for path loss degradation due to rain fade, so it provides the best range - up to 20+ km - among 24 GHz products and allows for constellation threshold extension.

Low-Latency Carrier Backhaul

The airFiber24 HD supports FDD (Frequency Division Duplexing) in full-duplex mode for 0.2 millisecond latency, resulting in increased efficiency for carrier-class network backhauls.

24 GHz Unlicensed Band

The airFiber24 HD operates in worldwide, license-free, 24 GHz frequencies. Users can deploy airFiber24HD almost anywhere they choose (subject to local country regulations).

In the Box

  • Ubiquiti airFiber HD 24 GHz Bridge
  • Pole Mount Bracket
  • Pole Clamps (Qty. 2)
  • GPS Antenna Mount
  • Carriage Bolts (Qty. 4)
  • Flat Washers (Qty. 4)
  • Split Lock Washers (Qty. 4)
  • Hex Nuts (Qty. 4)
  • Metal Strap
  • External GPS Antenna
  • Zip Ties (Qty. 3)
  • Gigabit PoE Adapter (50V, 1.2A)
  • Power Cord
