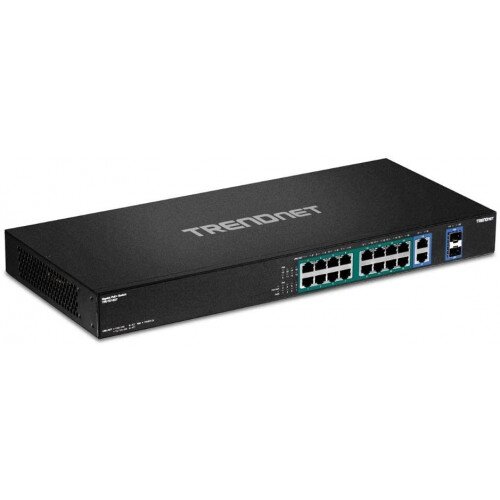

TRENDnet's 18-Port Gigabit High Power PoE+ Switch, model TPE-TG182F, reduces equipment and installation costs by delivering data and power over existing Ethernet cables. This rack mountable ,high-power PoE switch provides 16 gigabit PoE+ ports with a total PoE power budget of 440W. It also features two additional shared RJ-45 or SFP gigabit ports. The TPE-TG182F high-power PoE switch supplies up to 30W of power per port for devices such as high-power wireless access points, PTZ (Pan/Tilt/Zoom) IP cameras, and VoIP phone systems.
High Power PoE
The 440W total PoE power budget on this high-power PoE switch supplies 16 Power over Ethernet devices with up to 30W per port.
Gigabit Ports
Eighteen gigabit ports provide a 36Gbps switching capacity to support edge network installations.
Housing Design
Sturdy 19” rack mountable metal housing with included mounting brackets.
Jumbo Frame
Sends larger packets, or Jumbo Frames (up to 9KB), for increased performance
LED Indicators
LED indicators convey port status
- Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at
- Device Interface: 16 x Gigabit PoE+ ports, 2 x Shared Gigabit ports (RJ-45 or SFP), LED indicators
- Data Transfer Rate: Ethernet: 10Mbps (half duplex), 20Mbps (full duplex), Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex), Gigabit: 2000Mbps (full duplex)
- Performance: Switch Fabric: 36Gbps, RAM Buffer: 512KB, MAC Address Table: 8K entries, Forwarding Rate: 26.78Mpps (64-byte packet size), Jumbo Frames: 9KB
- Power: Input: 110-240V AC, 50/60Hz, internal power supply, Max. Consumption: 18W (Max. without PD)
- PoE: PoE budget: 440W, Pin 1, 2 for power+ and pin 3, 6 for power- (mode A)
- Fan/Acoustics: Quantity: 1, Noise Level: 56 dBA (max.)
- Operating Temperature: 0° – 40° C (32° – 104° F)
- Operating Humidity: Max. 90% non-condensing
- Certifications: CE, FCC, ETL
