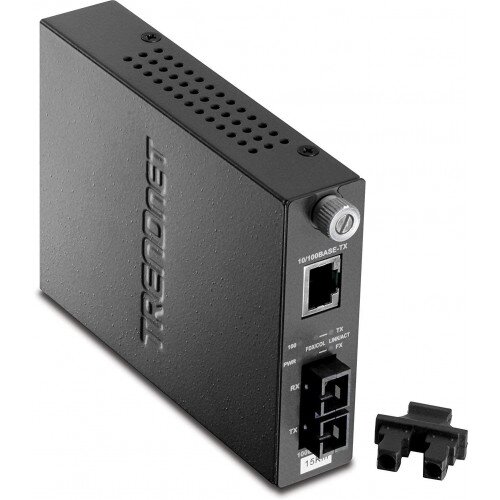

TRENDnet 100Base-TX to 100Base-FX Single Mode SC Fiber Converter (15KM, 9.3Miles)
TRENDnet 100Base-TX to 100Base-FX Single Mode SC Fiber Converter (15KM, 9.3Miles) Display Gallery Item 1
TRENDnet 100Base-TX to 100Base-FX Single Mode SC Fiber Converter (15KM, 9.3Miles) - 2 Display Gallery Item 2

Grab TRENDnet 100Base-TX to 100Base-FX Single Mode SC Fiber Converter (15KM, 9.3Miles)

By: TRENDnet

Model: TFC-110S15

Sku: 5U2UQF3X8E

Be the first to review this product

Sign up for price alert

PKR 25,299

& FREE Standard Delivery

Availability: In Stock In Stock

New

  • Standard: IEEE802.3 10Base-T, IEEE 802.3u 100Base-TX and 100Base-FX
  • Supported Frame Size: Standard Ethernet up to 1518bytes
  • Network Media: 100Base-TX: Cat. 5 EIA/TIA-568 100-ohm UPT/STP, up to 100m, 100Base-FX: Single-mode fiber optic cable 9/125 µm or 10/125 µm, up to 15km
  • Protocol: CSMA/CD
  • Ports: 10/100Base-TX, 100Base-FX (SC-type)
  • Dip Switch: TX: duplex mode, auto negotiation or manual, speed, LLCF (enable/disable), FX: duplex mode, LLR (enable/disable), LLCF
  • Transfer Rate: 100Mbps (half-duplex), 200Mbps (full-duplex)
  • Diagnostic LEDs: Per Unit: power, Per Port: link/activity, full-duplex/collision, speed (on fiber port)
  • Power Adapter: 7.5V DC, 1A external power adapter
  • Power Consumption: 1.8 Watts (max)
  • Temperature: Operating: 0° ~ 40° C (32° ~ 104° F), Storage: -25° ~ 70° C (-13° ~ 158° F)
  • Humidity: Max. 90% (non-condensing)
  • Certification: FCC,CE
  • Sensitivity: -32 ~ 0
  • Power: 12
  • Distance: 15km
Quantity:
  • Add to Wishlist
  • Add to Compare

The TFC-110S15 Fiber Converter works with the TFC-1600 chassis system or as a standalone unit. This converter is a Single Mode SC-Type fiber converter spanning distances up to 15km (9.3 miles). Ports include 1 x 10/100Base-TX (RJ-45) port and 1 x 100Base-FX fiber port (SC-Type).

  • Wall mountable
  • SC type single-mode fiber port connects over distances of up to 15km (9.3 miles)
  • 10/100Base-TX port supports Auto-Negotiation, Auto-MDIX and Full-Duplex mode
  • Functions as a stand alone converter or with the TFC-1600 fiber chassis
  • Compliant with IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX / 100Base-FX standards
  • 1 x 10/100Base-TX auto-negotiation RJ-45 port
  • Auto-negotiation 10/100Mbps connection speed and Half/Full-duplex mode on TX port
  • Auto MDIX for 10/100Base-TX port
  • 1 x 100Mbps fiber port with single-mode SC-type connector
  • Status LED indicators for Power, Link/Activity, Full-Duplex, and Speed
  • Dip-switch for full and half duplex selection on fiber port
  • Optional 19” system chassis with redundant power supply (TFC-1600), holds up to 16 TFC series Media Converters

In the Box

  • TRENDnet 100Base-TX to 100Base-FX Single Mode SC Fiber Converter (15KM, 9.3Miles)
  • Power Adapter (5V, 1A)
  • Multi-Language Quick Installation Guide
