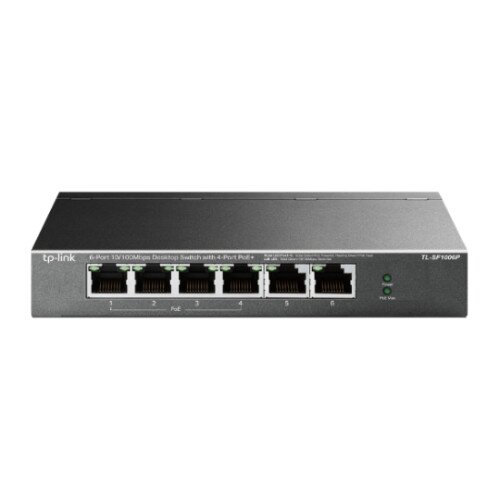

TP-Link TL-SF1006P 6-Port 10/100Mbps Desktop Switch with 4-Port PoE+
TP-Link TL-SF1006P 6-Port 10/100Mbps Desktop Switch with 4-Port PoE+ Display Gallery Item 1
TP-Link TL-SF1006P 6-Port 10/100Mbps Desktop Switch with 4-Port PoE+ - 2 Display Gallery Item 2
TP-Link TL-SF1006P 6-Port 10/100Mbps Desktop Switch with 4-Port PoE+ - 3 Display Gallery Item 3
TP-Link TL-SF1006P 6-Port 10/100Mbps Desktop Switch with 4-Port PoE+ - 4 Display Gallery Item 4
TP-Link TL-SF1006P 6-Port 10/100Mbps Desktop Switch with 4-Port PoE+ - 5 Display Gallery Item 5
TP-Link TL-SF1006P 6-Port 10/100Mbps Desktop Switch with 4-Port PoE+ - 6 Display Gallery Item 6
TP-Link TL-SF1006P 6-Port 10/100Mbps Desktop Switch with 4-Port PoE+ - 7 Display Gallery Item 7
TP-Link TL-SF1006P 6-Port 10/100Mbps Desktop Switch with 4-Port PoE+ - 8 Display Gallery Item 8

Grab TP-Link TL-SF1006P 6-Port 10/100Mbps Desktop Switch with 4-Port PoE+

By: TP-Link

Model: TL-SF1006P

Sku: 3MFFPUFZYI

Be the first to review this product

Sign up for price alert

PKR 9,999

& FREE Two-Day Delivery

Availability: In Stock In Stock

New

  • 67 W PoE Budget
  • Plug and Play
  • Transmission Distance up to 250 m
  • One-Click Priority Mode
  • Intelligent Power Management
  • Durable Metal Casing
  • Interface: 6× 10/100 Mbps RJ45 Ports (ports 1–4 support 802.3af/at PoE+), AUTO Negotiation, AUTO MDI/MDIX
  • Network Media: 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m), EIA/TIA-568 100Ω STP (maximum 100m), 100BASE-TX: UTP category 5, 5e cable (maximum 100m), EIA/TIA-568 100 STP (maximum 100m)
  • Fan Quantity: Fanless
  • Physical Security Lock: Yes
  • External Power Supply: External Power Adapter (Output: 54 V DC / 1.3 A)
  • Packet Forwarding Rate: 892.8 Kpps
  • PoE Ports (RJ45): Standard: 802.3 af/at compliant, PoE Ports: Ports 1–4, Power Supply: 67 W
  • Mac Address Table: 2K
  • Jumbo Frame: 2 KB
  • Switching Capacity: 1.2 Gbps
  • Max Power Consumption: 1.9 W (with no PD connected), 74 W (with 67 W PD connected)
  • Max Heat Dissipation: 6.5 BTU/h(with no PD connected), 252.3 BTU/h(with 67 W PD connected)
  • Transmission Method: Store-and-forward
  • Advanced Functions: Compatible with IEEE 802.3af/at compliant power devices (PDs), Extend mode switch (Ports 1–4), Priority mode switch (Ports 1–2), MAC address auto-learning and auto-aging, IEEE802.3x flow control for full-duplex mode and backpressure for half-duplex mode
  • Environment: Operating Temperature: 0–40 ℃ (32–104 ℉), Storage Temperature: -40–70 ℃ (-40–158 ℉), Operating Humidity: 10–90% RH non-condensing, Storage Humidity: 5–90% RH non-condensing
Quantity:
  • Add to Wishlist
  • Add to Compare
  • 6× 10/100 Mbps RJ45 ports
  • 4× PoE+ ports transfer data and power on individual cables
  • Works with IEEE 802.3af/at compliant PDs
  • Up to 250m data and power transmitting range under Extend Mode
  • Priority Mode ensures high priority of ports 1–2 to guarantee the quality of sensitive application
  • Supports PoE Power up to 30 W for each PoE port
  • Supports PoE Power up to 67 W for all PoE ports
  • Plug and play with no configuration required

Dedicated 4-Port PoE+ Switch (67 W Budget) for Numerous Applications

Compliance with the 802.3af/at PoE standard supports up to 30 W on each PoE port. The total 67 W PoE power budget* for the 4× PoE ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.

Ideal for IP Surveillance —Up to 250 m Transmissions

With extend mode, the PoE transmission distance reaches up to 250 m—perfect for IP Camera deployment in large areas.

The speed of the ports in extend mode will downgrade to 10 Mbps. The actual transmission distance may vary due to power consumption of PoE-powered devices or the cable quality and type.

Intelligent Power Management

When total power consumption exceeds 67 W, the intelligent power management will cut the lower priority port power. This ensures the high priority port’s power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged.

Durable Metal Casing

The interior components of TL-SF1006P are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SF1006P delivers switching performance you can depend on.

In the Box

  • TP-Link TL-SF1006P 6-Port 10/100Mbps Desktop Switch with 4-Port PoE+
  • Power Adapter
  • Installation Guide
