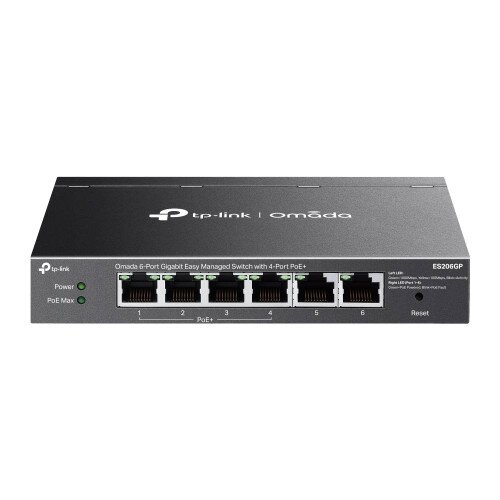

TP-Link Omada 6-Port Gigabit Easy Managed Switch with 4-Port PoE+ (ES206GP)
TP-Link Omada 6-Port Gigabit Easy Managed Switch with 4-Port PoE+ (ES206GP) Display Gallery Item 1
TP-Link Omada 6-Port Gigabit Easy Managed Switch with 4-Port PoE+ (ES206GP) - 2 Display Gallery Item 2
TP-Link Omada 6-Port Gigabit Easy Managed Switch with 4-Port PoE+ (ES206GP) - 3 Display Gallery Item 3
TP-Link Omada 6-Port Gigabit Easy Managed Switch with 4-Port PoE+ (ES206GP) - 4 Display Gallery Item 4
TP-Link Omada 6-Port Gigabit Easy Managed Switch with 4-Port PoE+ (ES206GP) - 5 Display Gallery Item 5

Grab TP-Link Omada 6-Port Gigabit Easy Managed Switch with 4-Port PoE+ (ES206GP)

By: TP-Link

Model: ES206GP

Sku: QTNKLUROV1

Be the first to review this product

Sign up for price alert

PKR 13,999

& FREE Two-Day Delivery

Availability: In Stock In Stock

New

  • Interface: 6× 10/100/1000 Mbps RJ45 Ports (Ports 1–4 Support 802.3af PoE and 802.3at PoE+), Auto-Negotiation/Auto MDI/MDIX
  • Fan Quantity: Fanless, Installation: Desktop, Wall Mount, Physical Security Lock: Yes
  • Power Supply: DC Power Adapter (Output: 53.5VDC / 1.31A) PoE Ports (RJ45): Standard: 802.3af PoE and 802.3at PoE+ compliant, PoE Ports: 4 ports, PoE Budget: 65W available for all PoE+ ports, 30W max per port, Fast PoE & Perpetual PoE, PoE Auto Recovery, Up to 250m PoE transmission distance**
  • Surge Protection: 6kV
  • Switching Capacity: 12 Gbps, Packet Forwarding Rate: 7.4 Mpps, MAC Address Table: 8K, Packet Buffer Memory: 4 Mbit, Jumbo Frame: 15 KB
  • Quality of Service: Port-based/802.1p/DSCP QoS, 8 Priority Queues, Priority Schedule Mode, WRR (Weighted Round Robin), Queue Weight Config, Bandwidth Control, Port-Based Rating Limit, Storm Control, Multiple Control Modes (kbps/pps), Broadcast/Multicast/Unknown-Unicast Control
  • L2 Features: Static Link Aggregation, Loop Prevention / Loopback Detection, Flow Control, 802.3x Flow Control, Mirroring, Port Mirroring, One-to-One, Many-to-One, Ingress/Egress/Both, Port Statistics, Port Mirror Status, Traffic Statistics, 802.1ab LLDP
  • L2 Multicast: IGMP Snooping, IGMP v1/v2/v3 Snooping, Fast Leave, VLAN: MTU VLAN, Port-Based VLAN, 802.1Q Tag VLAN, Max 32 VLAN Groups, 4K VID, Transmission Method: Store-And-Forward
  • Omada App: Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
  • Centralized Management: Omada Cloud-Based Controller, Omada Hardware Controller, Omada Software Controller, Cloud Access: Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
  • Zero-Touch Provisioning: Yes. Requires the use of Omada Cloud-Based Controller Management Features: Web-based GUI, DHCP Client, Cable Diagnostics, Automatic Device Discovery, Batch Configuration, Batch Firmware Upgrading, Unified Configuration
  • Certification: FCC, CE, RoHS
  • Environment: Operating Temperature: -5℃~40℃ (23℉~104℉), Storage Temperature: -40℃~70℃ (-40℉~158℉), Operating Humidity: 10%~90% non-condensing, Storage Humidity: 5%~90% non-condensing
Quantity:
  • Add to Wishlist
  • Add to Compare
  • 6× 10/100/1000Mbps RJ45 ports (4× 802.3af/at-compliant PoE+)
  • 65W Power Budget, with up to 30W for each PoE port*
  • Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
  • Centralized Cloud Management via the web or the Omada app
  • Up to 250m PoE**, QoS, PoE Auto Recovery, and Port Isolation for reliable surveillance networking
  • Automatic Loop Prevention, VLAN, and IGMP Snooping
  • Fanless design for silent operation
  • Durable metal casing and desktop/wall mounting design

Omada Cloud Essentials — A Free and Easy Cloud-Based Network Management

Omada Cloud Essentials is a free, easy-to-use version of the Omada Cloud-based Controller. It provides cloud-based centralized management and monitoring for the Omada networking system, covering access points, switches, and gateways, ideal for surveillance networks and small businesses.

  • Lifetime Free Cloud without Any Additional Fees
  • Exists Entirely in the Cloud. No Hardware or Software Controller Needed
  • Cloud Centralized Management for Multiple Sites
  • Access Anytime via Omada App or Web
  • Easy Setup, Use, and Maintenance
  • Unlimited Management Scale
  • Zero-Touch Provisioning (ZTP) without Unboxing
  • Seamlessly Upgrade to Omada Cloud Standard with a Subscription

Abundant Functions for Reliable Surveillance Networking

  • Transmission Distance up to 250 m**
  • Priority Video Quality Guaranteed
  • Secure Traffic Separation via Port Isolation
  • PoE Auto Recovery

Multiple Application Scenarios

Surveillance: Works with IP Cameras, Wi-Fi Coverage: Works with Access Points, Wired Connections: Works with Non-PoE Devices such as PCs and Printers

Compact and Durable Metal Casing, Featuring Desktop/Wall Mounting and a Fanless Design

In the Box

  • TP-Link Omada 6-Port Gigabit Easy Managed Switch with 4-Port PoE+ (ES206GP)
  • Power Adapter
  • Power Cord
  • Rubber Feet
  • Installation Guide
